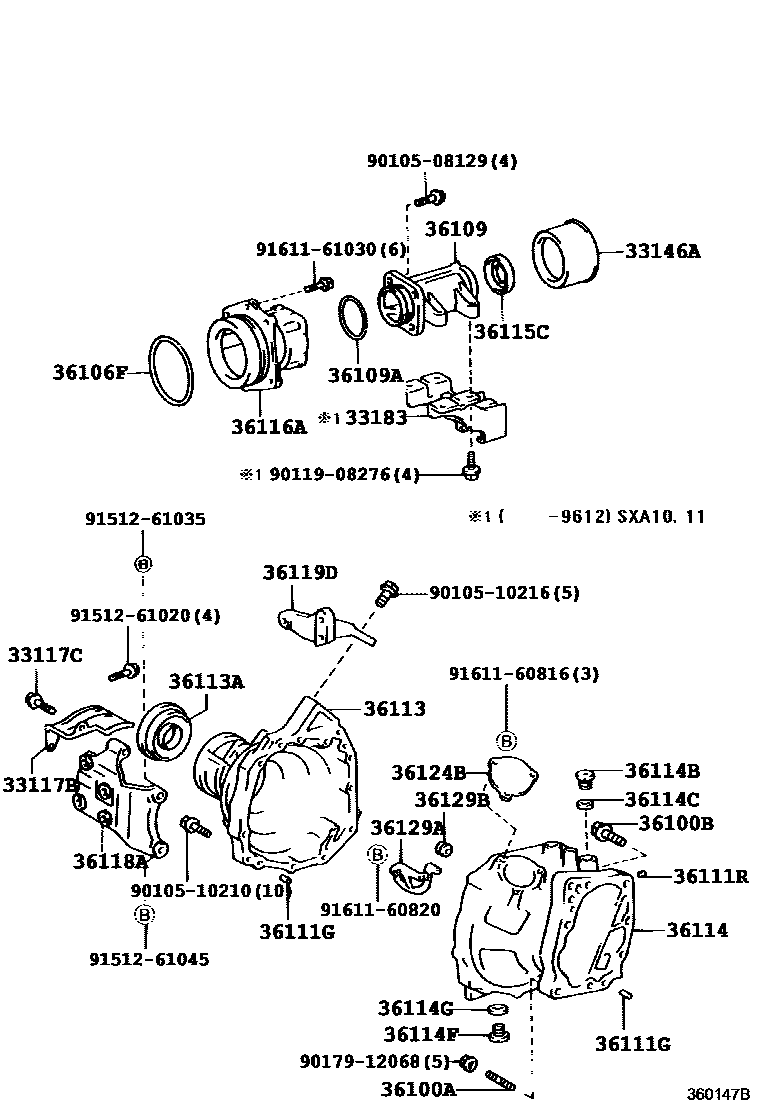

TRANSFER CASE & EXTENSION HOUSING
33117BPROTECTOR, TRANSFER CASE
33117CBOLT(FOR TRANSFER CASE PROTECTOR)
sub91641-H0820
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33183DAMPER, TRANSFER DYNAMIC
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=27 & 27,L=75
S=22 & 22,L=56
S=22 & 22,L=69
S=22 & 22,L=74
36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)
*12-1.25PX52-30
*12-1.25PX204-30
*12-1.25PX62-30
36106FRING, O (FOR TRANSFER PINION BEARING CAGE)
36109HOUSING SUB-ASSY, TRANSFER EXTENSION
36109ARING, O (FOR TRANSFER EXTENSION HOUSING)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
L=24,OD=12
L=21.0
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36113CASE, TRANSFER, RH
36113ASEAL, OIL (FOR TRANSFER CASE RH)
36114CASE, TRANSFER, LH
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36116ACAGE, TRANSFER PINION BEARING
36118APLATE, TRANSFER STIFFENER, RH
36119DPLATE, TRANSFER STIFFENER, CENTER
36124BCOVER, TRANSFER INSPECTION HOLE
36129ATUBE, TRANSFER OIL
36129BCUSHION (FOR TRANSFER OIL TUBE)
9010508129
main90105-08129
9010510210
main90105-10210
9010510216
main90105-10216
9011908276
main90119-08276
9017912068
main90179-12068
9151261020
main91512-61020
9151261035
main91512-61035
9151261045
main91512-61045
9161160816
main91611-60816
9161160820
main91611-60820
9161161030
main91611-61030
36 parts on this diagram · 2 diagrams in section
