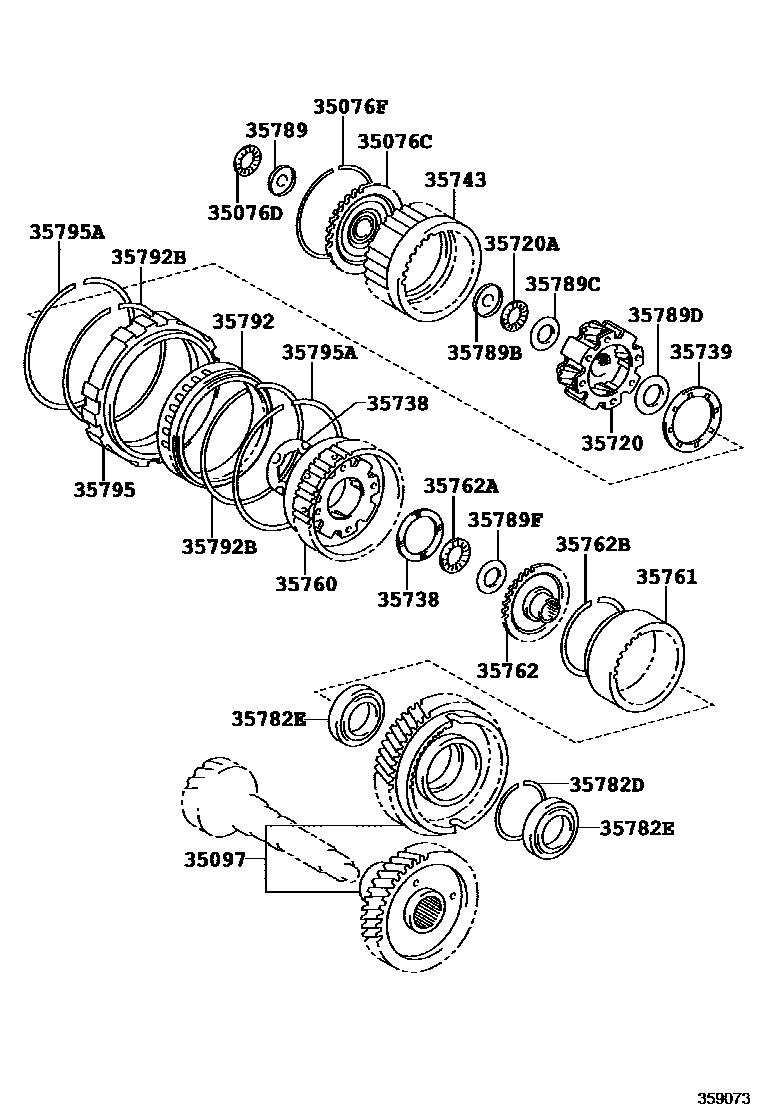

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A540H 0002 1A241E 0003 1A247E

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-12020iSXA15,16..ATM199709

main35076-32011iSXA11..ATM199511-199709

main35076-32030iSXA10,11..ATM199602-199709

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-22001iSXA11,15,16..ATM199511-199709

main90374-25007iSXA15,16..ATM199709-199909

sub90374-25009

main90374-25009iSXA15,16..ATM199909

35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)

main90521-99014iSXA1#..ATM199511

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-12050iSXA15,16..ATM199709

main35097-20060iSXA15,16..ATM199602-199709

main35097-32020iSXA10,11..ATM199511

35720GEAR ASSY, FRONT PLANETARY

main35720-17010iSXA1#..ATM199511

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-22001iSXA11,15,16..ATM199511-199709

main90374-22004iSXA15,16..ATM199709-199909

sub90374-22009

main90374-22009iSXA15,16..ATM199909

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-32010iSXA15,16..ATM199602

main35738-32030iSXA10,11..ATM199511

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-32011iSXA1#..ATM199511

35743GEAR, FRONT PLANETARY RING

main35743-32040iSXA1#..ATM199511

35760GEAR ASSY, REAR PLANETARY

main35760-32010iSXA15,16..ATM199602

main35760-32030iSXA10,11..ATM199511

35761GEAR, REAR PLANETARY RING

main35761-32010iSXA11,15,16..ATM199511-199709

35762FLANGE, REAR PLANETARY RING GEAR

main35762-32010iSXA15,16..ATM199602-199709

main35762-32030iSXA10,11..ATM199511

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-24002iSXA11,15,16..ATM199511-199709

35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90521-90001iSXA11,15,16..ATM199511-199709

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90521-67001iSXA10,11..ATM199511

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-40077iSXA10,11..ATM199511

main90369-40006iSXA15,16..ATM199709

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-12040iSXA15,16..ATM199709

main35789-32050iSXA10,11..ATM199511-199709

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-32040iSXA10,11..ATM199511-199709

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-32060iSXA1#..ATM199511

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-32070iSXA10,11..ATM199511-199709

35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-32080iSXA11,15,16..ATM199511-199709

35792CLUTCH, 1 WAY, NO.2

main35792-20020iSXA15,16..ATM199602

main35792-32011iSXA10,11..ATM199511

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-99010iSXA1#..ATM199511

35795RACE, 1 WAY CLUTCH OUTER

main35795-12020iSXA1#..ATM199908

main35795-32010iSXA1#..ATM199511-199908

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90521-99011iSXA1#..ATM199511

25 parts on this diagram · 3 diagrams in section
