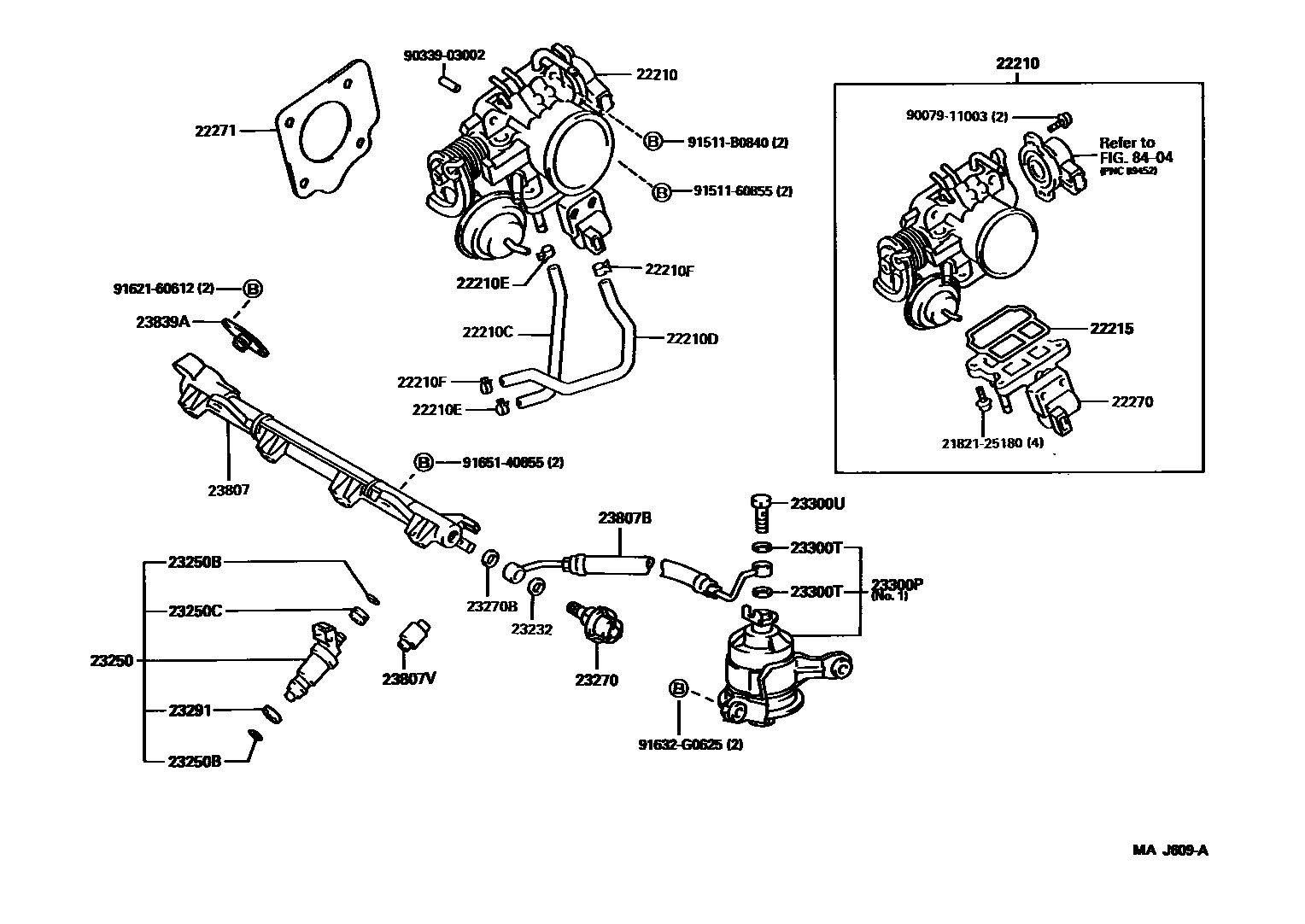

FUEL INJECTION SYSTEM
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
sub96135-51300
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
sub96135-51300
22215GASKET, THROTTLE BODY COVER
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
CALIFORNIA SPEC
23250BRING, O(FOR FUEL INJECTOR)
CALIFORNIA SPEC
CALIFORNIA SPEC
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
sub23207-20011
23270BGASKET(FOR PULSATION DAMPER HOSE)
23291INSULATOR, INJECTOR VIBRATION
CALIFORNIA SPEC
23300PFILTER, FUEL(FOR EFI)
NO.1
NO.2
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23807PIPE SUB-ASSY, FUEL DELIVERY
sub23814-74080
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23839APLUG, FUEL PIPE, NO.1
8404
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911003
main90079-11003
9033903002
main90339-03002
9151160855
main91511-60855
91511B0840
main91511-B0840
9162160612
main91621-60612
91632G0625
main91632-G0625
9165140855
main91651-40855
31 parts on this diagram · 3 diagrams in section
