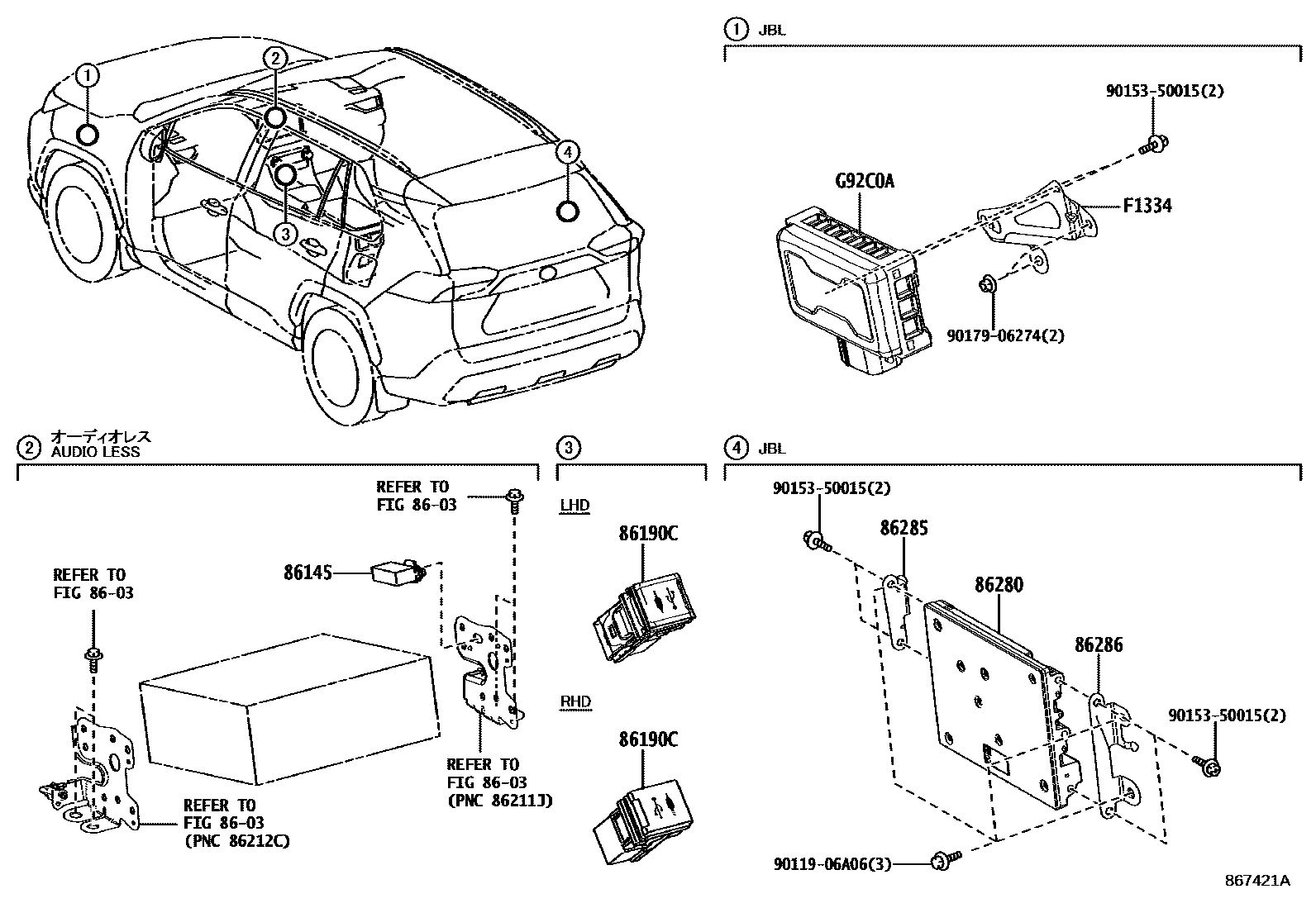

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

8603

86145CONNECTOR, ANTENNA MALE

main86145-52010iMXAA52..G..EUR202210

main86145-52010iAXAH52..X..GEN;AXAH54..P..GEN202112-202310

EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER(AUDIO LESS)

main86145-52010iAXAH52..X..GEN;AXAH54..P..GEN202112-202310

AUDIO-6SPEAKER(AUDIO LESS)

main86145-52010iAXAH52..RHD..(G,P)..EUR202112-202210

AZERBAIJAN,GEORGIA SPEC&AUDIO-4SPEAKER(AUDIO LESS)

main86145-52010iAXAH52..RHD..(G,P)..EUR202112-202210

EXCEPT WVTA COUNTRY&AUDIO-4SPEAKER(AUDIO LESS)

main86145-52010iAXAH52..RHD..(G,P)..EUR202112-202210

UKRAINE,MOLDOVA SPEC&AUDIO-4SPEAKER(AUDIO LESS)

86190CADAPTER ASSY, STEREO JACK, NO.1

main00000-00000iAXAH52..X..GEN;AXAH54..P..GEN;MXAA52..RHD..EUR202112-202210

AUDIO-4SPEAKER(AUDIO LESS),NOT APPLICABLE

main00000-00000iAXAH52,AXAL52,MXAA54..LHD..G..EUR;AXAH54,AXAL54,MXAA52..LHD..CVT..(G,X)..EUR202112-202210

NOT APPLICABLE

main86190-12040iAXAH52..RHD..G..GEN201811-202111

main86190-12040iMXAA52..RHD..EUR202008-202210

AUDIO-4SPEAKER CD *BT, GENERAL

main86190-12040iMXAA52..RHD..EUR202008-202112

AUDIO JACK-FRONT:AUX & USB1

main86190-12040iAXAH54..G..GEN;MXAA54..CVT..GEN;AXAH54..LHD..M..GEN;AXAA54..LHD..V..GEN;MXAA5#..LHD..6F..GEN;AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAA54,MXAA52..(ATM,CVT)..(G,M,X)..GEN202008-202210

AUDIO JACK-FRONT:AUX & USB1,REAR:USB2

main86190-12040iAXAH54..G..GEN;MXAA54..CVT..GEN;AXAH54..LHD..M..GEN;AXAA54..LHD..V..GEN;MXAA5#..LHD..6F..GEN;AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAA54,MXAA52..(ATM,CVT)..(G,M,X)..GEN202008-202210

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2

main86190-34010iAXAH54..RHD;AXAA5#,AXAL5#..JPP;AXAH52..ARL,EUR,GCC;AXAH54..LHD..P..EUR;AXAH52..(G,M,P)..GEN;AXAH54..LHD..(G,M,V,X);MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,202210-202411

AUDIO JACK-FRONT:USB1

main86190-34010iAXAH54..P..GEN202210-202411

AUDIO JACK-FRONT:USB1,REAR:USB2

main86190-34010iAXAH54..RHD;AXAA5#,AXAL5#..JPP;AXAH52..ARL,EUR,GCC;AXAH54..LHD..P..EUR;AXAH52..(G,M,P)..GEN;AXAH54..LHD..(G,M,V,X);MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,202210-202310

AUDIO JACK-FRONT:USB3, REAR:USB3

main86190-34010iAXAH54..X..GCC;AXAH52..ARL,GCC;AXAH52..(G,M)..GEN;AXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH54..LHD..P..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,V);AXAH54..RHD..202210-202410

main86190-34010iAXAH54..P..GEN202310-202411

AUDIO JACK-FRONT:USB3, REAR:USB2

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH DVD, GENERAL&AUDIO JACK-FRONT:USB1

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH DVD, GENERAL&AUDIO JACK-FRONT:USB3, REAR:USB3

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH DVD, LATIN AMERICA&AUDIO JACK-FRONT:USB1,REAR:USB2

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH DVD, LATIN AMERICA&AUDIO JACK-FRONT:USB1

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH DVD, LATIN AMERICA&AUDIO JACK-FRONT:USB3, REAR:USB3

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH DVD, ASIA&AUDIO JACK-FRONT:USB1,REAR:USB2

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH DVD, ASIA&AUDIO JACK-FRONT:USB1

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH DVD, ASIA&AUDIO JACK-FRONT:USB3, REAR:USB3

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH&AUDIO JACK-FRONT:USB1,REAR:USB2

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH&AUDIO JACK-FRONT:USB1

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH&AUDIO JACK-FRONT:USB3, REAR:USB3

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 8INCH&AUDIO JACK-FRONT:USB1,REAR:USB2

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 8INCH&AUDIO JACK-FRONT:USB1

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 8INCH&AUDIO JACK-FRONT:USB3, REAR:USB3

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 8INCH XM&AUDIO JACK-FRONT:USB1,REAR:USB2

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 8INCH XM&AUDIO JACK-FRONT:USB1

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 8INCH XM&AUDIO JACK-FRONT:USB3, REAR:USB3

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

LE PACKAGE&AUDIO-6SPEAKER 7INCH DVD, SOUTH AFRICA

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 8INCH, EUROPE&AUDIO JACK-FRONT:USB1,REAR:USB2

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 8INCH, EUROPE&AUDIO JACK-FRONT:USB1

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 8INCH, EUROPE&AUDIO JACK-FRONT:USB3, REAR:USB3

sub86190-42031

main86190-42030iAXAA52..G..GEN;AXAH52..M..GEN;AXAA54..RHD..GEN;AXAH54,MXAA5#..GEN;AXAA54,AXAH52..LHD..(G,V)..GEN201910-202007

AUDIO-6SPEAKER 7INCH DVD, GENERAL&AUDIO JACK-FRONT:USB1,REAR:USB2

sub86190-42031

main86190-42030iMXAA52..ARL,SA;MXAA52..LHD..EUR;MXAA52..RHD..6F..GEN;AXAA5#,AXAH5#,AXAL5#,MXAA54..ARL,EUR,GCC,SA202008-202009

AUDIO JACK-FRONT:USB1,REAR:USB2

sub86190-42031

main86190-42030iMXAA52..ARL,SA;MXAA52..LHD..EUR;MXAA52..RHD..6F..GEN;AXAA5#,AXAH5#,AXAL5#,MXAA54..ARL,EUR,GCC,SA202008-202009

AUDIO JACK-FRONT:USB1

sub86190-42031

main86190-42030iMXAA52..ARL,SA;MXAA52..LHD..EUR;MXAA52..RHD..6F..GEN;AXAA5#,AXAH5#,AXAL5#,MXAA54..ARL,EUR,GCC,SA202008-202009

AUDIO JACK-FRONT:USB3, REAR:USB3

sub86190-42031

main86190-42030iAXAA54..EUR201910-202004

AUDIO-6SPEAKER 7INCH DVD, GENERAL

sub86190-42031

main86190-42030iAXAA54..EUR201910-202004

AUDIO-6SPEAKER 7INCH DVD, LATIN AMERICA

sub86190-42031

main86190-42031iAXAH54..(G,P)..GEN;AXAA54..LHD..V..GEN;AXAH54..LHD..M..GEN;MXAA54..LHD..6F..M..GEN;MXAA54..CVT..(G,M,V)..GEN;AXAA54,MXAA52..(G,M)..GEN;AXAA52,AXAH52..LHD..(G,M,P)..202009-202210

AUDIO JACK-FRONT:USB3, REAR:USB3

main86190-42031iAXAH54..(G,P)..GEN;AXAA54..LHD..V..GEN;AXAH54..LHD..M..GEN;MXAA54..LHD..6F..M..GEN;MXAA54..CVT..(G,M,V)..GEN;AXAA54,MXAA52..(G,M)..GEN;AXAA52,AXAH52..LHD..(G,M,P)..202009-202210

AUDIO JACK-FRONT:USB1

main86190-42031iAXAH54..(G,P)..GEN;AXAA54..LHD..V..GEN;AXAH54..LHD..M..GEN;MXAA54..LHD..6F..M..GEN;MXAA54..CVT..(G,M,V)..GEN;AXAA54,MXAA52..(G,M)..GEN;AXAA52,AXAH52..LHD..(G,M,P)..202009-202210

AUDIO JACK-FRONT:USB1,REAR:USB2

main86190-42031iAXAA54,MXAA5#..RUS202009-202203

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-42060iAXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL202112-202210

OCEANIA OTHERS SPEC

main86280-42060iAXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL202112-202210

PAPUA NEW GUINEA, SAMOA SPEC

main86280-42100iAXAA54,AXAH5#,MXAA52..(G,V)..ARL202210-202310

OCEANIA OTHERS SPEC

main86280-42100iAXAA54,AXAH5#,MXAA52..(G,V)..ARL202210-202310

PAPUA NEW GUINEA, SAMOA SPEC

main86280-42100iAXAA54,AXAH5#,MXAA52..(G,V)..ARL202310

AUDIO-JBL 10.5INCH DAB, EUROPE

86285BRACKET, AMPLIFIER, NO.1

main86285-42040iAXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL202112-202310

OCEANIA OTHERS SPEC

main86285-42040iAXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL202112-202310

PAPUA NEW GUINEA, SAMOA SPEC

main86285-42040iAXAA54,AXAH5#,MXAA52..(G,V)..ARL202310

AUDIO-JBL 10.5INCH DAB, EUROPE

86286BRACKET, AMPLIFIER, NO.2

main86286-42040iAXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL202112-202310

OCEANIA OTHERS SPEC

main86286-42040iAXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL202112-202310

PAPUA NEW GUINEA, SAMOA SPEC

main86286-42040iAXAA54,AXAH5#,MXAA52..(G,V)..ARL202310

AUDIO-JBL 10.5INCH DAB, EUROPE

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF1334-42020

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

9011906A06

main90119-06A06

9015350015

main90153-50015

9017906274

main90179-06274

11 parts on this diagram · 3 diagrams in section
