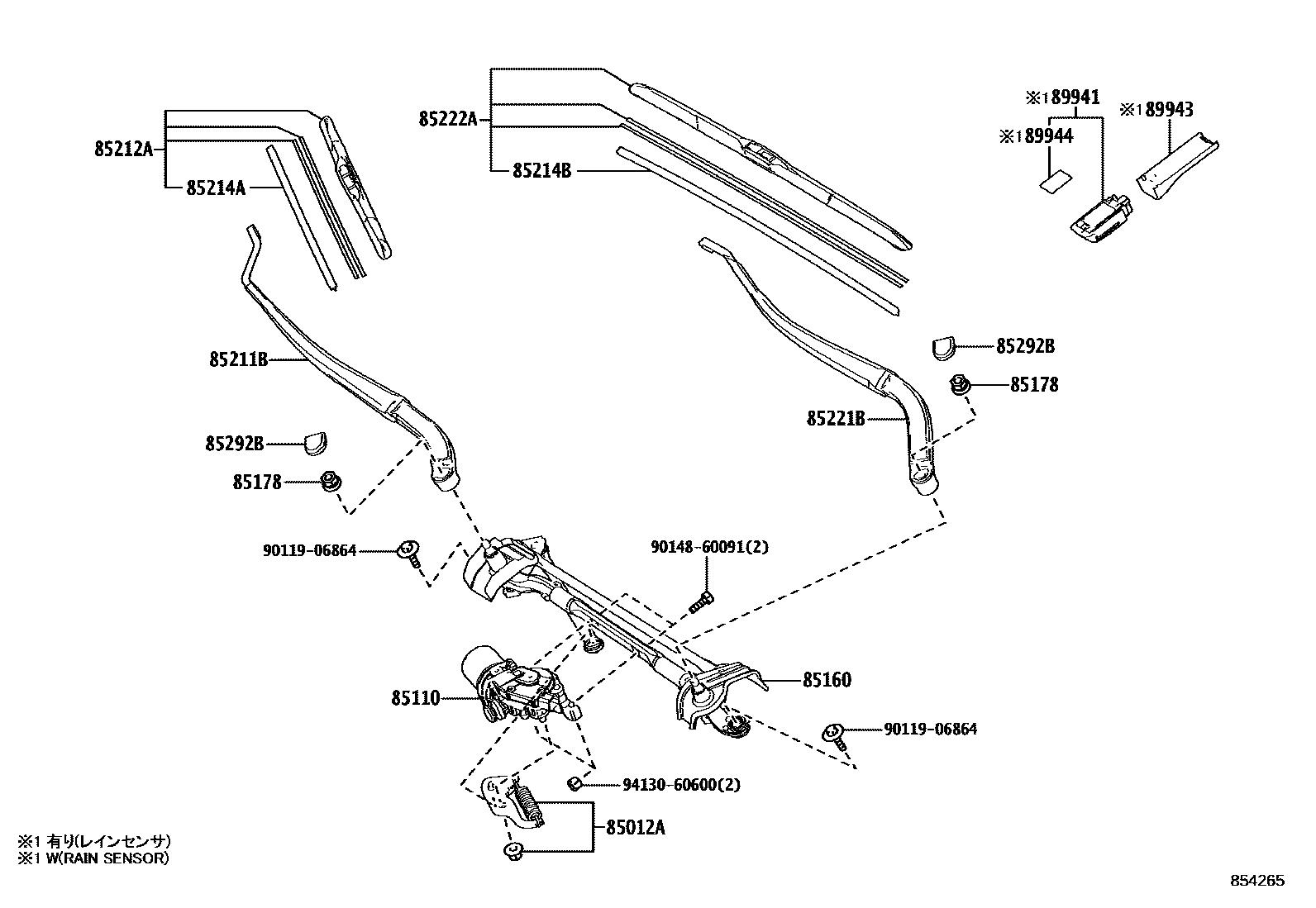

WINDSHIELD WIPER

0001 1 0003 1MEXICO SPEC 0004 1 0006 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iMXAA52..RHD..CVT;AXAH52..RHD..(M,X);MXAA52..RHD..6F..(M,X);AXAH52..RHD..G..(ARL,EUR);AXAA5#,AXAH54,AXAL5#,MXAA54..RHD201811-202007

main85012-58030iAXAA54,MXAA5#..RUS202008-202203

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42270iAXAH54..X..EUR202310-202410

main85110-42280iAXAH5#..X..ARL;MXAA52..6F..SA;MXAA5#..RHD..CVT;AXAH54..RHD..G..GEN;AXAA54..(M,V,X)..ARL;AXAL5#..RHD..(G,M,P,V)..EUR;AXAA54..RHD..(G,M,X)..(GEN,SA);AXAH5#..RHD..(G,M202008-202210

main85110-42260iAXAA52..X..GEN;AXAH52..LHD..G..GEN;AXAA54..LHD..(G,M,V)..GEN201811-202007

MEXICO SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-0R110iAXAA54,MXAA5#..RUS202010-202203

main85150-42240iAXAA54..EUR201811-202004

main85150-42260iAXAH52..RHD..G..GEN201811-202004

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAH5#..RHD..M..GEN;AXAH52..RHD..X..EUR;AXAA54..RHD..V..GEN;AXAA52,AXAL5#..RHD..(ARL,GEN)202008-202111

85211BARM, FRONT WIPER, RH

main85211-0R100iAXAA54,MXAA5#..RUS201910-202009

main85211-42210iAXAA5#,AXAH5#,AXAL5#..JPP..LHD;MXAA5#..JPP..LHD..(GCC,GEN,RUS)202210-202310

main85211-42220iAXAA54..G..ARL;AXAA54..RHD..V..GEN;AXAH5#..RHD..M..GEN;AXAH52..RHD..X..EUR;AXAA52,AXAL5#..RHD..(ARL,GEN)202008-202111

main85211-42221iMXAA52..X..SA;MXAA52..G..EUR202210

85212ABLADE, FR WIPER, RH

main85212-42190iAXAH54..X..GCC;AXAH54..LHD..(G,M,P,V);AXAA5#,AXAH52,AXAL5#..JPP..LHD;MXAA5#..JPP..LHD..(GCC,GEN,RUS)202310

main85212-42200iMXAA52..RHD..CVT;MXAA52..RHD..6F..(M,X);AXAA5#,AXAH5#,MXAA54..RHD201811-202001

main85212-42210iAXAH52..RHD..(G,P)..EUR;AXAH5#..RHD..(ARL,GEN,SA);AXAA54,AXAL5#,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)202310

85214ARUBBER, WIPER, RH

main85214-28090iAXAA54,MXAA5#..RUS201811-202009

main85214-52110iAXAH52..RHD..(G,P)..EUR;AXAH5#..RHD..(ARL,GEN,SA);AXAA54,AXAL5#,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)202310

85214BRUBBER, WIPER, LH

main85214-28090iMXAA52..RHD..CVT;AXAH52..RHD..(M,X);MXAA52..RHD..6F..(M,X);AXAH52..RHD..G..(ARL,EUR);AXAA5#,AXAH54,AXAL5#,MXAA54..RHD201811-202007

main85214-52110iAXAH54..RUS;MXAA54..6F..G..GEN201811-201909

85221BARM, FRONT WIPER, LH

main85221-0R100iAXAA54,MXAA5#..RUS202010-202203

main85221-42210iAXAH52..X..GEN;AXAH54..P..GEN202310

TAIWAN SPEC

main85221-42220iAXAA54..EUR201811-202004

main85221-42221iAXAH54..X..GCC;AXAH54..LHD..P..EUR;AXAH54..LHD..(G,M,V);AXAH52..LHD..(G,M,P);AXAH52..X..(EUR,GCC);AXAA5#,AXAL5#..JPP..LHD;MXAA5#..JPP..LHD..(GCC,GEN,RUS)202310

main85221-42230iAXAH5#..X..ARL;MXAA52..6F..SA;MXAA5#..RHD..CVT;AXAH54..RHD..G..GEN;AXAA54..(M,V,X)..ARL;AXAL5#..RHD..(G,M,P,V)..EUR;AXAA54..RHD..(G,M,X)..(GEN,SA);AXAH5#..RHD..(G,M202008-202210

85222ABLADE, FR WIPER, LH

main85222-42180iAXAH54..RUS;MXAA54..6F..G..GEN201811-201909

main85222-42190iMXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,AXAL5#,MXAA54..RHD202210-202310

main85222-42200iAXAA52..X..GEN;MXAA54..(G,V)..GCC202008-202111

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

89941SENSOR, RAIN

main89941-30040iAXAA54..G..ARL;MXAA52..6F..ARL;MXAA54..RHD..6F;AXAA54..RHD..V..GEN;AXAH5#..RHD..M..GEN;AXAA52,AXAL5#..RHD..(ARL,GEN)202008-202111

main89941-42020iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

89943COVER, RAIN SENSOR

main89943-42040iAXAH52..M..GEN202210-202310

MOROCCO SPEC

89944TAPE, RAIN SENSOR

main89944-42020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

17 parts on this diagram · 4 diagrams in section
