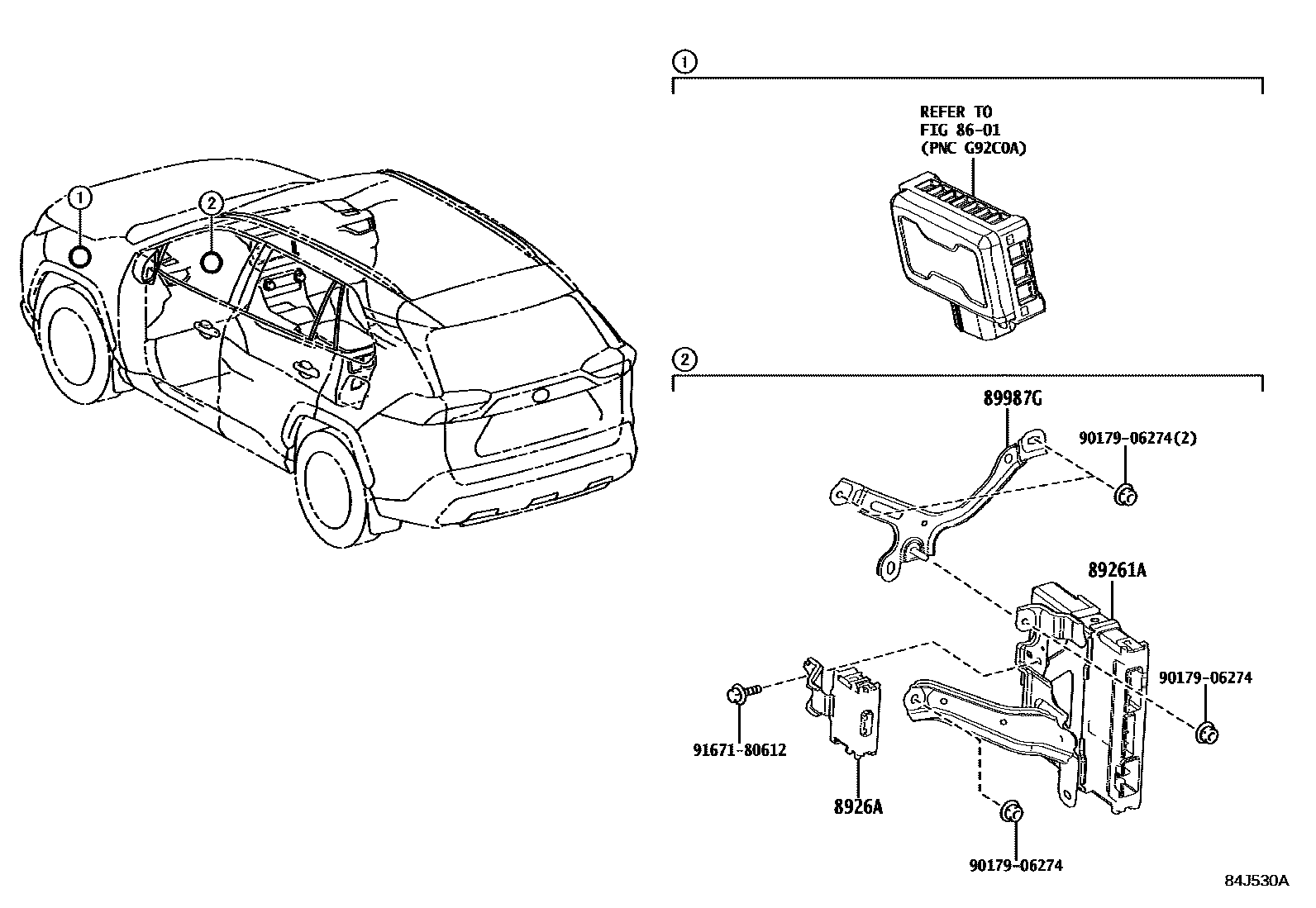

ECO-RUN SYSTEM

0001 1 0002 1

8601

89261ACOMPUTER, ENGINE STOP AND START

main89260-42030iMXAA5#..LHD..CVT..EUR202112-202202

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

sub89260-42031

main89260-42030iMXAA5#..LHD..CVT..EUR202112-202202

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NTA LABEL

sub89260-42031

main89260-42031iMXAA5#..LHD..CVT..EUR202203-202210

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

main89260-42031iMXAA54..CVT..EUR202203-202210

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NTA LABEL

main89260-42031iMXAA5#..LHD..CVT..EUR202210

main89260-42040iMXAA5#..6F..EUR202112-202204

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

sub89260-42041

main89260-42041iMXAA5#..6F..EUR202205-202210

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

main89260-42041iMXAA5#..6F..EUR202210

main89260-42060iMXAA52..RHD..EUR202112-202206

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN

main89260-42061iMXAA52..CVT..ARL202207-202210

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN

main89260-42061iMXAA52..G..EUR202210

main89260-42160iAXAA54..EUR201811-202004

IRAN SPEC

main89260-42180iMXAA52..RHD..6F..EUR201811-202007

main89260-42220iMXAA52..RHD..EUR202008-202112

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN

main89260-42220iMXAA52..RHD..CVT..EUR201811-202007

8926AFILTER, ENGINE STOP & START SOLENOID

main8926A-42010iAXAA54..EUR201811-202004

IRAN SPEC

89987GBRACKET, COMPUTER, NO.1

main89987-42030iMXAA5#..LHD..EUR202112-202210

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NTA LABEL

main89987-42030iMXAA54..CVT..EUR202112-202210

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

main89987-42030iMXAA5#..LHD..EUR202210

main89987-42030iAXAA54..EUR201811-202004

IRAN SPEC

9017906274

main90179-06274

9167180612

main91671-80612

6 parts on this diagram · 2 diagrams in section
