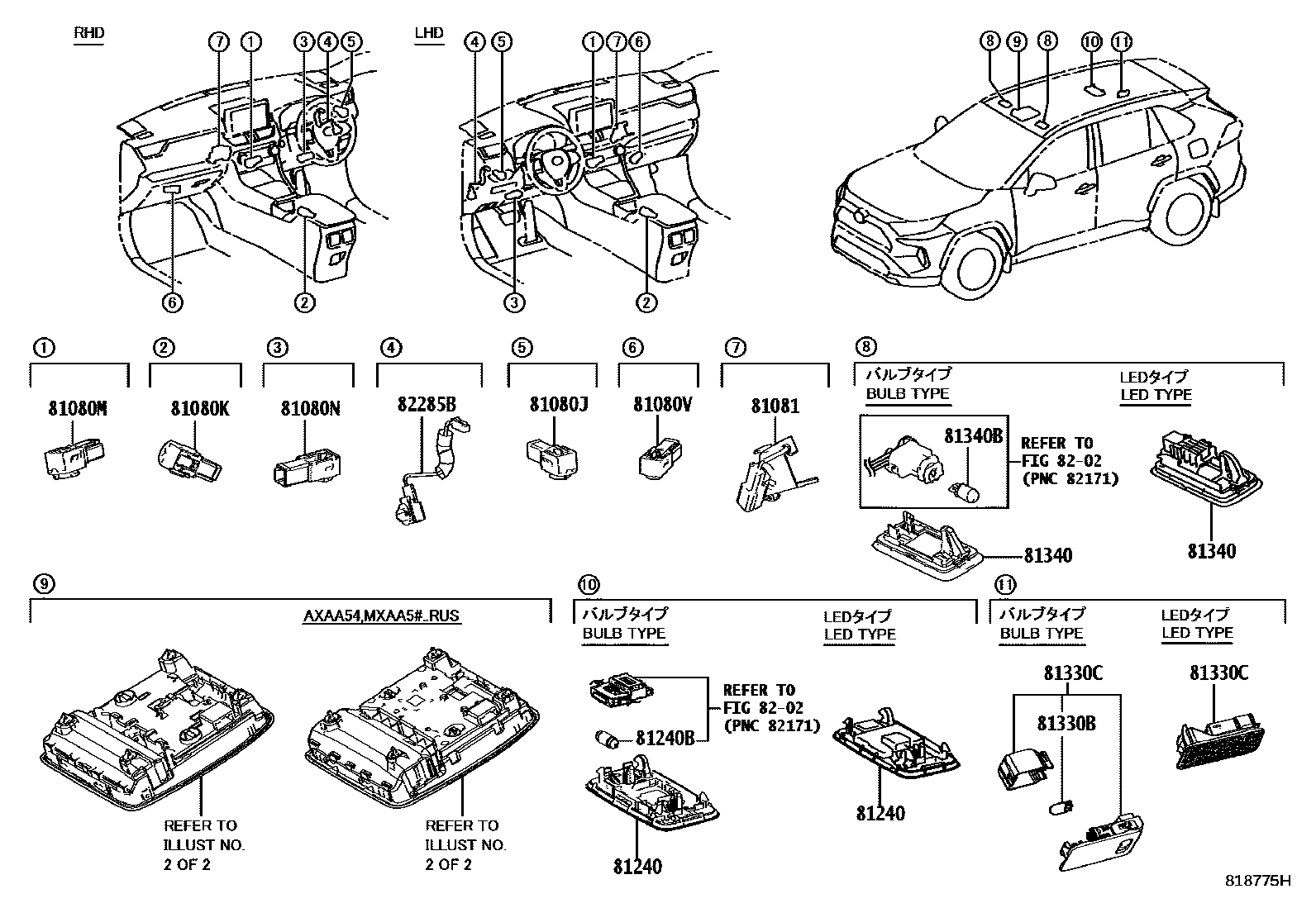

INTERIOR LAMP
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
main81080-42040iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA54..G..(ARL,GCC,GEN,SA);AXAA52,AXAH54,AXAL5#,MXAA5#..(ATM,CVT)..G..(ARL,EUR,GCC,GEN,SA)¥920201811-202007
HV EMOTIONAL PACKAGE
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
HV EMOTIONAL PACKAGE
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
AZERBAIJAN,ARMENIA,GEORGIA SPEC&HV EMOTIONAL PACKAGE&SEAT HEATER-HI-LO(*DRP)
HV EMOTIONAL PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(HV-SPORT)&FRONT SEAT-DRIVER SEAT:POWER SEAT
HV EMOTIONAL PACKAGE&SEAT HEATER-HI-LO(*DRP)
GERMANY SPEC&HV EMOTIONAL PACKAGE&SEAT HEATER-HI-LO(*DRP)
FRANCE SPEC&HV EMOTIONAL PACKAGE&SEAT HEATER-HI-LO(*DRP)
ITALY SPEC&HV EMOTIONAL PACKAGE&SEAT HEATER-HI-LO(*DRP)
NORWAY,SWEDEN,FINLAND,DENMARK SPEC&HV EMOTIONAL PACKAGE&SEAT HEATER-HI-LO(*DRP)
OTHER WVTA COUNTRY, WITHOUT RSA&HV EMOTIONAL PACKAGE&SEAT HEATER-HI-LO(*DRP)
SPAIN,JIB SPEC&HV EMOTIONAL PACKAGE&SEAT HEATER-HI-LO(*DRP)
ISRAEL SPEC&HV EMOTIONAL PACKAGE&SEAT HEATER-HI-LO(*DRP)
TURKEY SPEC&HV EMOTIONAL PACKAGE&SEAT HEATER-HI-LO(*DRP)
OTHER WVTA COUNTRY, WITH RSA&HV EMOTIONAL PACKAGE&SEAT HEATER-HI-LO(*DRP)
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
main81081-42030iMXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA5#..LHD..G..(GCC,GEN);AXAH5#,AXAL5#,MXAA52..LHD..G..(EUR,GCC,GEN)201811-202007
HV EMOTIONAL PACKAGE
main81081-42040iAXAA54,AXAH52,AXAL5#..RHD..(G,P);AXAH54,MXAA52..RHD..(G,P)..(ARL,GEN,SA)¥1,470201811-202410
main81081-42040iAXAH52..RHD..G..(ARL,EUR);AXAA5#,AXAH54,AXAL5#,MXAA52..RHD..(ATM,CVT)..G¥1,470201811-202007
HV EMOTIONAL PACKAGE
81240LAMP ASSY, ROOM, NO.1
main81240-35020-B0iAXAH5#..G..EUR;AXAA5#,MXAA52..G,M;MXAA54..RHD..(M,X);MXAA54..LHD..(G,M);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#..201811-201908
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM1#,20,4#
LT.GRAY,TRIM20,41
LT.GRAY,TRIM2#,4#
BLACK,TRIM20,41
BLACK,TRIM20
main81240-48040-B0iAXAL5#..M,V,X;MXAA54..JPP..RUS;AXAH54..LHD..(M,V)..EUR;AXAH52..LHD..(M,X)..EUR;AXAA54,AXAH5#,MXAA52..(M,X)..ARL202112-202410
LT.GRAY,TRIM1#,2#,4#
main81240-48040-B0iAXAL5#..M,V,X;MXAA54..JPP..RUS;AXAH54..LHD..(M,V)..EUR;AXAH52..LHD..(M,X)..EUR;AXAA54,AXAH5#,MXAA52..(M,X)..ARL202112-202410
LT.GRAY,TRIM2#
main81240-48040-B0iAXAH52,AXAL5#..G;AXAH54..LHD..G..EUR;AXAH5#,MXAA52..M..(GCC,GEN);AXAH54,MXAA52..G..(ARL,GCC,GEN);AXAA5#,MXAA54..(G,M)..(GCC,GEN)202112-202310
LT.GRAY,TRIM2#,4#
BLACK,TRIM2#
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM2#,4#
BLACK,TRIM20
81240BBULB, ROOM LAMP, NO.1
12V 8W
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81330CLAMP ASSY, LUGGAGE COMPARTMENT
main81330-58010iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥460202008-202203
BULB TYPE
LED TYPE
81340LAMP ASSY, VANITY
main81340-30110iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥1,670201811-202203
81340BBULB (FOR VANITY LAMP)
main90981-11062iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5¥340201811-202203
12V 8W
8202
82285BWIRE, ILLUMINATION
main82285-42030iMXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA5#..LHD..G..(GCC,GEN);AXAH5#,AXAL5#,MXAA52..LHD..G..(EUR,GCC,GEN)201811-202007
HV EMOTIONAL PACKAGE
main82285-42040iAXAH52..RHD..G..(ARL,EUR);AXAA5#,AXAH54,AXAL5#,MXAA52..RHD..(ATM,CVT)..G¥190201811-202007
HV EMOTIONAL PACKAGE
14 parts on this diagram · 5 diagrams in section
