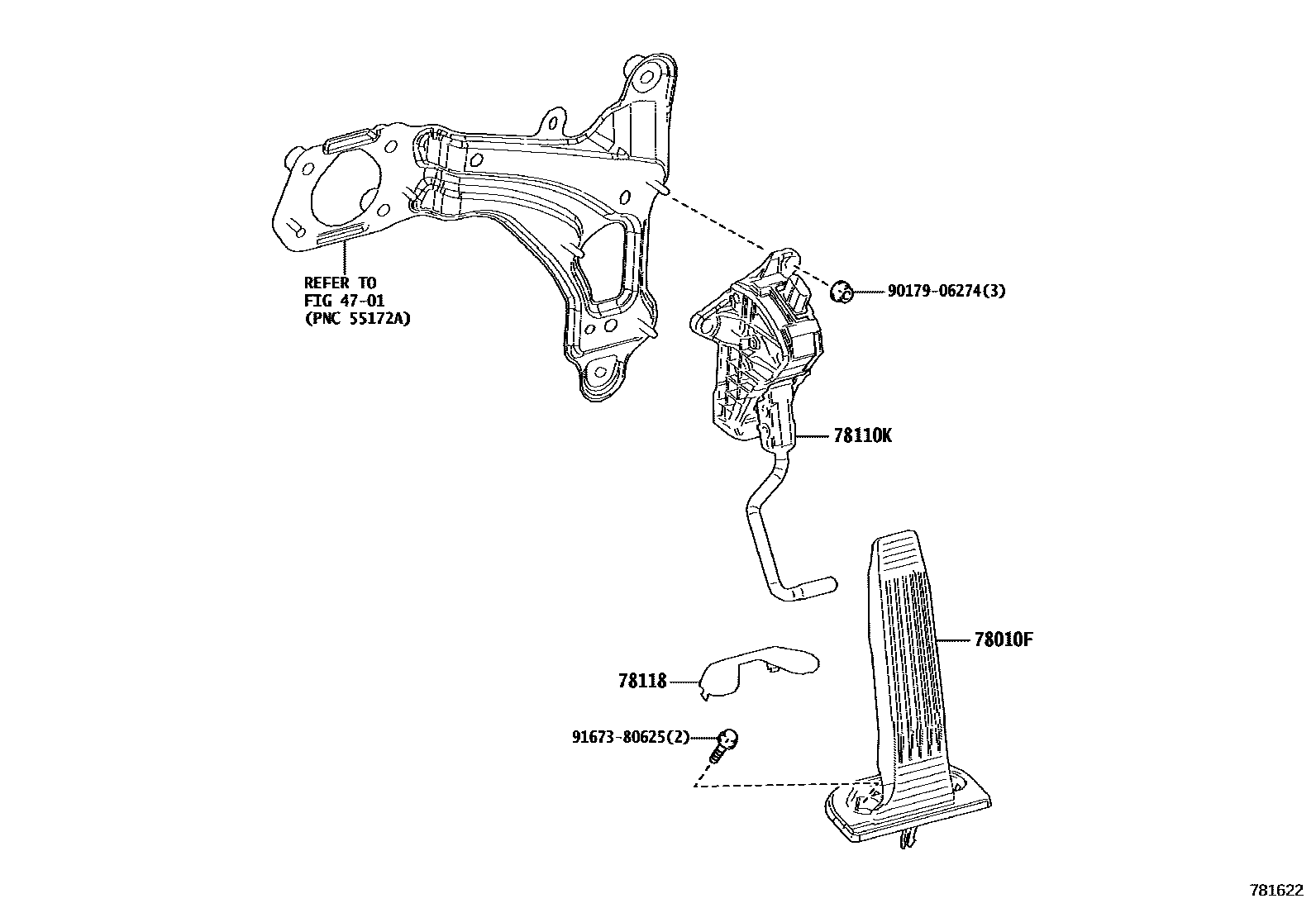

ACCELERATOR LINK

0001 1 0002 1

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-33060iAXAA54,MXAA5#..RUS201811-202111

sub78101-33061

main78101-33061iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR202112-202410

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06121iMXAA5#..RUS201910-202009

sub78110-06122

main78110-06122iMXAA5#..RUS202010-202203

main78110-06131iAXAA54..RUS201910-202009

sub78110-06132

main78110-06132iAXAA54..RUS202010-202203

main78110-33130iAXAH5#,AXAL5#..LHD;MXAA5#..JPP..LHD..6F201811-202011

sub78110-33131

main78110-33131iAXAH5#,AXAL5#..LHD;MXAA5#..JPP..LHD..6F202011-202410

main78110-33140iMXAA5#..JPP..LHD..CVT;AXAA5#..LHD..(GCC,GEN)201811-202011

SPEED WARNING-WITH(ADJUSTABLE SPEED LIMITER)

sub78110-33141

main78110-33140iAXAA54..EUR201811-202004

sub78110-33141

main78110-33141iAXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202011-202410

SPEED WARNING-WITH(ADJUSTABLE SPEED LIMITER)

main78110-33141iAXAA52..X..GEN;MXAA54..(G,V)..GCC202011-202111

main78110-42060iMXAA5#..RHD..6F;AXAH5#,AXAL5#..RHD201811-202011

sub78110-42061

main78110-42061iMXAA52..6F..SA202011-202410

main78110-42070iAXAH5#,AXAL5#..RHD..EUR201811-202010

SPEED WARNING-WITH(ADJUSTABLE SPEED LIMITER)

sub78110-42071

main78110-42071iMXAA5#..RHD..CVT;AXAA54..(M,V,X)..ARL;AXAA54..RHD..(G,M,X)..(GEN,SA)202011-202410

SPEED WARNING-WITH(ADJUSTABLE SPEED LIMITER)

main78110-42071iMXAA52..G..EUR;MXAA52..CVT..X..SA202210

78118PAD, ACCELERATOR PEDAL

main78117-33020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

9017906274

main90179-06274

9167380625

main91673-80625

6 parts on this diagram · 2 diagrams in section
