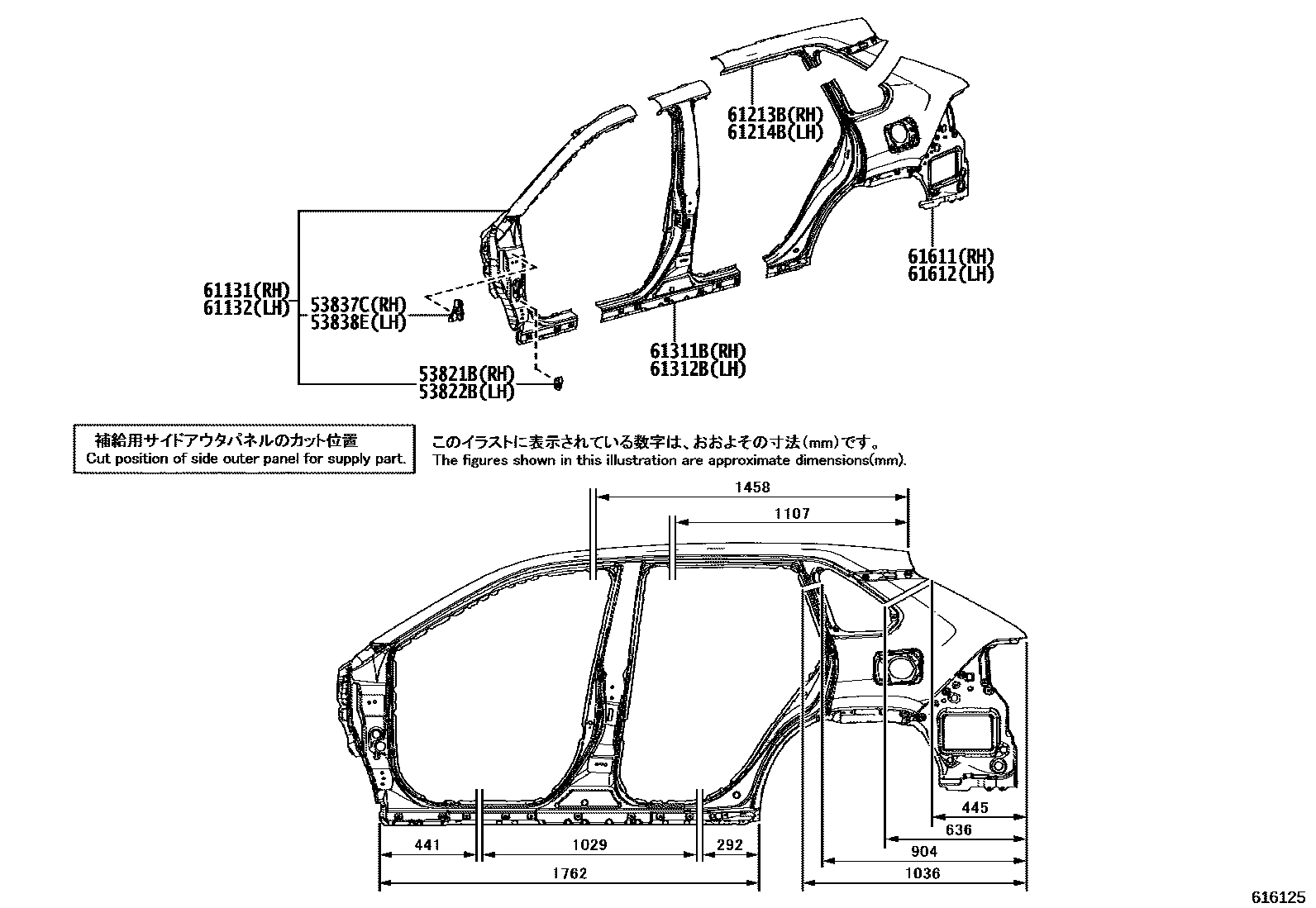

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH 0004 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-42030iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202008-202210

53822BBRACKET, FRONT FENDER, REAR LH

main53821-42030iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202007

53837CBRACKET, FRONT SIDE PANEL, NO.2 RH

main53837-42020iAXAA54,MXAA5#..RUS202008-202203

53838EBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-42020iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61010-0R060iAXAA54,MXAA5#..RUS201910-202009

main61010-42020iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202007

main61010-42021iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202112-202210

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61020-0R060iAXAA54,MXAA5#..RUS201910-202009

main61020-42020iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202007

main61020-42021iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202112-202210

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61210-0R040iAXAA54,MXAA5#..RUS201910-202009

main61210-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202007

main61210-42011iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61220-0R040iAXAA54,MXAA5#..RUS201910-202009

main61220-42010iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

main61220-42011iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202112-202210

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0R090iAXAA54,MXAA5#..RUS201910-202009

main61311-42050iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202007

main61311-42051iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0R100iAXAA54,MXAA5#..RUS202010-202203

main61312-42050iAXAA54..LHD..V;AXAH54..G..GEN;MXAA52..JPP..CVT;AXAL5#..(G,M)..EUR;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;AXAH5#..X..(ARL,GCC);MXAA52..LHD..6F..GEN;MXAA54..JPP..CV202008-202112

main61312-42051iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

61611PANEL, QUARTER, RH

main61601-0R210iAXAA54,MXAA5#..RUS202010-202203

main61601-42130iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR202310

61612PANEL, QUARTER, LH

main61602-0R190iAXAA54,MXAA5#..RUS202010-202203

main61602-42130iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202007

12 parts on this diagram · 4 diagrams in section
