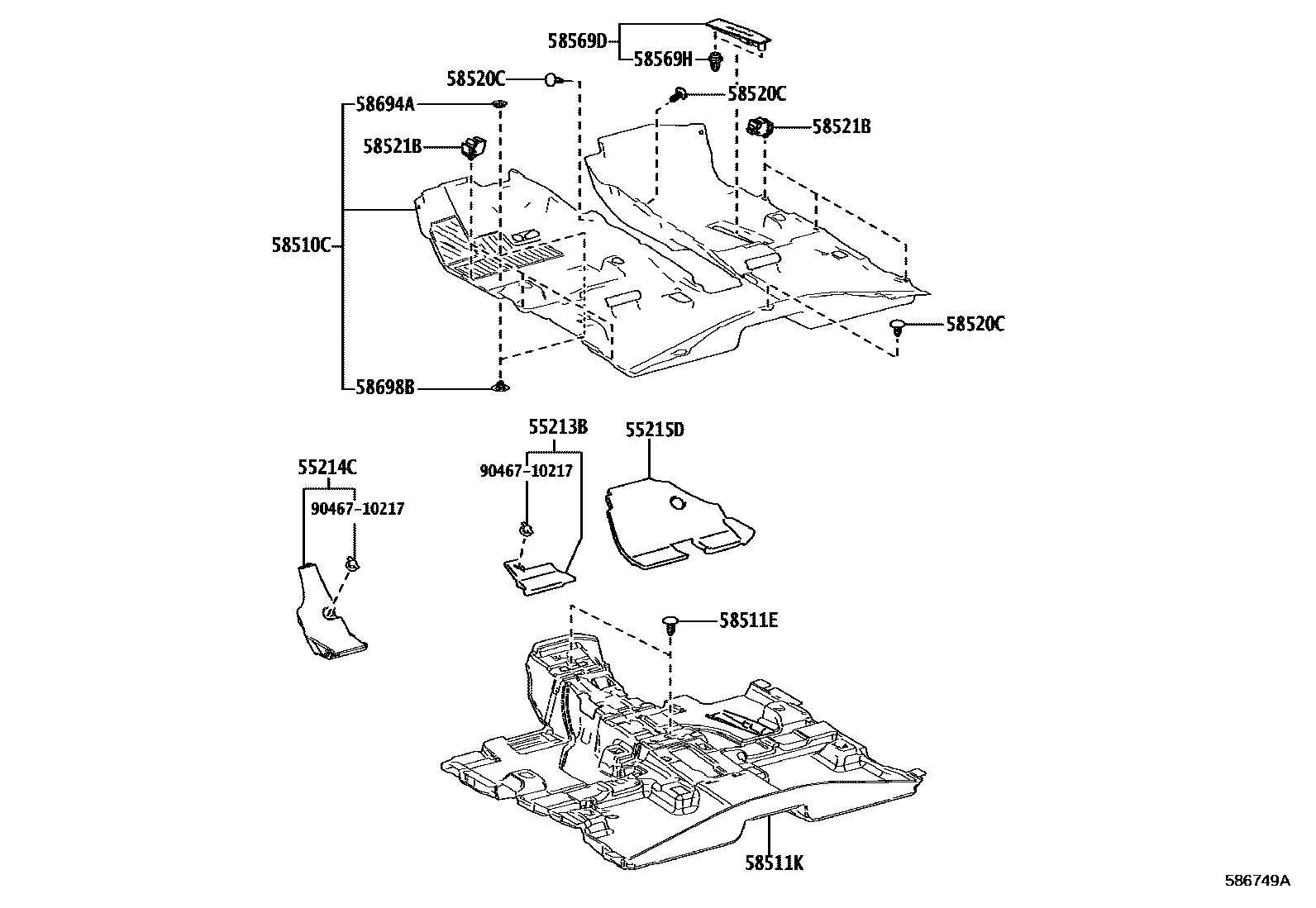

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-0R040iAXAA54,MXAA5#..RUS201910-202203

main55213-42100iAXAH54..RUS;MXAA54..6F..G..GEN201811-202410

main55213-42110iMXAA52..6F..G..SA201811-201910

main55213-42111iMXAA52..X..SA;MXAA52..G..EUR201911-202410

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0R080iAXAA54,MXAA5#..(ATM,CVT)..RUS201910-202203

main55214-42090iAXAA54..LHD..(GCC,GEN);AXAA52,AXAH5#,AXAL5#,MXAA5#..LHD..(ATM,CVT)..(EUR,GCC,GEN)201811-202108

sub55214-42091

main55214-42091iAXAA52..GCC;AXAA52..LHD..(G,M)..GEN;MXAA54..JPP..LHD..CVT..(M,X);MXAA54..LHD..CVT..(G,V)..(EUR,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52..JPP..LHD..(ATM,CVT)202109-202410

main55214-42100iMXAA5#..LHD..6F201811-202108

sub55214-42101

main55214-42101iMXAA5#..JPP..LHD..6F202109-202310

main55214-42110iMXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,AXAL5#,MXAA54..RHD201811-202410

main55214-42120iMXAA5#..RHD..6F..(M,X)201811-202210

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-0R040iAXAA54,MXAA5#..RUS201910-202203

main55215-42030iAXAH54..RUS;MXAA54..6F..G..GEN201811-202410

main55215-42040iMXAA52..X..SA;MXAA52..G..EUR201811-202410

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-0R220-C0iAXAA54,MXAA5#..(ATM,CVT)..RUS201910-202203

BLACK,TRIM2#,(L)

sub58510-42C40

main58510-0R230-C0iMXAA5#..6F..RUS201910-202203

BLACK,TRIM2#,(L)

sub58510-42C60

main58510-42C40-C1iAXAA54,MXAA5#..(ATM,CVT)..RUS201910-202203

BLACK,TRIM2#,(J)

main58510-42C50-C1iMXAA54..G..GCC201811-202310

BLACK,TRIM2#,4#

main58510-42C50-C1iAXAA52..X..GEN;MXAA54..V..GCC201811-202310

BLACK,TRIM1#,2#,4#

main58510-42C50-C1iAXAA5#,MXAA5#..LHD..(ATM,CVT)..(G,M)..(GCC,GEN)202008-202310

BLACK,TRIM2#

main58510-42C60-C1iMXAA5#..6F..X..GEN201811-202310

BLACK,TRIM1#,2#,4#

main58510-42C60-C1iMXAA5#..6F..X..GEN201901-202310

BLACK,TRIM2#,4#

main58510-42C60-C1iMXAA5#..6F..RUS201910-202203

BLACK,TRIM2#,(J)

main58510-42C60-C1iMXAA5#..6F..EUR202008-202210

BLACK,TRIM2#

main58510-42C80-C1iAXAA54..V..ARL;MXAA54..RHD..(V,X);AXAA54,MXAA52..RHD..(ATM,CVT)..X201901-202310

BLACK,TRIM2#,4#

main58510-42C80-C1iMXAA52..RHD..M..EUR202008-202210

BLACK,TRIM2#

main58510-42C80-C1iMXAA52..RHD..M..EUR201811-202310

BLACK,TRIM1#,2#,4#

main58510-42C90-C1iMXAA52..6F..G..SA201811-202111

BLACK,TRIM1#,2#,4#

main58510-42C90-C1iMXAA52..6F..ARL201901-202210

BLACK,TRIM2#,4#

main58510-42D00-C1iAXAH54..RUS201902-201909

BLACK,TRIM1#,2#,4#

main58510-42D10-C1iAXAH5#..X..(GCC,GEN)201902-202310

BLACK,TRIM2#,4#

main58510-42D10-C1iAXAH52..LHD;AXAL5#..LHD..G;AXAH54..LHD..X..EUR;AXAH54..LHD..(G,M)..(EUR,GCC,GEN)201811-202310

BLACK,TRIM1#,2#,4#

main58510-42D10-C1iAXAL5#..LHD..(M,X)202005-202410

BLACK,TRIM2#

main58510-42D30-C1iAXAH5#..(V,X)..(ARL,SA)201811-202310

BLACK,TRIM2#,4#

main58510-42D30-C1iAXAH52..RHD..P..EUR;AXAH5#..(M,P,X)..ARL;AXAL5#..RHD..(M,P,V)201811-202410

BLACK,TRIM1#,2#,4#

main58510-42D30-C1iAXAH52..RHD..P..EUR;AXAH5#..(M,P,X)..ARL;AXAL5#..RHD..(M,P,V)202005-202410

BLACK,TRIM2#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iAXAA54,MXAA5#..RUS201811-202410

BLACK

sub90467-07042

sub90467-06175

58511KMAT, FLOOR, NO.1

main58511-0R070iAXAA54,MXAA5#..RUS201910-202203

(L)

main58511-42020iMXAA5#..6F..G..(GEN,SA)201811-202310

main58511-42020iAXAA54,MXAA5#..RUS201910-202203

(J)

main58511-42040iAXAH5#,AXAL5#201811-202410

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-C7iAXAH54..G;AXAH54..M..(ARL,GCC);AXAH52,AXAL5#..G..EUR;AXAH52..(G,M)..(ARL,GEN)201811-202410

BLACK,TRIM1#,2#,4#

sub90467-05164

main90467-05164-C7iAXAH5#..RHD..X;AXAH54..X..GCC;AXAL5#..X..ARL201811-202310

BLACK,TRIM2#,4#

sub90467-05164

main90467-05164-C7iAXAL5#..(M,X)..EUR201910-202410

BLACK,TRIM2#

sub90467-05164

58521BHOOK, FLOOR CARPET

main58521-33070iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-42040-C0iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

BLACK,TRIM1#,2#,4#

main58569-42040-C0iAXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main58569-42040-C0iAXAL5#..(M,X)..EUR201910-202410

BLACK,TRIM2#

58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1

main62217-13010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

58694APLATE, MAT SET, UPPER

main58694-33010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

main58694-33010iAXAA54,MXAA5#..RUS202010-202203

(J)

58698BPLATE, MAT SET, LOWER

main58698-33010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

main58698-33010iAXAA54,MXAA5#..RUS202010-202203

(J)

9046710217

main90467-10217
