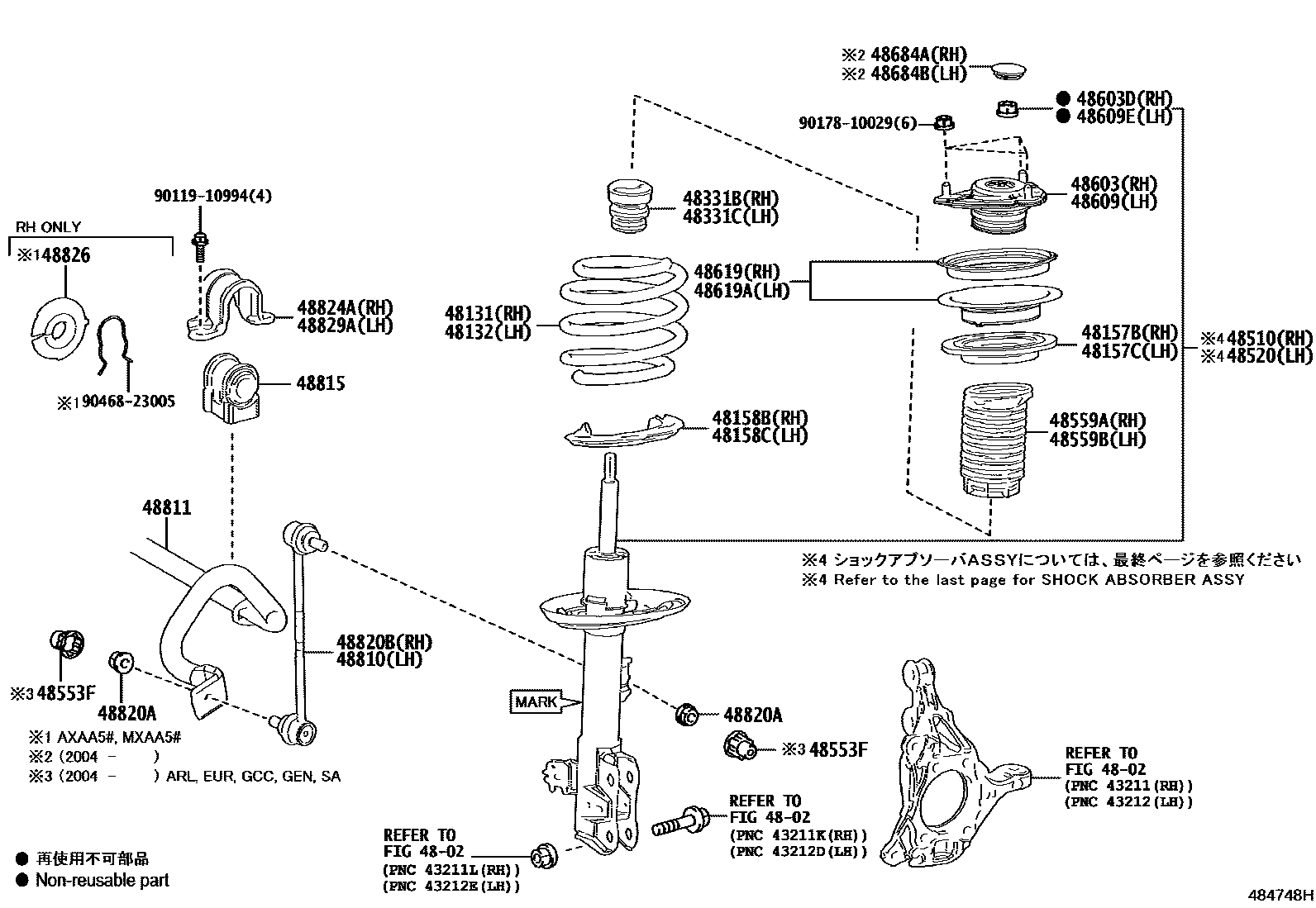

FRONT SPRING & SHOCK ABSORBER

0001 1 0003 1

4802

48131SPRING, FRONT COIL, RH

main48131-42A40iAXAA54..JPP..(G,V)202112-202310

main48131-42A40iAXAA54..V..ARL;AXAA54..(G,V)..(GCC,GEN,SA)202112-202210

SAUDI ARABIA SPEC

main48131-42A60iMXAA52..G..EUR;MXAA54..CVT..EUR201811-202310

main48131-42A70iMXAA54..JPP..LHD..6F201811-202310

main48131-42A80iAXAA52..X..GEN201811-202310

main48131-42A90iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH5#..ARL,GCC,GEN,SA;AXAH54..LHD..(G,M,P,V)..EUR201811-202410

main48131-42B00iMXAA52..6F..RUS201811-202310

48132SPRING, FRONT COIL, LH

main48131-42A40iAXAA54..M..GCC202112-202210

SAUDI ARABIA SPEC

main48131-42A40iAXAA54..JPP..(G,V)202112-202310

main48131-42A60iAXAA52..RHD;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN201811-202310

main48131-42A70iMXAA54..JPP..LHD..6F201811-202310

main48131-42A80iAXAA52,MXAA52..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202310

main48131-42A90iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH5#..ARL,GCC,GEN,SA;AXAH54..LHD..(G,M,P,V)..EUR201811-202410

main48131-42B00iMXAA52..6F..(EUR,SA);MXAA52..LHD..6F..GEN201811-202310

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-33090iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-33090iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33110iAXAA54,MXAA5#..RUS201811-202410

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33110iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

48331BBUMPER, FRONT SPRING, RH

main48331-33071iAXAA54..RHD;AXAH52..M,X;AXAA54..V..GCC;MXAA54..X..GEN;MXAA54..JPP..(M,V);MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);MXAA52..JPP201811-202009

main48331-33101iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202410

main48331-42140iAXAA54,MXAA5#..RUS202008-202210

48331CBUMPER, FRONT SPRING, LH

main48331-33071iAXAA54..RHD;AXAH52..M,X;AXAA54..V..GCC;MXAA54..X..GEN;MXAA54..JPP..(M,V);MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);MXAA52..JPP201811-202009

main48331-33101iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR202210-202410

main48331-42140iAXAA54,MXAA5#..RUS202008-202210

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80A72iAXAA54..V..GCC202210-202310

MARK 48510-42690,SAUDI ARABIA SPEC

main48510-80A72iMXAA5#..(M,X)..GCC202112-202210

MARK 48510-42690,REFER TO LAST PAGE

main48510-80A72iMXAA5#..(M,X)..GCC202112-202210

MARK 48510-42690,SAUDI ARABIA SPEC,REFER TO LAST PAGE

main48510-80A72iMXAA5#..GCC202210-202310

MARK 48510-42690

main48510-80A73iAXAH52..GCC202112-202210

MARK 48510-42700,REFER TO LAST PAGE

main48510-80A73iAXAH54..GCC202210-202310

MARK 48510-42700,SAUDI ARABIA SPEC

main48510-80A73iAXAH52..GCC202210-202310

MARK 48510-42700

main48510-80A74iMXAA54..EUR201811-202310

MARK 48510-42710

main48510-80A74iAXAA54..G..ARL;MXAA54..RHD..6F;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN202008-202210

MARK 48510-42710,REFER TO LAST PAGE

main48510-80A75iAXAH52..M,X;MXAA52..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);MXAA52..JPP..6F..(M,X);AXAA52,AXAH54,AXAL5#,MXAA52..(ATM,CVT)..(ARL,EUR,GCC,GEN,SA)201811-202410

MARK 48510-42730

main48510-80A75iAXAL5#..ARL;AXAA52..X..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;AXAH5#,AXAL5#..RHD..X..EUR;MXAA52..RHD..6F..(ARL,GEN)202008-202210

MARK 48510-42730,REFER TO LAST PAGE

main48510-80A75iAXAH52..GCC202210-202310

MARK 48510-42730,JORDAN SPEC

main48510-8Z375iMXAA5#..(M,X)..GCC202112-202204

MARK 48510-0R170,REFER TO LAST PAGE

main48510-8Z375iAXAA54..M..GCC202112-202204

MARK 48510-0R170,SAUDI ARABIA SPEC,REFER TO LAST PAGE

main48510-8Z376iAXAH52..GCC202112-202204

MARK 48510-0R180,REFER TO LAST PAGE

main48510-8Z390iAXAA54,MXAA5#..RUS201910-202009

MARK 48510-0R240

main48510-8Z390iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202010-202204

MARK 48510-0R240,REFER TO LAST PAGE

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80632iMXAA5#..(M,X)..GCC202112-202210

MARK 48520-42690,REFER TO LAST PAGE

main48520-80632iMXAA5#..GCC202210-202310

MARK 48520-42690,SAUDI ARABIA SPEC

main48520-80632iAXAA54..V..GCC202210-202310

MARK 48520-42690

main48520-80632iMXAA5#..(M,X)..GCC202112-202210

MARK 48520-42690,SAUDI ARABIA SPEC,REFER TO LAST PAGE

main48520-80633iAXAH54..GCC202210-202310

MARK 48520-42700

main48520-80633iAXAH52..GCC202112-202210

MARK 48520-42700,REFER TO LAST PAGE

main48520-80633iAXAH52..GCC202210-202310

MARK 48520-42700,SAUDI ARABIA SPEC

main48520-80634iAXAA54..G..ARL;MXAA54..RHD..6F;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN202008-202210

MARK 48520-42710,REFER TO LAST PAGE

main48520-80634iMXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);AXAA54..ARL,GCC,GEN,SA201811-202310

MARK 48520-42710

main48520-80635iAXAH52..ARL,EUR,GEN;AXAA52,AXAH54,AXAL5#;MXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA)201811-202410

MARK 48520-42730

main48520-80635iAXAL5#..ARL;AXAA52..X..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;AXAH5#,AXAL5#..RHD..X..EUR;MXAA52..RHD..6F..(ARL,GEN)202008-202210

MARK 48520-42730,REFER TO LAST PAGE

main48520-80635iAXAH52..ARL,EUR,GEN;AXAA52,AXAH54,AXAL5#;MXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA)202210-202310

MARK 48520-42730,JORDAN SPEC

main48520-8Z227iMXAA5#..(M,X)..GCC202112-202204

MARK 48520-0R170,REFER TO LAST PAGE

main48520-8Z227iMXAA5#..(M,X)..GCC202112-202204

MARK 48520-0R170,SAUDI ARABIA SPEC,REFER TO LAST PAGE

main48520-8Z228iAXAH52..GCC202112-202204

MARK 48520-0R180,REFER TO LAST PAGE

main48520-8Z242iAXAA54..LHD..V;AXAH52..X..ARL;AXAH54..G..GEN;AXAL5#..(G,M)..EUR;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;AXAH54..X..(ARL,GCC);MXAA52..LHD..6F..GEN;MXAA54..JPP..LHD.202010-202204

MARK 48520-0R240,REFER TO LAST PAGE

main48520-8Z242iAXAA54,MXAA5#..RUS201910-202009

MARK 48520-0R240

48553FCAP

main48553-52030iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP202004-202410

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202410

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-42010iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-42070iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

main48609-42080iAXAA54,MXAA5#..RUS201910-202310

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH201811-202410

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-42070iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

main48609-42080iMXAA54..JPP..RUS201910-202310

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

48619BEARING, STRUT MOUNTING, RH

main48619-42040iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR201811-202410

48619ABEARING, STRUT MOUNTING, LH

main48619-42040iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-33030iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP202004-202410

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-33030iAXAA54,MXAA5#..RUS202004-202410

48810LINK ASSY, FRONT STABILIZER, LH

main48820-33090iAXAA54,MXAA5#..RUS202010-202203

main48820-42040iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202410

48811BAR, STABILIZER, FRONT

main48811-42080iMXAA54..(M,X)..GCC201811-202310

main48811-42090iAXAH52..RHD..G..GEN201811-202410

main48811-42090iAXAH52..M,X;MXAA52..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);MXAA52..JPP..6F..(M,X);AXAA52,AXAH54,AXAL5#,MXAA52..(ATM,CVT)..(ARL,EUR,GCC,GEN,SA)201811-202310

SAUDI ARABIA SPEC

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-33150iMXAA54..6F..G..GEN201811-202310

main48815-33160iMXAA54..GCC;AXAA52,AXAH5#,AXAL5#;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA)201811-202310

SAUDI ARABIA SPEC

main48815-33160iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR201811-202410

main48815-33170iAXAA54,MXAA5#..RUS201902-202203

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202410

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-33090iAXAA54,MXAA5#..RUS202010-202203

main48820-42040iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR201811-202410

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-33040iAXAA54,MXAA5#..RUS201811-202410

48826PROTECTOR, FRONT STABILIZER BAR

main48826-42010iMXAA5#..6F..G..(GEN,SA)201811-202310

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-33040iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

9011910994

main90119-10994

9017810029

main90178-10029

9046823005

main90468-23005

33 parts on this diagram · 2 diagrams in section
