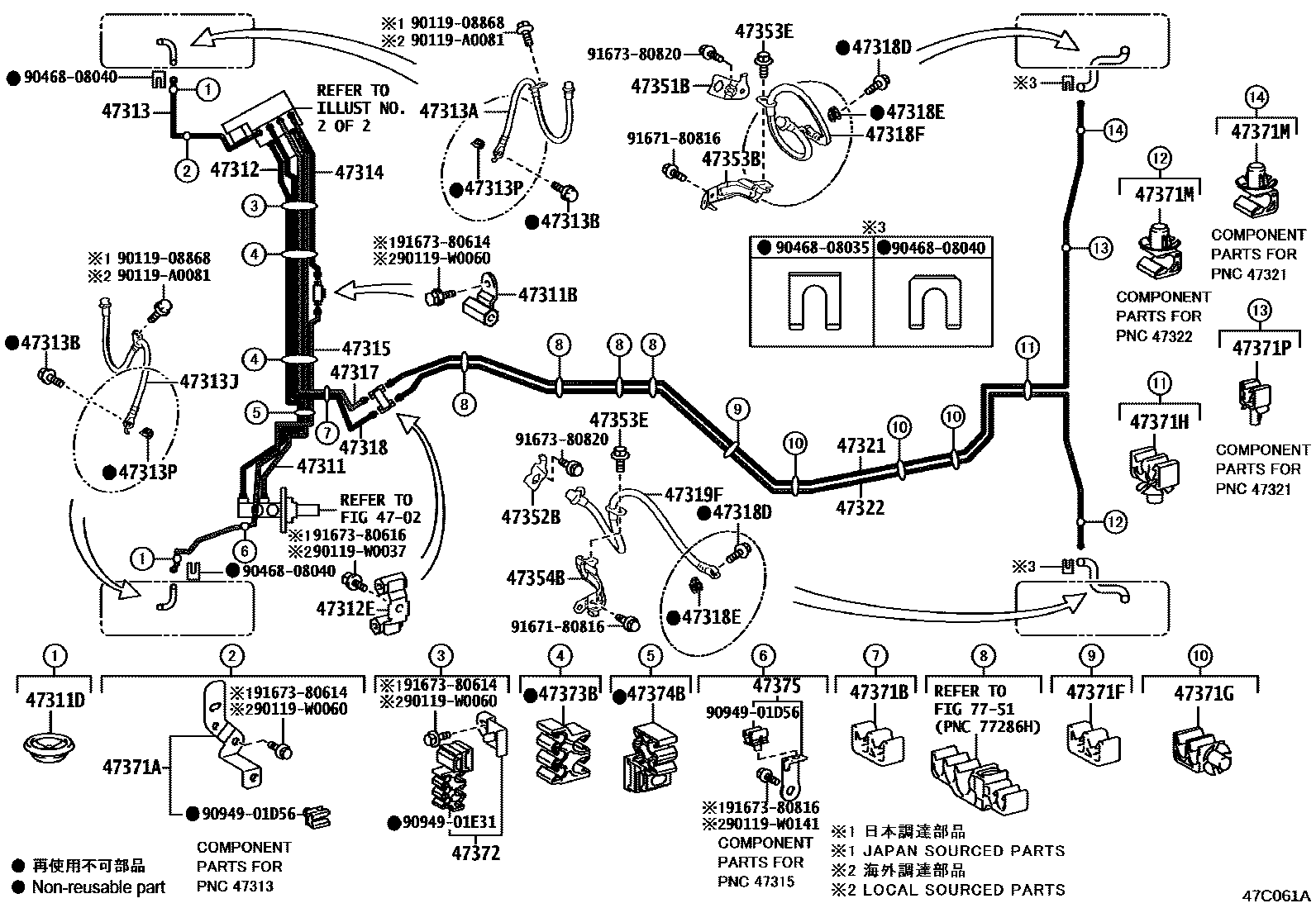

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE TUBE 0006 1BRAKE TUBE 0007 1BRAKE ACTUATOR 0008 1BRAKE ACTUATOR 0009 1BRAKE BOOSTER PUMP 0010 1BRAKE ACTUATOR 0011 1BRAKE BOOSTER PUMP 0012 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0R130iAXAA54,MXAA5#..RUS201910-202203

sub47311-42240

main47311-42240iMXAA52..JPP..LHD;MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA5#..LHD..(GCC,GEN);MXAA54..JPP..LHD..(M,V,X)201811-202310

main47311-42250iMXAA52..6F..G..SA201811-202005

main47311-42260iAXAH5#,AXAL5#..LHD202112-202410

main47311-42270iAXAH5#,AXAL5#..RHD202112-202410

main47311-48110iAXAA54,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)202005-202310

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10272iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037iAXAA54,MXAA5#..RUS201811-202410

47312TUBE, FRONT BRAKE, NO.2

main47312-0R120iAXAA54,MXAA5#..RUS201910-202203

sub47312-42410

main47312-42410iMXAA52..JPP..LHD;MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA5#..LHD..(GCC,GEN);MXAA54..JPP..LHD..(M,V,X)201811-202310

main47312-42420iMXAA52..RHD..CVT;AXAA5#,MXAA54..RHD;MXAA52..RHD..6F..(M,X)201811-202005

main47312-42430iAXAH5#,AXAL5#..LHD202112-202410

main47312-42440iAXAH5#,AXAL5#..RHD202112-202410

main47312-48060iAXAA5#,MXAA5#..RHD202005-202310

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10285iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR201811-202410

47313TUBE, FRONT BRAKE, NO.3

main47313-0R160iAXAA54,MXAA5#..RUS201910-202203

sub47313-42420

main47313-42420iMXAA52..JPP..LHD;MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA5#..LHD..(GCC,GEN);MXAA54..JPP..LHD..(M,V,X)201811-202310

main47313-42430iMXAA52..6F..SA;MXAA5#..RHD..CVT;AXAA54..(M,V,X)..ARL;AXAA54..RHD..(G,M,X)..(GEN,SA)201811-202310

main47313-42440iAXAH54..RUS201811-202112

main47313-42450iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR201811-202112

main47313-48060iAXAL5#..RHD;AXAH52..RHD..(G,P)..EUR;AXAH5#..RHD..(ARL,GEN,SA)202112-202410

main47313-48070iAXAH5#,AXAL5#..LHD202112-202410

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02J10iAXAH54..GCC;AXAA54..V..GCC201811-202310

SAUDI ARABIA SPEC

main90947-02J10iMXAA54..LHD..V..GEN202010-202306

"OFFROAD PACKAGE"*(B)

main90947-02J12iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)201811-202410

main90947-02J12iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GEN);AXAH54..ARL,GCC,GEN,SA;MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH202112-202310

JORDAN SPEC

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02J11iAXAH52,MXAA5#..GCC201811-202310

SAUDI ARABIA SPEC

main90947-02J11iMXAA54..LHD..V202010-202306

"OFFROAD PACKAGE"*(B)

main90947-02J15iAXAH52..GCC202112-202310

JORDAN SPEC

main90947-02J15iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202410

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202410

47314TUBE, FRONT BRAKE, NO.4

main47314-0R180iAXAA54,MXAA5#..RUS201910-202203

sub47314-42200

main47314-42200iMXAA52..JPP..LHD;MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA5#..LHD..(GCC,GEN);MXAA54..JPP..LHD..(M,V,X)201811-202310

main47314-42210iMXAA52..RHD..CVT;AXAA5#,MXAA54..RHD;MXAA52..RHD..6F..(M,X)201811-202005

main47314-42260iAXAH5#,AXAL5#..LHD..(EUR,GCC,GEN)201811-202112

main47314-42270iAXAH52..RHD..G..GEN201811-202112

main47314-42280iAXAH54..X..EUR202112-202410

main47314-48070iAXAA54,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)202005-202310

47315TUBE, FRONT BRAKE, NO.5

main47315-0R070iAXAA54,MXAA5#..RUS201910-202203

sub47315-42260

main47315-42260iMXAA5#..LHD..EUR201811-202310

main47315-42270iMXAA52..6F..G..SA201811-202310

main47315-42280iAXAH5#,AXAL5#..LHD201811-202112

main47315-42290iAXAH54,AXAL5#..RHD;AXAH52..RHD..(M,X);AXAH52..RHD..G..(ARL,EUR)201811-202112

main47315-42310iAXAH5#,AXAL5#..LHD202112-202410

main47315-42320iAXAH5#,AXAL5#..RHD202112-202410

47317TUBE, FRONT BRAKE, NO.7

main47317-0R160iAXAA54,MXAA5#..RUS201910-202203

sub47317-42250

main47317-42250iMXAA52..JPP..LHD;MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA5#..LHD..(GCC,GEN);MXAA54..JPP..LHD..(M,V,X)201811-202310

main47317-42260iMXAA52..6F..G..SA201811-202005

main47317-42270iAXAH5#,AXAL5#..LHD201811-202112

main47317-42280iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR201811-202112

main47317-42290iAXAH5#,AXAL5#..LHD202112-202410

main47317-42300iAXAH5#,AXAL5#..RHD202112-202410

main47317-48400iAXAA5#,MXAA5#..RHD202005-202310

47318TUBE, FRONT BRAKE, NO.8

main47318-0R160iAXAA54,MXAA5#..RUS201910-202203

sub47318-42250

main47318-42250iAXAA54..EUR201811-202310

main47318-42260iMXAA52..RHD..CVT;AXAA5#,MXAA54..RHD;MXAA52..RHD..6F..(M,X)201811-202005

main47318-42270iAXAH5#,AXAL5#..LHD201811-202112

main47318-42280iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR201811-202112

main47318-42290iAXAH5#,AXAL5#..LHD202112-202410

main47318-42300iAXAH5#,AXAL5#..RHD202112-202410

main47318-48250iAXAA54,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)202005-202310

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202410

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02J08iMXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA201811-202310

main90947-02J43iAXAA5#..GCC;AXAH5#,AXAL5#,MXAA5#..EUR,GCC201811-202410

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02J09iAXAH52..RHD..G..GEN201811-202310

main90947-02J44iMXAA54..(G,V)..GCC;AXAH5#,AXAL5#..RHD..X..EUR201811-202410

47321TUBE, REAR BRAKE, NO.1

main47321-0R110iAXAA54,MXAA5#..RUS201910-202009

(L)

sub47321-42210

main47321-0R110iAXAA54,MXAA5#..RUS202010-202203

sub47321-42210

main47321-42210iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

47322TUBE, REAR BRAKE, NO.2

main47322-0R110iAXAA54,MXAA5#..RUS201910-202009

(L)

sub47322-42190

main47322-0R110iAXAA54,MXAA5#..RUS202010-202203

sub47322-42190

main47322-42190iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5201811-202410

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-06050iMXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA201812-202310

(L)

main47351-47030iAXAA54,MXAA5#..RUS201811-202410

(J)

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-06050iAXAH52..G..ARL;AXAH52,MXAA54..LHD..CVT..G..GEN;MXAA52..6F..(M,X)..(ARL,GEN,SA);AXAH52,MXAA54..(M,V,X)..(ARL,GEN,SA);AXAA5#,AXAH54,AXAL5#,MXAA52..(ATM,CVT)..(ARL,GEN201812-202310

(L)

main47352-47030iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5201811-202410

(J)

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-10110iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-08868iMXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA202310-202410

(J)

main90119-08868iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202310

MADE IN JAPAN

main90119-A0081iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202310

MADE IN TMMNA,NUMMI

main90119-W0011iMXAA54..RUS,SA;AXAH54..ARL,GEN;MXAA54..CVT..G..GEN;MXAA54..(M,V,X)..GEN;MXAA52..6F..(M,X)..(ARL,GEN,RUS,SA);AXAA5#,AXAH52,MXAA52..(ATM,CVT)..(ARL,GEN,RUS,SA)201812-202002

MADE IN EUROPE

main90119-W0171iMXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA202003-202310

MADE IN EUROPE

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-10060iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP201811-202410

47371ACLAMP, BRAKE TUBE, NO.1

main47371-42130iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

47371BCLAMP, BRAKE TUBE, NO.6

main47371-42170iAXAH54,AXAL5#..RHD;AXAH52..RHD..(M,X);AXAH52..RHD..G..(ARL,EUR)201811-202112

main90464-00903iAXAH52..X..ARL;AXAH54..G..GEN;AXAL5#..(G,M)..EUR;AXAH54..LHD..M..GEN;AXAH54..X..(ARL,GCC);AXAH52..LHD..(G,M)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M)..(ARL,EUR201811-202410

main90464-00957iAXAH54..RUS201811-202112

47371FCLAMP, BRAKE TUBE, NO.10

main90464-00903iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202410

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D13iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,201811-202410

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01D12iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01D17iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

47371PCLAMP, BRAKE TUBE, NO.14

main90949-01E01iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

47372CLAMP, BRAKE TUBE, NO.2

main47371-42150iAXAA52..GCC;AXAA52..LHD..(G,M)..GEN;AXAA54,MXAA52..JPP..LHD;MXAA54..JPP..LHD..(M,X);MXAA54..LHD..(G,V)..(EUR,GEN)201811-202310

main90949-01D35iAXAH5#,AXAL5#..LHD..(EUR,GCC,GEN)201811-202112

main90949-01D95iAXAH5#..X..ARL;AXAH54..RHD..G..GEN;AXAL5#..RHD..(G,M)..EUR;AXAH5#..RHD..(G,M)..(ARL,EUR)201811-202112

main90949-01E30iAXAH5#,AXAL5#;AXAA54,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)201811-202410

47373BCLAMP, BRAKE TUBE, NO.3

main47371-42150iAXAA54..G..ARL;AXAA54..RHD..V..GEN;AXAA52,MXAA5#..RHD..(6F,8FC)..(ARL,GEN)201811-202310

main47371-42160iAXAH5#,AXAL5#..LHD201811-202112

main90949-01D64iAXAH54,AXAL5#..RHD;AXAH52..RHD..(M,X);AXAH52..RHD..G..(ARL,EUR)201811-202112

main90949-01E40iAXAA54,MXAA5#..RUS201811-202310

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D91iAXAH5#,AXAL5#..LHD201811-202112

main90949-01E30iAXAA5#,MXAA5#..JPP..LHD..(GCC,GEN,RUS)201811-202310

main90949-01E38iAXAH54,AXAL5#..RHD;AXAH52..RHD..(M,X);AXAH52..RHD..G..(ARL,EUR)201811-202112

main90949-01E40iAXAH54..RHD..EUR;AXAH52..RHD..M..EUR201811-202410

47375CLAMP, BRAKE TUBE, NO.5

main47371-42140iMXAA54..6F..G..GEN201811-202310

main90949-01D17iAXAH5#,AXAL5#..RHD201811-202410

main90949-01E38iAXAH5#,AXAL5#..LHD..(EUR,GCC,GEN)201811-202112

main90949-04036iAXAH52..RHD..G..GEN201811-202112

7751

9011908868

main90119-08868

90119A0081

main90119-A0081

90119W0037

main90119-W0037

90119W0060

main90119-W0060

90119W0141

main90119-W0141

9046808035

main90468-08035

9046808040

main90468-08040

9094901D56

main90949-01D56

9094901E31

main90949-01E31

9167180816

main91671-80816

9167380614

main91673-80614

9167380616

main91673-80616

9167380816

main91673-80816

9167380820

main91673-80820

52 parts on this diagram · 12 diagrams in section
