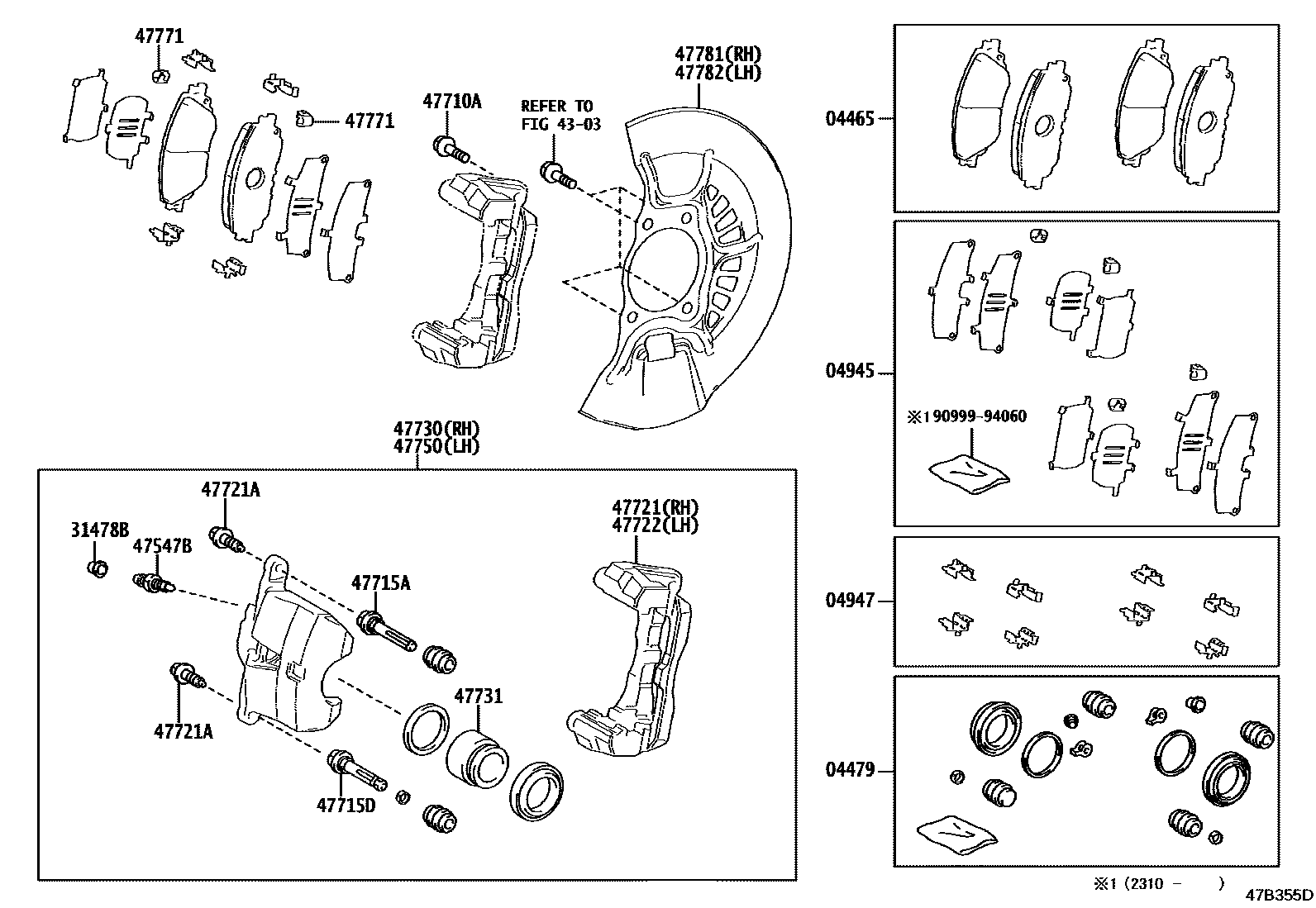

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-33480iAXAH52..G..ARL;AXAH52,MXAA54..LHD..CVT..G..GEN;MXAA52..6F..(M,X)..(ARL,GEN,SA);AXAH52,MXAA54..(M,V,X)..(ARL,GEN,SA);AXAA5#,AXAH54,AXAL5#,MXAA52..(ATM,CVT)..(ARL,GEN¥9,400201811-202410

MARK NBK D6994H

main04465-33490iAXAH52..LHD..M..EUR;AXAH54,MXAA52..X..GCC;AXAA5#,AXAL5#..EUR,GCC;MXAA54..JPP..(GCC,RUS);AXAH52..(G,P,X)..(EUR,GCC);AXAH54..LHD..(G,M,P,V)..(EUR,GCC)201811-202410

MARK AK NS380H

main04465-33510iMXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA¥9,600202411

MARK NBK D6504H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33160iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥2,200201811-202310

main04478-48200iAXAA54..EUR¥2,700201811-202410

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33300iAXAH5#..ARL,SA;MXAA52..6F..SA;AXAH52..LHD..GEN;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..LHD..V..GEN;AXAA54..(M,V,X)..ARL;MXAA5#..LHD..6F..GEN;AXAA52..LHD..(G,¥1,850201811-202205

main04945-33310iMXAA54..G..EUR;AXAA5#,MXAA52..EUR,GCC;MXAA54..(M,X)..(EUR,GCC);AXAH5#,AXAL5#..LHD..X..(EUR,GCC);AXAH5#,AXAL5#..(G,M,P,V)..(EUR,GCC)201811-202410

main04945-42100iMXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA¥1,850202206-202310

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33281iMXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA¥2,080201811-202310

main04947-48080iMXAA54..G..EUR;AXAA5#,MXAA52..EUR,GCC;MXAA54..(M,X)..(EUR,GCC);AXAH5#,AXAL5#..LHD..X..(EUR,GCC);AXAH5#,AXAL5#..(G,M,P,V)..(EUR,GCC)¥1,670201811-202410

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAXAH5#,AXAL5#..RHD..X..EUR¥160201811-202310

FRONT WHEEL BRAKE-17 INCH DISC(T=34MM)

main31478-30010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥160201811-202410

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iMXAA54..(G,V)..GCC;AXAH5#,AXAL5#..RHD..X..EUR¥160201811-202410

main47547-20010iMXAA52..X..SA¥200201811-202310

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAXAH54..M..RUS;MXAA5#..6F..G..(GEN,SA)¥160201811-202410

*12-1.25PX29.5-23

main90105-12401iAXAH54..G..RUS¥190201902-202410

*12-1.25PX35.5-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iMXAA54..G..EUR;AXAA5#,MXAA52..EUR,GCC;MXAA54..(M,X)..(EUR,GCC);AXAH5#,AXAL5#..LHD..X..(EUR,GCC);AXAH5#,AXAL5#..(G,M,P,V)..(EUR,GCC)¥230201811-202410

main47715-52190iAXAA54,MXAA5#..RUS¥360201811-202310

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥360201811-202310

main47715-48150iAXAA54..EUR¥230201811-202410

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33382iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥6,400201811-202310

main47721-48150iAXAA5#..GCC;AXAH5#,AXAL5#,MXAA5#..EUR,GCC¥6,700201811-202410

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iAXAH52..LHD..M..EUR;AXAH54,MXAA52..X..GCC;AXAA5#,AXAL5#..EUR,GCC;MXAA54..JPP..(GCC,RUS);AXAH52..(G,P,X)..(EUR,GCC);AXAH54..LHD..(G,M,P,V)..(EUR,GCC)¥80201811-202410

*8-1.00PX23-12.5

main90105-08164iAXAH5#..ARL,SA;MXAA52..6F..SA;AXAH52..LHD..GEN;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..LHD..V..GEN;AXAA54..(M,V,X)..ARL;MXAA5#..LHD..6F..GEN;AXAA52..LHD..(G,¥90201811-202310

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33312iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥6,400201811-202310

main47722-48140iMXAA54..G..EUR;AXAA5#,MXAA52..EUR,GCC;MXAA54..(M,X)..(EUR,GCC);AXAH5#,AXAL5#..LHD..X..(EUR,GCC);AXAH5#,AXAL5#..(G,M,P,V)..(EUR,GCC)¥6,700201811-202410

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33381iAXAH52..RHD..G..GEN¥29,700201811-202310

main47730-48150iMXAA5#..EUR¥37,400201811-202410

47731PISTON, FRONT DISC BRAKE

main47731-12A10iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥1,250201811-202310

main47731-48150iMXAA5#..EUR¥1,060201811-202410

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33311iAXAH52..G..ARL;AXAH52,MXAA54..LHD..CVT..G..GEN;MXAA52..6F..(M,X)..(ARL,GEN,SA);AXAH52,MXAA54..(M,V,X)..(ARL,GEN,SA);AXAA5#,AXAH54,AXAL5#,MXAA52..(ATM,CVT)..(ARL,GEN¥29,700201811-202310

main47750-48110iMXAA54..G..EUR;AXAA5#,MXAA52..EUR,GCC;MXAA54..(M,X)..(EUR,GCC);AXAH5#,AXAL5#..LHD..X..(EUR,GCC);AXAH5#,AXAL5#..(G,M,P,V)..(EUR,GCC)¥37,400201811-202410

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iAXAH54,AXAL54..(M,X)..(ARL,GEN);AXAA5#,AXAH52,AXAL52,MXAA5#..ARL,GEN,RUS,SA¥200201811-202012

main47771-48150iMXAA54..(G,V)..GCC;AXAH5#,AXAL5#..RHD..X..EUR¥200201811-202410

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33060iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥1,050201811-202410

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33060iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥1,050201811-202410

9099994060

main90999-94060

20 parts on this diagram · 2 diagrams in section
