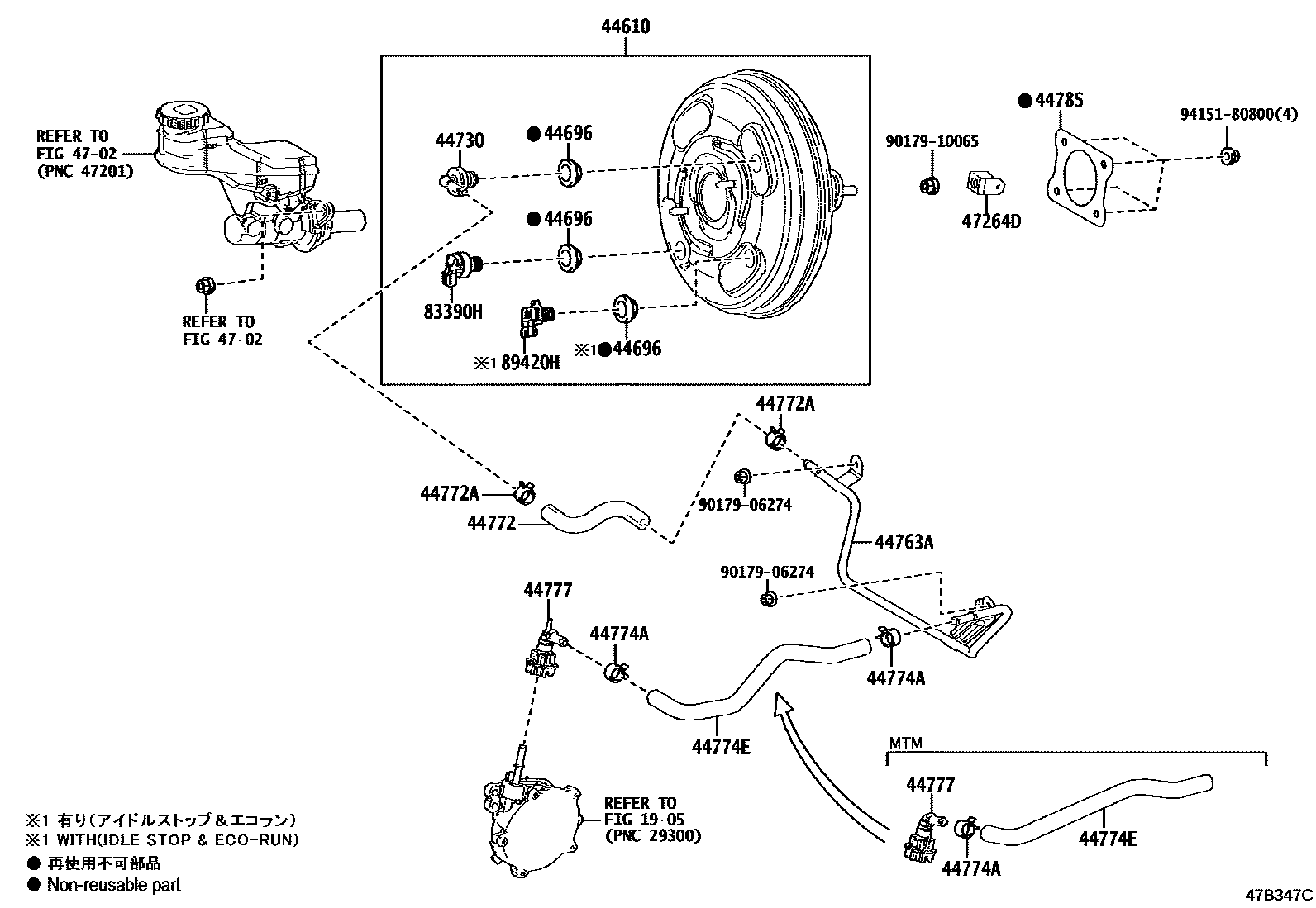

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-42460iMXAA52..6F..SA;AXAA54..(M,V,X)..ARL;MXAA5#..RHD..CVT..(ARL,GEN,SA);AXAA54..RHD..(G,M,X)..(GEN,SA)¥33,200201901-202310

main44610-42490iMXAA52..RHD..EUR201811-202112

main44610-42491iMXAA52..G..EUR202112-202210

main44610-42500iMXAA54..CVT..G..GEN;AXAA5#,MXAA52..LHD..GEN;MXAA54..LHD..(M,V,X)..GEN201811-202310

main44610-42520iAXAA5#,MXAA52..GCC;MXAA54..(M,X)..GCC201811-202310

main44610-42530iAXAA54..EUR201811-202004

main44610-42531iMXAA5#..LHD..EUR202112-202210

44696GROMMET, CHECK VALVE

main90480-24439iMXAA5#..LHD..EUR¥390202210

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

main90480-24439iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)¥390202008-202310

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN

main90480-24439iMXAA5#..6F..G..(GEN,SA)¥390201811-202210

main90480-24439iAXAA54..EUR¥390201811-202004

LOW FUEL CONSUMPTION PACKAGE-WITHOUT

main90480-24439iMXAA52..JPP..6F..X;MXAA52..6F..M..GEN;MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA52..CVT..X..EUR;MXAA54..JPP..(M,V,X);MXAA52..LHD..(G,M)..EUR;AXAA5#,MXAA52..(ATM,CV¥390201811-202112

REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMXAA5#..6F..G..(GEN,SA)¥1,300201811-202310

44763ATUBE, HOSE TO HOSE, NO.1

main44763-42090iMXAA52..6F..G..SA¥1,510201811-202310

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-42100iMXAA52..6F..G..SA¥460201811-202310

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iMXAA52..6F..G..SA¥230201811-202310

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iMXAA52..6F..G..SA¥230201811-202310

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-42120iMXAA52..G..EUR;MXAA52..CVT..X..SA¥1,040201811-202310

main44774-42140iMXAA5#..RHD..6F..(M,X)201811-202210

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-33010iAXAA52..RHD;AXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN¥520201811-202310

main44777-42020iMXAA5#..6F..RUS201811-202310

44785GASKET, BRAKE BOOSTER

main44785-12040iMXAA52..JPP..CVT;MXAA5#..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);MXAA52..JPP..6F..(M,X);AXAA5#..ARL,GCC,GEN,SA¥200201811-202310

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42020iMXAA52..RHD..CVT;MXAA52..LHD..GEN;AXAA5#..ARL,GEN,SA;MXAA54..CVT..G..GEN;MXAA52..RHD..6F..(M,X);MXAA54..(M,V,X)..(GEN,SA)¥240201811-202310

main47264-52050iAXAA5#,MXAA5#..JPP..(GCC,RUS)201811-202310

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMXAA52..JPP..CVT;MXAA5#..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);MXAA52..JPP..6F..(M,X);AXAA5#..ARL,GCC,GEN,SA¥3,780201811-202310

89420HSENSOR ASSY, VACUUM

main89421-52020iAXAA54..EUR¥5,900201811-202004

IRAN SPEC

main89421-52020iMXAA52..RHD..EUR¥5,900201811-202112

REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

main89421-52020iMXAA52..RHD..EUR¥5,900202008-202112

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN

main89421-71040iMXAA5#..EUR¥5,900202112-202210

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN

main89421-71040iMXAA5#..EUR¥5,900202112-202210

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

main89421-71040iMXAA5#..EUR¥5,900202112-202210

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NTA LABEL

main89421-71040iMXAA5#..EUR¥5,900202210

9017906274

main90179-06274¥70

9017910065

main90179-10065¥90

9415180800

main94151-80800¥80

18 parts on this diagram · 2 diagrams in section
