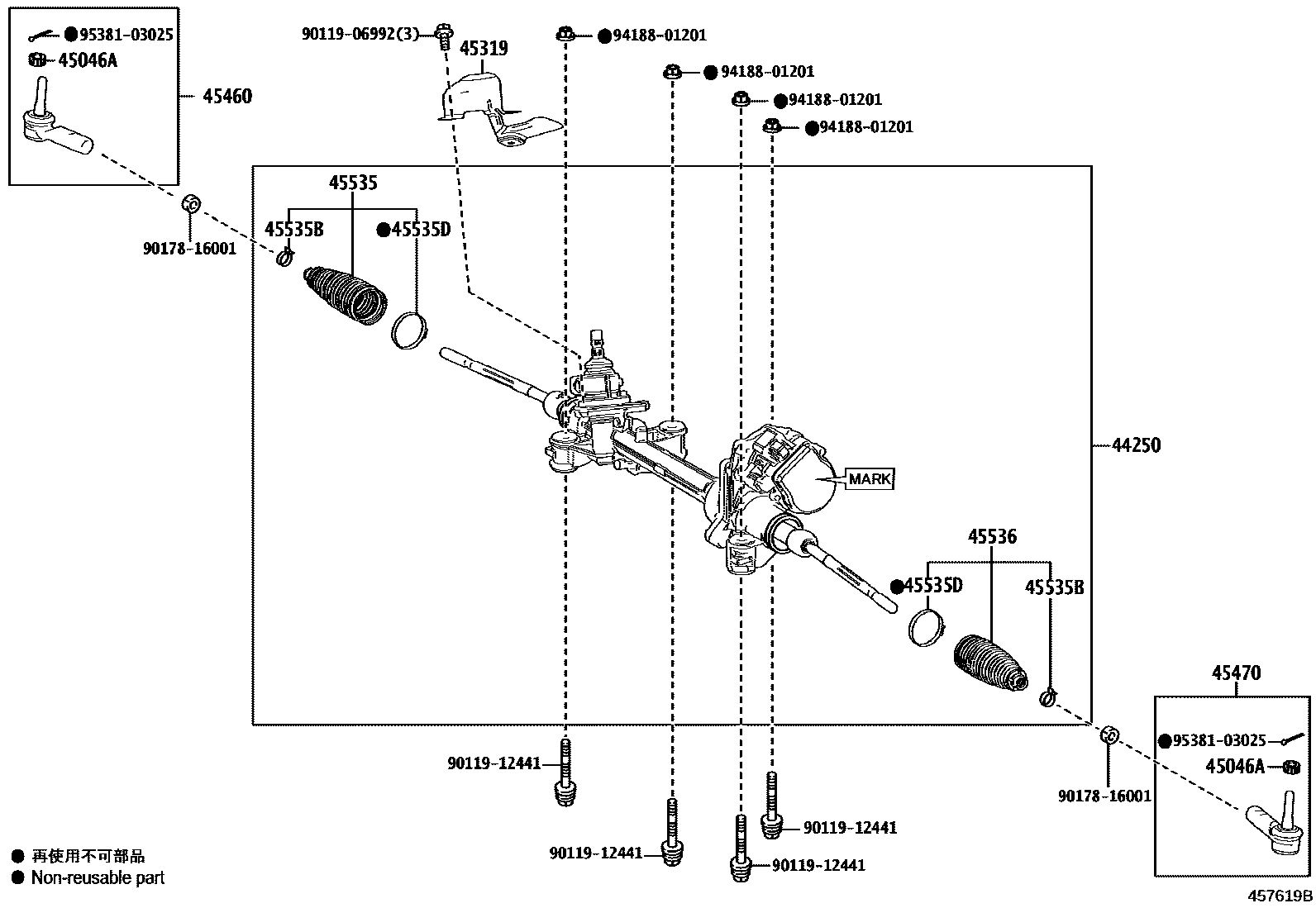

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-42150iAXAH5#..X..ARL;AXAH54..RHD..G..GEN;AXAL5#..RHD..(G,M)..EUR;AXAH5#..RHD..(G,M)..(ARL,EUR)202008-202112

MARK=65

main44250-42150iAXAH52..RHD..G..GEN201811-202007

main44250-42170iAXAH5#,AXAL5#..LHD..(EUR,GCC,GEN)201811-202007

main44250-42170iAXAH5#,AXAL5#..LHD202008-202112

MARK=64

main44250-42210iAXAA52..X..GEN;MXAA54..(G,V)..GCC202008-202112

MARK=64

main44250-42210iAXAA54..EUR201811-202009

main44250-42240iMXAA52..6F..SA;MXAA5#..RHD..CVT;AXAA54..(M,V,X)..ARL;AXAA54..RHD..(G,M,X)..(GEN,SA)202008-202112

MARK=65

main44250-42240iMXAA52..RHD..CVT;AXAA5#,MXAA54..RHD;MXAA52..RHD..6F..(M,X)201811-202007

main44250-42241iAXAH54..V..SA;MXAA52..M..ARL;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(GEN,SA);AXAH52,MXAA54..RHD..(ARL,GEN,SA);AXAA54,AXAH54..RHD..(G,M,P,X)..(ARL,GEN,SA)202210-202310

SPARE TIRE-GROUND TIRE(18)

main44250-42241iMXAA52..X..SA;MXAA52..G..EUR202210

main44250-42241iAXAA54,MXAA52..(G,V)..ARL202210-202310

SPARE TIRE-T165/80D17(REINFORCED TEMPORARY),STEEL

main44250-42251iMXAA52..G..ARL;AXAA54,AXAH54,AXAL54..RHD..V..(ARL,EUR)202210-202310

TIRE & DISC WHEEL-235/55R19,ALUMI,LTD

main44250-42251iAXAA54,MXAA52..RHD..G..(GEN,SA)202210-202310

TIRE & DISC WHEEL-235/55R19,ALUMI,AD

main44250-42251iAXAH5#,AXAL5#..RHD..P..EUR202210-202310

TIRE & DISC WHEEL-235/55R19,ALUMI,HV

main44250-42251iAXAH5#,AXAL5#..RHD..P..EUR202210-202310

TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD

main44250-42420iMXAA54..G..GEN;MXAA52..LHD..(GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP..LHD;MXAA54..JPP..LHD..(M,V,X)..(GCC,GEN,RUS)202210-202310

main44250-42430iAXAH5#,AXAL5#..LHD..P..EUR202210-202310

TIRE & DISC WHEEL-235/55R19,ALUMI,HV

main44250-42430iMXAA54..JPP..G..RUS202210-202310

TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD

main44250-42430iMXAA54..JPP..G..RUS202210-202310

TIRE & DISC WHEEL-235/55R19,ALUMI,AD

main44250-42430iMXAA54..JPP..G..RUS202210-202310

TIRE & DISC WHEEL-235/55R19,ALUMI,LTD

main44250-42430iMXAA54..JPP..G..RUS202210-202310

SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL

main44250-42540iAXAH54..RHD..P..EUR202310-202410

TIRE & DISC WHEEL-235/55R19,ALUMI,LTD,*614

main44250-42540iAXAH54..RHD..G..EUR202310-202410

TIRE & DISC WHEEL-235/55R19,ALUMI,HV,*614

main44250-42540iAXAH54..RHD..P..EUR202310-202410

*614

main44250-42540iAXAH54..RHD..P..EUR202310-202410

TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD,*614

main44250-42730iAXAH54..X..EUR202310-202410

*614

main44250-42740iAXAH52..RHD..M..EUR;AXAH54..RHD..(G,M,P)..EUR202310-202410

*614

main44250-42780iAXAH54..V..SA;AXAH5#..X..ARL;AXAH54..RHD..G..GEN;AXAL5#..RHD..(G,M,P)..EUR;AXAH5#..RHD..(G,M,P)..(ARL,EUR,SA)202112-202210

MARK=71

main44250-42790iAXAH5#,AXAL5#..RHD..G..EUR202112-202210

MARK=71

main44250-42790iAXAH5#,AXAL5#..RHD..G..EUR202112-202210

TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,HV,MARK=71

main44250-42790iAXAH5#,AXAL5#..RHD..P..EUR202112-202210

TIRE & DISC WHEEL-235/55R19,ALL SEASON TIRE,ALUMI,LTD,MARK=71

main44250-42790iAXAH5#,AXAL5#..RHD..P..EUR202112-202210

TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMI,AD,MARK=71

main44250-42790iAXAH5#,AXAL5#..RHD..P..EUR202112-202210

TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,LTD,MARK=71

main44250-42800iAXAH5#,AXAL5#..LHD202112-202210

MARK=70

main44250-42840iAXAA52..GCC;AXAA52..LHD..(G,M)..GEN;AXAA54,MXAA52..JPP..LHD;MXAA54..JPP..LHD..(M,X);MXAA54..LHD..(G,V)..(EUR,GEN)202112-202210

MARK=70

main44250-42870iMXAA52..G..ARL202112-202210

SPARE TIRE-GROUND TIRE(18),MARK=71

main44250-42870iMXAA52..G..ARL202112-202210

MARK=71

main44250-42870iAXAA54..V..ARL;MXAA52..G..ARL202112-202210

SPARE TIRE-T165/80D17(REINFORCED TEMPORARY),STEEL,MARK=71

main44250-42880iMXAA54..RHD..V202112-202210

TIRE & DISC WHEEL-235/55R19,SUMMER TIRE,ALUMI,AD,MARK=71

main44250-42880iAXAA54,MXAA52..RHD..G..(GEN,SA)202112-202210

MARK=71

main44250-42880iMXAA54..RHD..V202112-202210

TIRE & DISC WHEEL-235/55R19,SM/CF,ALUMI,LTD,MARK=71

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iAXAL54..G..ARL201902-202410

main90171-12016iAXAL54..M,P,V,X;AXAA5#,AXAL52..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);AXAH54..LHD..(M,P,V)..EUR;MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..(201811-202410

45319INSULATOR, STEERING GEAR HEAT

main45319-42020iAXAA52..X..GEN;MXAA54..(G,V)..GCC201811-202410

main45319-42030iMXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,AXAL5#,MXAA54..RHD201811-202410

45460ROD ASSY, TIE, RH

main45460-49095iAXAH54..G;AXAL54..G..EUR201902-202410

main45460-49105iAXAL52..ARL;AXAA54..G..ARL;AXAA52..X..GEN;AXAL54..(M,X)..ARL;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA54..RHD..V..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(AR201811-202410

45470ROD ASSY, TIE, LH

main45460-49095iAXAL54..G;AXAH54..LHD..G..EUR;AXAH54..G..(ARL,GCC,GEN,SA)201902-202410

main45460-49105iAXAH54..M..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

45535BOOT, STEERING RACK, NO.1

main45535-29025iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR201811-202410

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-06030iAXAA54,MXAA5#..RUS201811-202410

45536BOOT, STEERING RACK, NO.2

main45535-29025iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

9011906992

main90119-06992

9011912441

main90119-12441

9017816001

main90178-16001

9418801201

main94188-01201

9538103025

main95381-03025

14 parts on this diagram · 2 diagrams in section
