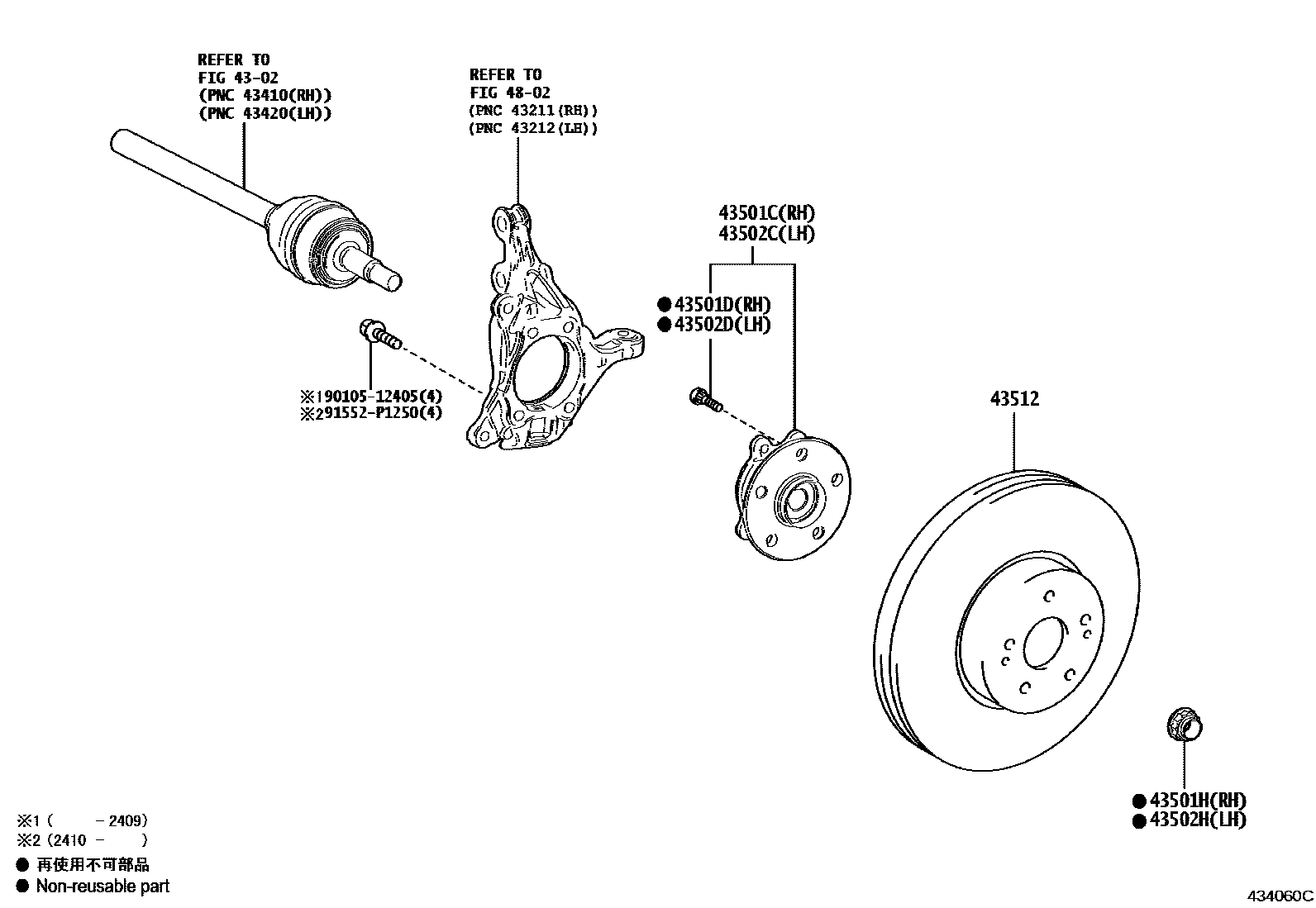

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-33050iMXAA5#..6F..RUS201811-202410

main43550-33070iAXAA54..EUR201811-202309

main43550-33090iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ATM,CVT)..(ARL,GCC,GEN,RUS,SA)202310

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAXAA54,MXAA5#..RUS201811-202410

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-33050iMXAA5#..6F..RUS201811-202410

main43550-33070iAXAA54..EUR201811-202309

main43550-33090iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ATM,CVT)..(ARL,GCC,GEN,RUS,SA)202310

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202410

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR201811-202410

43512DISC, FRONT

main43512-33150iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202310

main43512-48130iAXAA54..EUR201811-202410

4802

9010512405

main90105-12405

91552P1250

main91552-P1250

11 parts on this diagram · 1 diagram in section
