OIL COOLER & TUBE (HEV OR BEV OR FCEV)

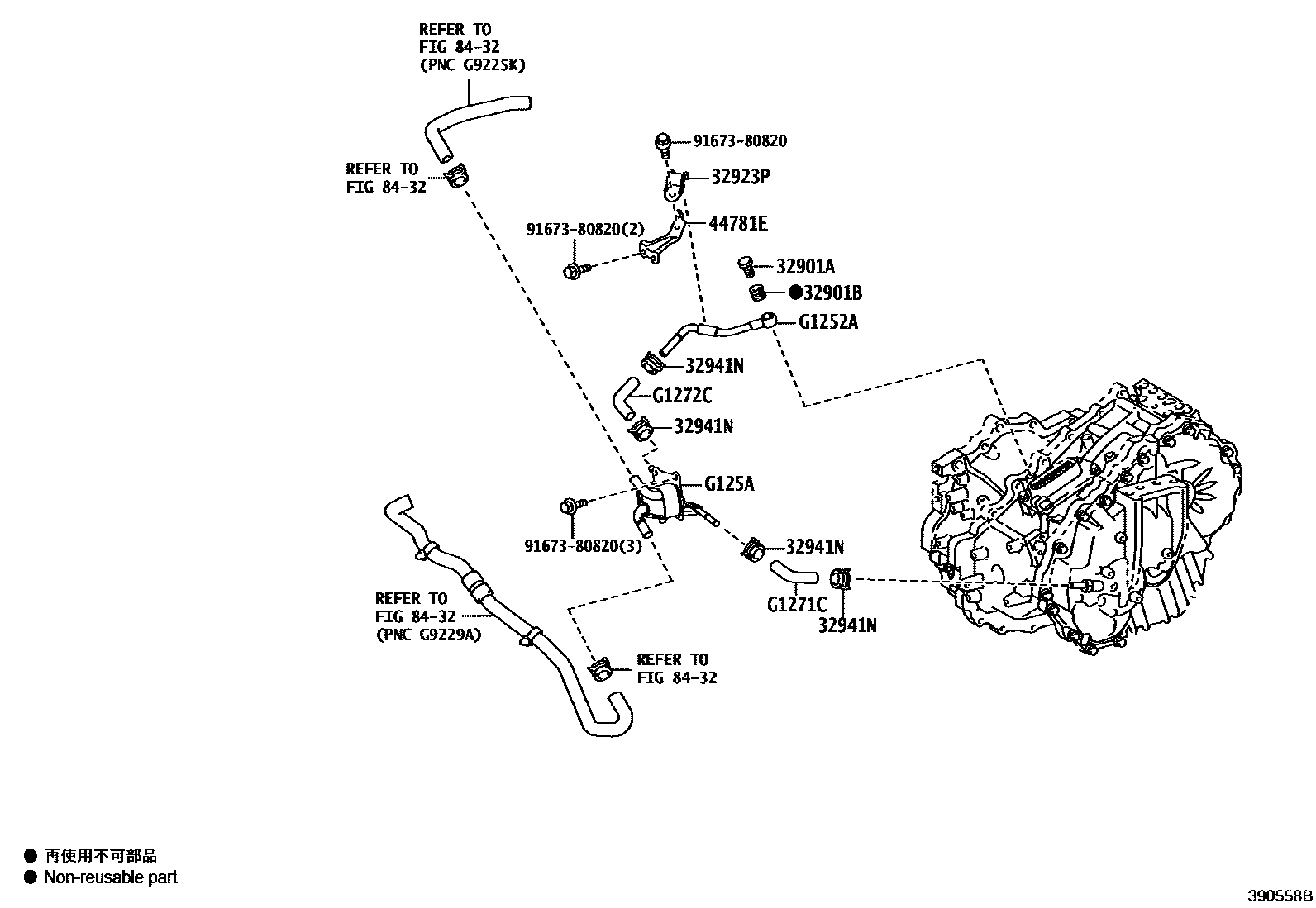

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i201811-202410

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i201811-202410

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040i201811-202410

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004i201811-202410

44781EBRACKET, HOSE

main44781-33020i201811-202410

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG125233010i201811-202410

G125ACOOLER, MOTOR COOLING

mainG125A42010i201811-202410

G1271CHOSE, MOTOR COOLING, NO.1

mainG127133010i201811-202410

G1272CHOSE, MOTOR COOLING, NO.2

mainG127233010i201811-202410

9167380820

main91673-80820

11 parts on this diagram · 1 diagram in section
