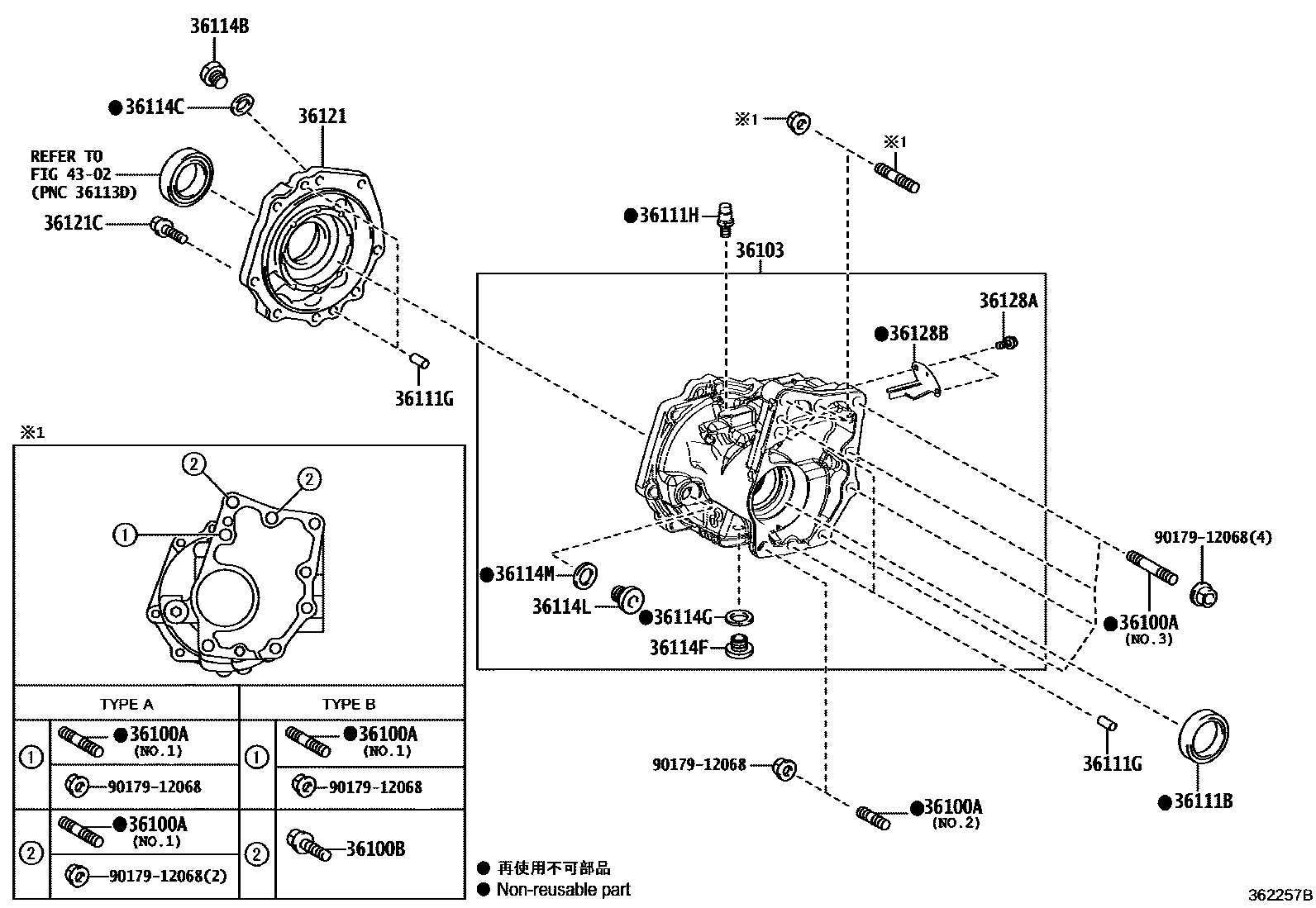

TRANSFER CASE & EXTENSION HOUSING

0001 1 0004 1

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12028iMXAA54..CVT..M..EUR;MXAA54..JPP..CVT..(G,V);AXAA54..(G,V)..(ARL,GCC,GEN,SA)201811-202210

S=22 & 22,L=69,NO.1

main90116-12028iMXAA54..6F..G..GEN201811-202009

S=22 & 22,L=69,NO.1,TYPE B:REF ILL.

main90116-12028iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)202210-202310

S=22 & 22,L=69,NO.1:REFER ILLUST.

main90116-12034iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

S=19 & 19,L=47,NO.2

main90116-12034iMXAA54..CVT..M..EUR;MXAA54..JPP..CVT..(G,V);AXAA54..(G,V)..(ARL,GCC,GEN,SA)201811-202009

S=19 & 19,L=47,NO.2,TYPE B:REF ILL.

main90116-12034iAXAA54,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202210-202310

S=19 & 19,L=47,NO.2:REFER ILLUST.

main90116-12041iMXAA54..6F..EUR201811-202310

S=30 & 22,L=64,NO.3

main90116-12041iAXAA54,MXAA54..(M,X)..RUS202008-202310

S=30 & 22,L=64

36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)

main90105-12298iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202310

*12-1.25PX53-35,TYPE B:REFER ILLUST.

36103CASE SUB-ASSY, TRANSFER

main36103-42070iAXAA54,MXAA54..(M,X)..RUS201811-202009

main36103-52030iMXAA54..6F..EUR202008-202310

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iAXAA54,MXAA54..G..RUS201811-202310

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017iMXAA54..RHD..6F201811-202310

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03031iMXAA54..CVT..M..EUR;MXAA54..JPP..CVT..(G,V);AXAA54..(G,V)..(ARL,GCC,GEN,SA)201811-202310

main90930-03133iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202310

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iMXAA54..6F..G..GEN201811-202310

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iAXAA54..G..ARL;MXAA54..RHD..6F;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN201811-202310

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18035iMXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)201905-202209

TYPE B:REFER ILLUST.

main90341-18035iMXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)201908-202310

main90341-18051iMXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)201811-201905

TYPE A:REFER ILLUST.

main90341-18051iAXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS)201811-202310

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iAXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS)201811-202310

36114LPLUG, FILLER(FOR TRANSFER)

main90341-18023iMXAA54..EUR201811-202310

36114MGASKET (FOR TRANSFER FILLER PLUG)

main12157-10010iMXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)201811-202310

36121COVER, TRANSFER CASE, NO.1

main36121-52020iMXAA54..6F..G..GEN201811-202310

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030iAXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS)201811-202310

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614iMXAA54..6F..G..GEN201811-202310

36128BDEFLECTOR, BREATHER OIL

main36128-42010iMXAA54..6F..G..GEN201811-202310

4302

9017912068

main90179-12068

18 parts on this diagram · 2 diagrams in section
