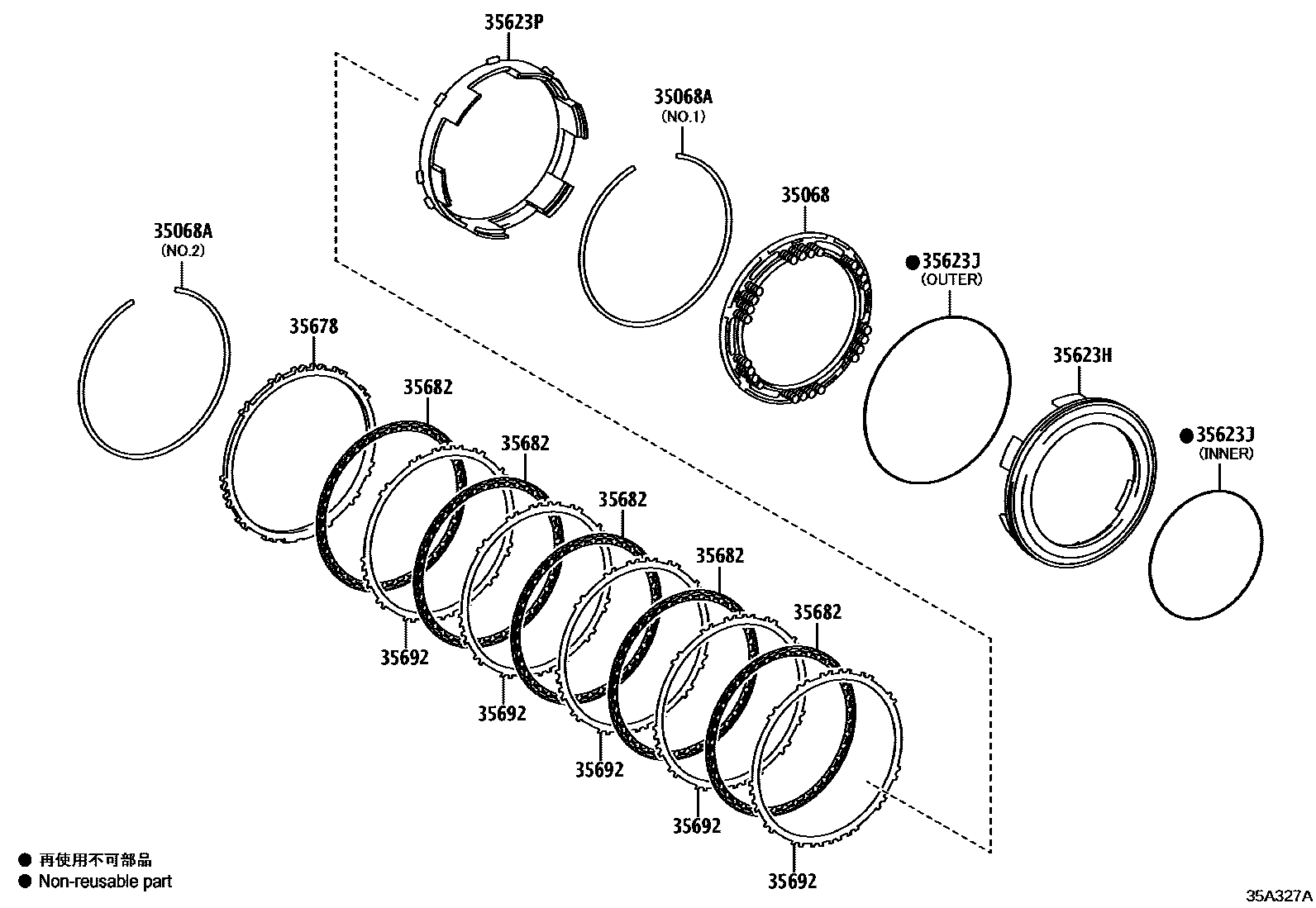

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-33040iAXAA54..EUR201811-202310

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90521-99193iAXAA54..RUS201811-202310

NO.1

main90521-99198iAXAA54..EUR201811-202310

NO.2

35623HPISTON, 1ST & REVERSE BRAKE

main35623-33101iAXAA54..EUR¥2,680201811-202310

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99220iAXAA54..RUS¥200201811-202310

OUTER

main90301-99231iAXAA54..EUR¥200201811-202310

INNER

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35624-33050iAXAA54..EUR¥2,680201811-202310

35678FLANGE, BRAKE(FOR 2ND BRAKE)

main35678-33280iAXAA54..EUR201811-202310

T=5.0,MARK 0

main35678-33290iAXAA5#..ARL,GCC,GEN,SA201811-202310

T=5.1,MARK 1

main35678-33300iAXAA54..RUS201811-202310

T=5.2,MARK 2

main35678-33310iAXAA54..EUR201811-202310

T=5.3,MARK 3

main35678-33320iAXAA52..GCC;AXAA54..LHD..V;AXAA54..(M,V,X)..ARL;AXAA52..LHD..(G,M)..GEN;AXAA54..(G,M,X)..(GCC,GEN,SA)201811-202310

T=5.4,MARK 4

main35678-33330iAXAA5#..JPP201811-202310

T=5.5,MARK 5

main35678-33340iAXAA5#..ARL,GCC,GEN,SA201811-202310

T=5.6,MARK 6

35682DISC, BRAKE(FOR 2ND BRAKE)

main35682-33040iAXAA54..RUS¥760201811-202310

35692PLATE, BRAKE(FOR 2ND BRAKE)

main35692-33040iAXAA54..EUR¥740201811-202310

8 parts on this diagram · 1 diagram in section
