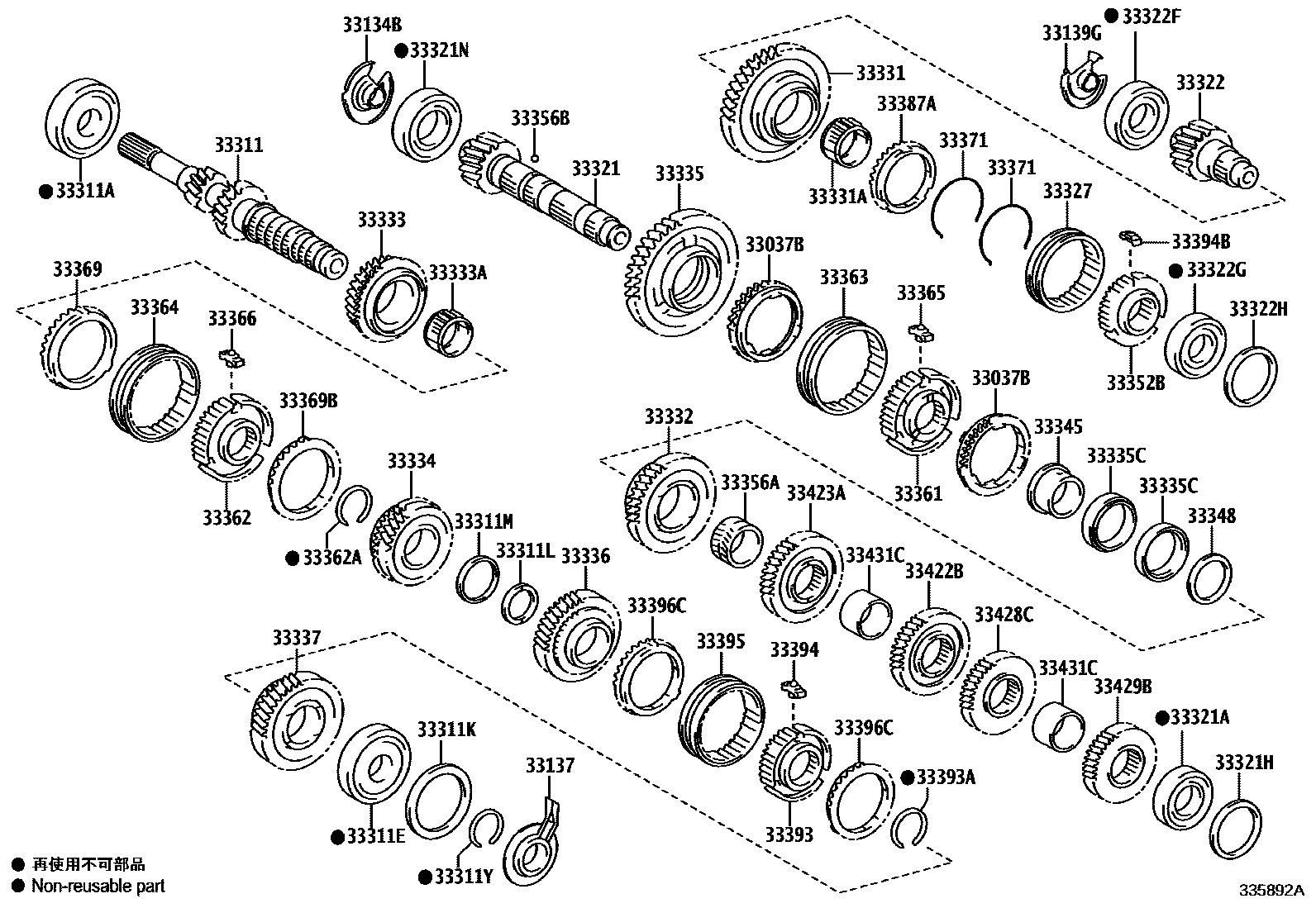

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33134BCOVER, OUTPUT SHAFT(MTM)
33137COVER, INPUT SHAFT(MTM)
33139GCOVER, REVERSE GEAR SHAFT
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
T=1.20,MARK B
T=1.25,MARK C
T=1.30,MARK D
T=1.35,MARK E
T=1.40,MARK F
T=1.45,MARK G
T=1.50,MARK H
T=1.55,MARK J
T=1.60,MARK K
T=1.65,MARK L
T=1.70,MARK M
T=1.75,MARK N
T=1.80,MARK P
T=1.85,MARK Q
33311LSPACER(FOR INPUT SHAFT INNER)
33311MSPACER(FOR INPUT SHAFT OUTER)
33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=1.95,MARK 0
T=2.01,MARK 1
T=2.07,MARK 2
T=2.13,MARK 3
T=2.19,MARK 4
T=2.25,MARK 5
T=1.83,MARK 6
T=1.89,MARK 7
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.600,MARK A
T=1.625,MARK B
T=1.650,MARK C
T=1.675,MARK D
T=1.700,MARK E
T=1.725,MARK F
T=1.750,MARK G
T=1.775,MARK H
T=1.800,MARK J
T=1.825,MARK K
T=1.850,MARK L
T=1.875,MARK M
T=1.900,MARK N
T=1.925,MARK P
T=1.950,MARK Q
T=1.975,MARK R
T=2.000,MARK S
T=2.025,MARK T
T=2.050,MARK U
T=2.075,MARK V
T=2.100,MARK W
T=2.125,MARK X
T=2.150,MARK Y
T=2.175,MARK Z
T=2.200,MARK 1
T=2.225,MARK 2
T=2.250,MARK 3
T=2.275,MARK 4
T=2.300,MARK 5
T=2.325,MARK 6
T=2.350,MARK 7
T=2.375,MARK 8
T=2.400,MARK 9
T=2.425,MARK 10
T=2.450,MARK 11
T=2.475,MARK 12
T=2.500,MARK 13
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33322SHAFT, OUTPUT, NO.2
33322FBEARING(FOR REVERSE GEAR SHAFT FRONT)
33322GBEARING(FOR REVERSE GEAR SHAFT REAR)
33322HSHIM(FOR REVERSE GEAR SHAFT REAR BEARING)
T=1.90,MARK N
T=1.95,MARK P
T=2.00,MARK Q
T=2.05,MARK R
T=2.10,MARK S
T=2.15,MARK T
T=2.20,MARK U
T=2.25,MARK V
T=2.30,MARK W
T=2.35,MARK X
T=2.40,MARK Y
T=2.45,MARK Z
T=2.50,MARK 1
33327SLEEVE, TRANSMISSION HUB, NO.4
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33337GEAR SUB-ASSY, 6TH
33345BUSH, 1ST GEAR
33348WASHER, 1ST GEAR THRUST
33352BHUB, TRANSMISSION CLUTCH, NO.4
33356ARACE, 2ND GEAR BEARING INNER
33356BBALL, 2ND GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30,MARK A
T=2.36,MARK B
T=2.42,MARK C
T=2.48,MARK D
T=2.54,MARK E
T=2.60,MARK F
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33369RING, SYNCHRONIZER, NO.3
33369BRING, SYNCHRONIZER, NO.4
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33387ARING, REVERSE SYNCHRONIZER
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.30,MARK 0
T=2.36,MARK 1
T=2.42,MARK 2
T=2.48,MARK 3
T=2.54,MARK 4
T=2.60,MARK 5
33394KEY, SYNCHROMESH SHIFTING, NO.3
33394BKEY, SYNCHROMESH SHIFTING, NO.3
33396CRING, SYNCHRONIZER, NO.5(MTM)
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
33429BGEAR, 6TH DRIVEN
33431CSPACER, OUTPUT GEAR
57 parts on this diagram · 1 diagram in section
