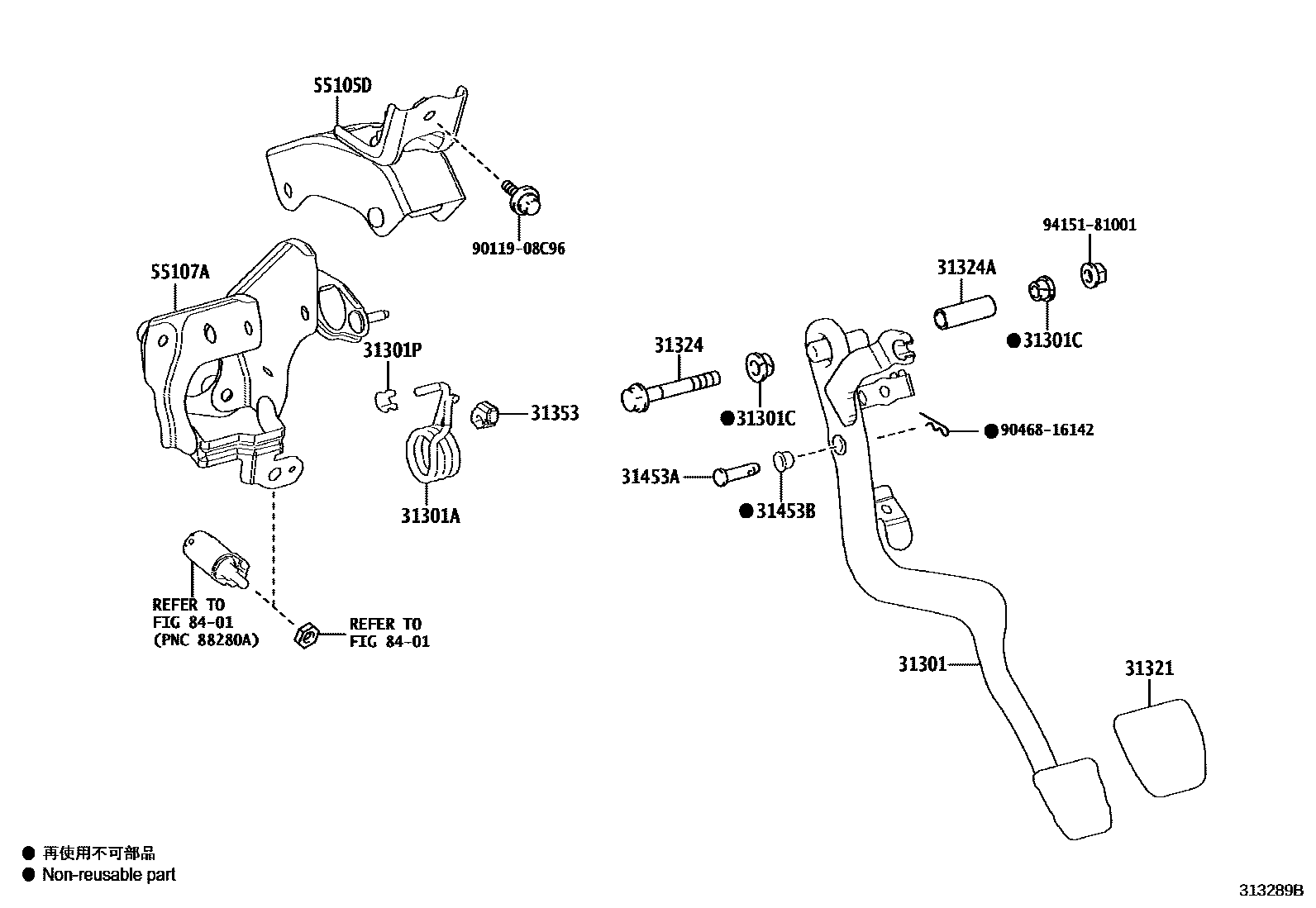

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-42100iMXAA5#..6F..GEN201811-202310

main31301-42110iMXAA52..6F..G..SA201811-202210

31301ASPRING(FOR CLUTCH PEDAL)

main31394-42060iMXAA5#..6F..RUS201811-202310

main90949-03068iMXAA5#..RHD..6F..(ARL,GEN)201811-202210

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iMXAA5#..6F..RUS201811-202310

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iMXAA5#..6F..G..(GEN,SA)201811-202310

31321PAD, CLUTCH PEDAL

main31321-42010iMXAA5#..6F..G..(GEN,SA)201811-202310

31324SHAFT, CLUTCH PEDAL

main90105-10524iMXAA5#..6F..G..(GEN,SA)201811-202310

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iMXAA5#..6F..G..(GEN,SA)201811-202310

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iMXAA5#..6F..G..(GEN,SA)201811-202310

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iMXAA5#..6F..G..(GEN,SA)201811-202310

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iMXAA5#..6F..RUS201811-202310

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-42040iMXAA5#..6F..RUS201811-202310

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-42130iMXAA5#..6F..EUR201811-202310

main55107-42140iMXAA52..6F..G..SA201811-202210

8401

9011908C96

main90119-08C96

9046816142

main90468-16142

9415181001

main94151-81001

16 parts on this diagram · 4 diagrams in section
