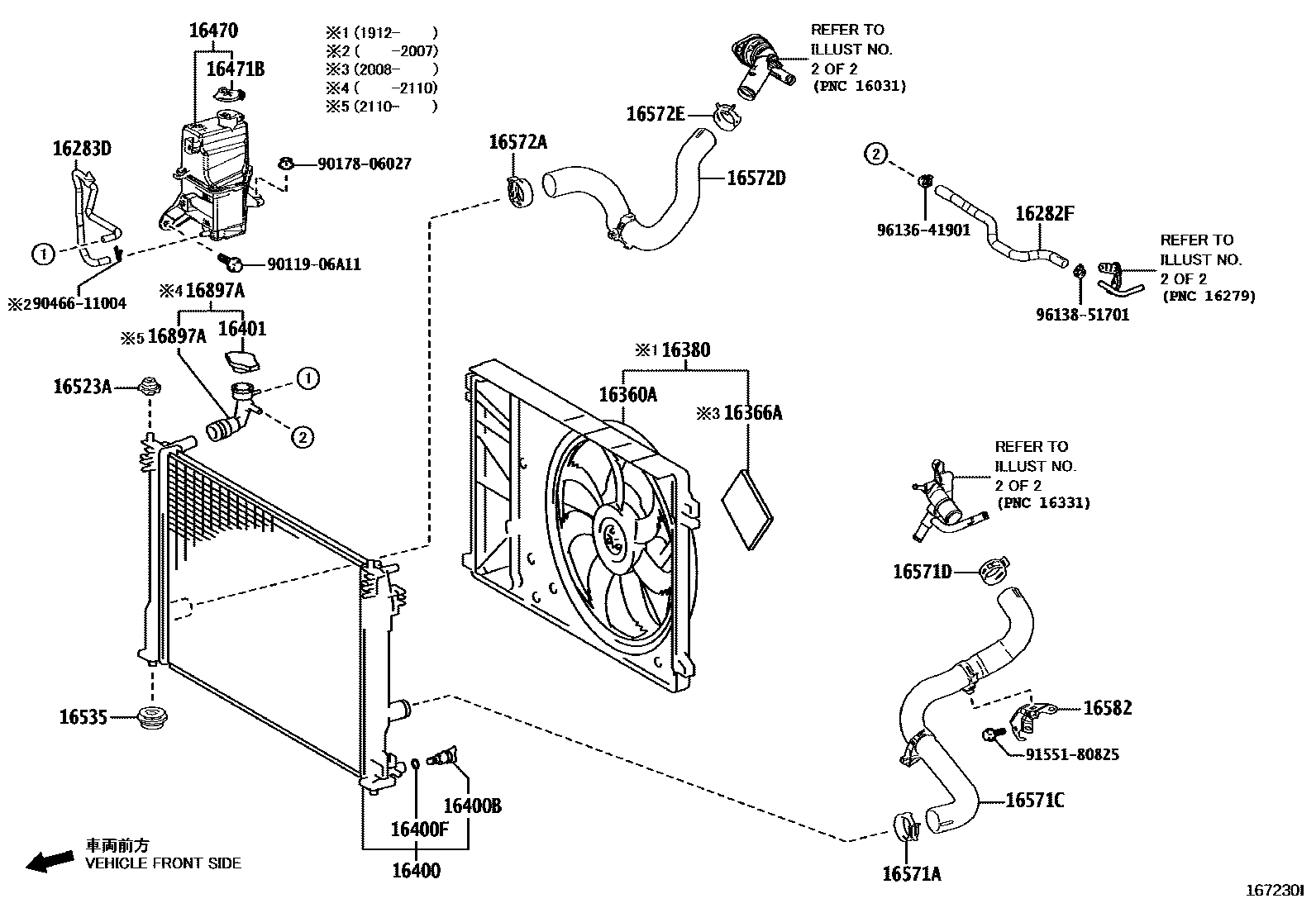

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1ENGINE SIDE 0005 1ENGINE SIDE 0006 1RADIATOR SIDE 0007 1RADIATOR SIDE 0008 1ENGINE SIDE 0009 1ENGINE SIDE 0010 1RADIATOR SIDE 0011 1ENGINE SIDE

16282HOSE, WATER BY-PASS, NO.5

main16282-24020iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)201811-202310

main16282-25030iA25AFKS..AXAA54..RUS201811-202310

main16282-25040iA25AFXS..AXAH52..RHD..G..GEN201811-202410

main16282-F2050iM20AFKS..MXAA5#..RUS201910-202203

16282FHOSE, WATER BY-PASS, NO.5

main16282-24010iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)201811-202310

main16282-25070iA25AFKS..AXAA5#..JPP201811-202310

main16282-25080iA25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFXS..AXAL5#..(G,M,P,V)..EUR;A25AFXS..AXAH5#..X..(ARL,GCC,GEN);A25AFXS..AXAH52..LHD..(G,M,P)..GEN;A25AFX201811-202410

16283HOSE, WATER BY-PASS, NO.6

main16283-24010iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202310

main16283-25010iA25AFKS..AXAA54..EUR201811-202210

main16283-25010iA25AFKS..AXAA5#..ARL,GCC,GEN,SA201811-202007

MEXICO SPEC

main16283-25010iA25AFKS..AXAA5#..ARL,GCC,GEN,SA201811-202111

ECUADOR SPEC

main16283-25010iA25AFKS..AXAA5#..ARL,GCC,GEN,SA201811-202111

COLOMBIA SPEC

main16283-25010iA25AFKS..AXAA52..RHD;A25AFKS..AXAA52..X..GEN;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA54..RHD..V..GEN202008-202111

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE

main16283-25010iA25AFKS..AXAA5#..JPP202210-202310

CHILE SPEC

main16283-25010iA25AFKS..AXAA5#..JPP202210-202310

SAUDI ARABIA SPEC

main16283-25010iA25AFKS..AXAA5#..JPP202210-202310

PANAMA SPEC

main16283-25010iA25AFKS..AXAA5#..JPP202210-202310

LEBANON SPEC

main16283-25010iA25AFKS..AXAA5#..JPP202210-202310

SUDAN SPEC

main16283-25010iA25AFKS..AXAA5#..JPP202210-202310

LIBYA SPEC

main16283-25010iA25AFKS..AXAA5#..JPP202210-202310

U.A.E. SPEC

main16283-25010iA25AFKS..AXAA5#..JPP202210-202310

JORDAN SPEC

main16283-25010iA25AFKS..AXAA5#..JPP202210-202310

QATAR SPEC

main16283-25020iA25AFXS..AXAH52..(G,M)..GEN202210-202310

EGYPT SPEC

main16283-25020iA25AFXS..AXAH52..(G,M)..GEN201811-202410

PARAGUAY SPEC

main16283-25020iA25AFXS..AXAH52..RHD..G..GEN201811-202111

main16283-25020iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202007

MEXICO SPEC

main16283-F2030iM20AFKS..MXAA5#..RUS201910-202203

16283DHOSE, WATER BY-PASS, NO.6

main16283-25050iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFKS..AXAA5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202410

16360AFAN ASSY, W/MOTOR

main16360-25010iM20AFKS..MXAA52..6F..G..SA201811-202310

main16360-25020iA25AFXS..AXAH54..RUS201811-202410

main16360-25030iA25AFXS..AXAL5#..ARL201901-202111

main16360-25030iA25AFXS..AXAH5#..ARL,GCC,SA202210-202310

EXCEPT WVTA COUNTRY&IRAN SPEC

main16360-25030iA25AFXS..AXAH5#..ARL,GCC,SA202008-202210

IRAN SPEC

main16360-31500iM20AFKS..MXAA54..RUS201811-202310

16366AINSULATOR, COOLING FAN MOTOR

main16366-31500iM20AFKS..MXAA54..RHD..6F;M20AFKS..MXAA54..(G,V)..GCC202008-202210

16380BRACKET ASSY, FAN

main16380-31010iM20AFKS..MXAA54..RUS201912-202210

16400RADIATOR ASSY

main16400-25130iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA52..LHD..(G,M)..GEN;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA)201811-202310

main16400-25141iA25AFXS..AXAL5#;A25AFXS..AXAH5#..ARL,GEN,SA;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202112-202410

main16400-25170iA25AFXS..AXAH54..GCC201902-202112

IRAN SPEC

main16400-25180iA25AFXS..AXAH54..LHD..(G,M,X)..EUR202210-202310

EXCEPT WVTA COUNTRY&IRAN SPEC

main16400-25180iA25AFXS..AXAH5#..GCC202112-202210

IRAN SPEC

main16400-25180iA25AFXS..AXAH5#..GCC202310

main16400-25190iA25AFKS..AXAA54..RUS201906-202203

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)201811-202410

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iA25AFXS..AXAH54..RUS201811-202410

16401CAP SUB-ASSY, RADIATOR

main16401-36030iA25AFKS..AXAA54..RUS201811-202410

16470TANK ASSY, RADIATOR RESERVE

main16470-25050iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202410

16471BCAP, RESERVE TANK

main16471-23010iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR201811-202410

16523ACUSHION, RADIATOR SUPPORT

main16523-25010iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202002-202410

main16523-38010iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202001

16535SUPPORT, RADIATOR, LOWER

main16535-28030iA25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFXS..AXAL5#..(G,M,P,V)..EUR;A25AFXS..AXAH5#..X..(ARL,GCC,GEN);A25AFXS..AXAH52..LHD..(G,M,P)..GEN;A25AFX201811-202410

main16535-28060iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)201811-202310

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFKS..AXAA5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202410

16571CHOSE, RADIATOR, NO.1

main16571-24040iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202310

main16571-25070iA25AFKS..AXAA5#..ARL,GCC,GEN,SA201811-202310

main16571-25080iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202112

main16571-25210iA25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFXS..AXAL5#..(G,M,P,V)..EUR;A25AFXS..AXAH5#..X..(ARL,GCC,GEN);A25AFXS..AXAH52..LHD..(G,M,P)..GEN;A25AFX202112-202410

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.201811-202310

main90466-43002iA25AFKS..AXAA54..RUS201811-202410

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS201811-202410

16572DHOSE, RADIATOR, NO.2

main16572-24040iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202310

main16572-25050iA25AFKS..AXAA5#..JPP201811-202310

main16572-25060iA25AFXS..AXAH54..G..GEN;A25AFXS..AXAH52..LHD..GEN;A25AFXS..AXAL5#..(G,M)..EUR;A25AFXS..AXAH54..LHD..M..GEN;A25AFXS..AXAH5#..X..(ARL,GCC);A25AFXS..AXAH5#,AXAL5#..LHD201811-202112

main16572-25100iA25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFXS..AXAL5#..(G,M,P,V)..EUR;A25AFXS..AXAH5#..X..(ARL,GCC,GEN);A25AFXS..AXAH52..LHD..(G,M,P)..GEN;A25AFX202112-202410

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)201811-202410

16582BRACKET, RADIATOR, NO.1

main16582-25010iA25AFKS..AXAA52..RHD;A25AFKS..AXAA52..X..GEN;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA54..RHD..V..GEN201811-202310

16897ANECK, FILLER

main16897-25020iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202110

main16897-25021iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.202110-202410

9011906A11

main90119-06A11

9017806027

main90178-06027

9046611004

main90466-11004

9155180825

main91551-80825

9613641901

main96136-41901

9613851701

main96138-51701

29 parts on this diagram · 10 diagrams in section
