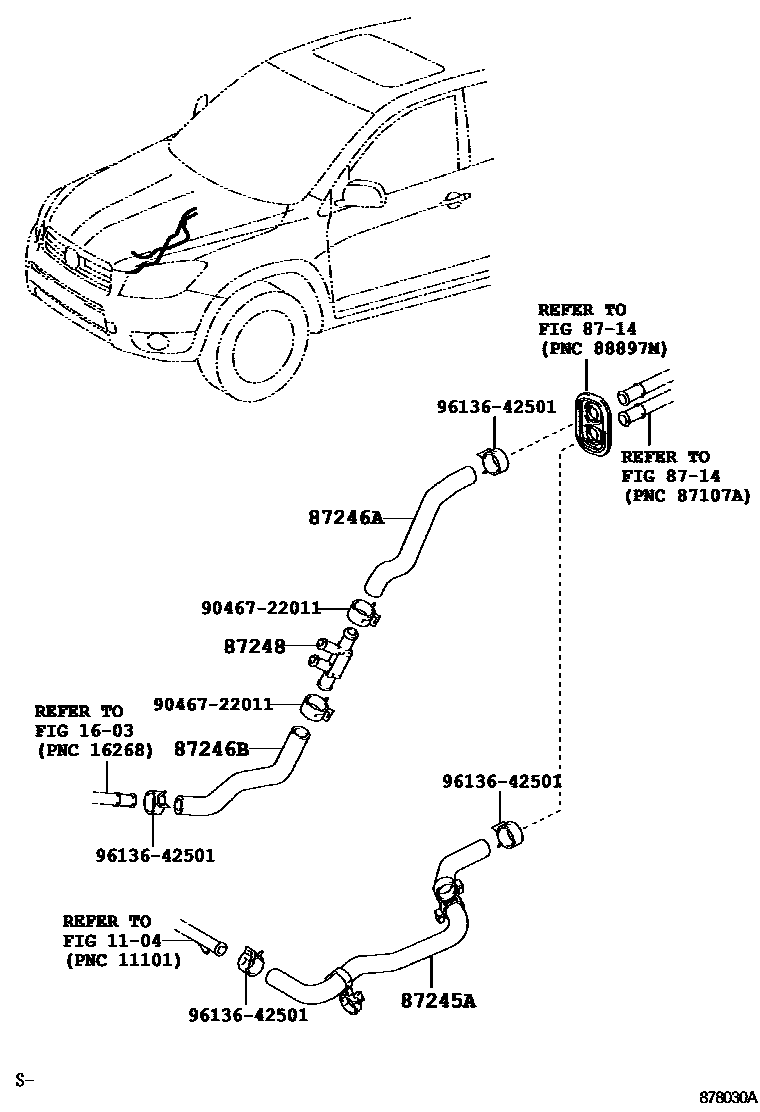

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1COLD SPEC 0005 1 0006 1 0007 1

1104

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87209-42060iACA33..X..GCC;ACA33,38..ARL,GEN¥2,610200511-201212

main87209-42080iALA3#200511-201212

main87209-42120iZSA3#..6F200812-201212

main87245-42380iGSA33¥2,000200708-201212

main87245-42430iZSA30..CVFC200812-201212

87246AHOSE, HEATER WATER, OUTLET A

main87209-42070iGSA33¥2,320200708-201212

main87245-42330iALA30200511-201212

COLD AREA SPEC

main87245-42350iACA30..5F;ACA31,33..G..(EUR,GCC)200511-201212

main87245-42360iACA30..4FC¥1,490200511-201212

main87245-42450iZSA3#200812-201212

87246BHOSE, HEATER WATER, OUTLET B

main87245-42370iACA30..4FC¥1,170200511-201212

87248PIPE SUB-ASSY, WATER

main87248-12310iZSA30..CVFC201208-201212

main87248-42010iACA30..4FC200511-201207

sub87248-42040

main87248-42030iZSA30..CVFC200812-201207

sub87248-12310

main87248-42040iACA30..4FC201208-201212

sub87248-42041

9046722011

main90467-22011¥240

9613642501

main96136-42501¥200

9 parts on this diagram · 7 diagrams in section
