ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-42280iACA30,ALA30..RHD200511-201112

main86101-42281iACA30,ALA3#,ZSA3#..RHD201112-201212

AUDIO-RADIO LESS

main86101-42310iACA38;ACA33..LHD..X;ACA33..G..GEN200511-201112

main86101-42311iACA33,38..GCC,GEN201112-201212

AUDIO-RADIO LESS

main86101-42460iACA30,ALA3#,ZSA3#..RHD200812-201112

main86101-42461iACA30,ALA3#,ZSA3#..RHD201112-201212

main86101-42470iACA30,33,ALA3#,ZSA3#..LHD..EUR200812-201112

main86101-42471iACA30,33,ALA3#,ZSA3#..LHD..EUR201112-201212

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-42290iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200812

main86101-42300iACA30,ALA3#,ZSA3#200511-201112

main86101-42301iACA30,ALA3#,ZSA3#201112-201212

main86101-42490iACA33,38,GSA33200808-201112

main86101-42491iACA33,38,GSA33201112-201212

86300ANTENNA ASSY, W/HOLDER

main86300-42110iACA33,38,GSA33..ARL,GEN200511-200808

main86300-42140iACA30,31,ALA30200511-200812

main86300-42150iACA33..X..GCC200511-200812

main86300-42170iACA30,ALA3#,ZSA3#200812-201212

main86300-42180iACA33,38,GSA33200808-201212

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42080iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

main86309-52040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200812

86396NUT, ANTENNA

main86396-20040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200812

main86396-30050iACA30,33,38,ALA3#,GSA33,ZSA3#200808-200910

main86396-47010iACA3#,ALA3#,GSA33,ZSA3#200911-201212

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

8614552010CONNECTOR, ANTENNA MALE

main86145-52010

9011906915

main90119-06915

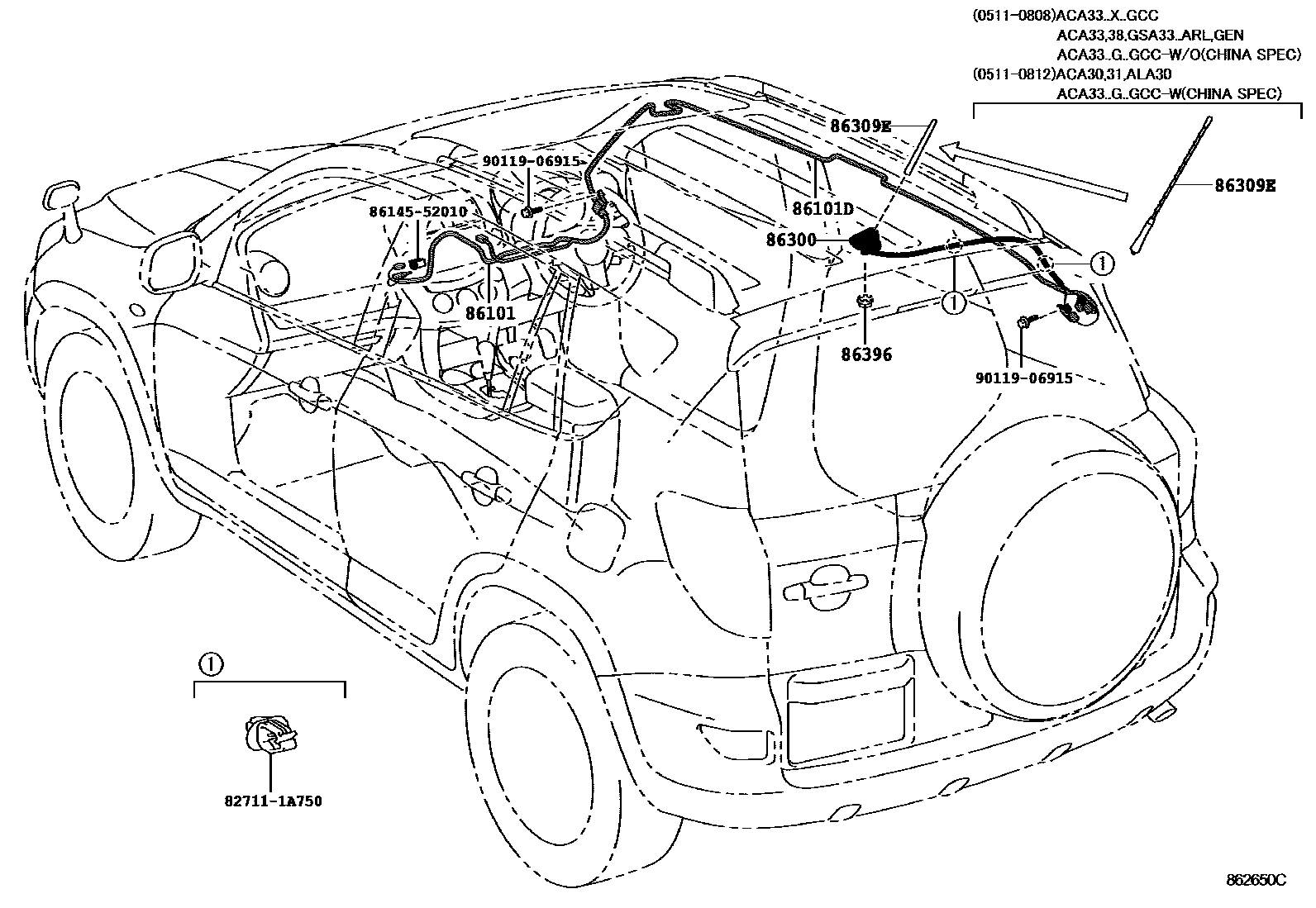

8 parts on this diagram · 1 diagram in section
