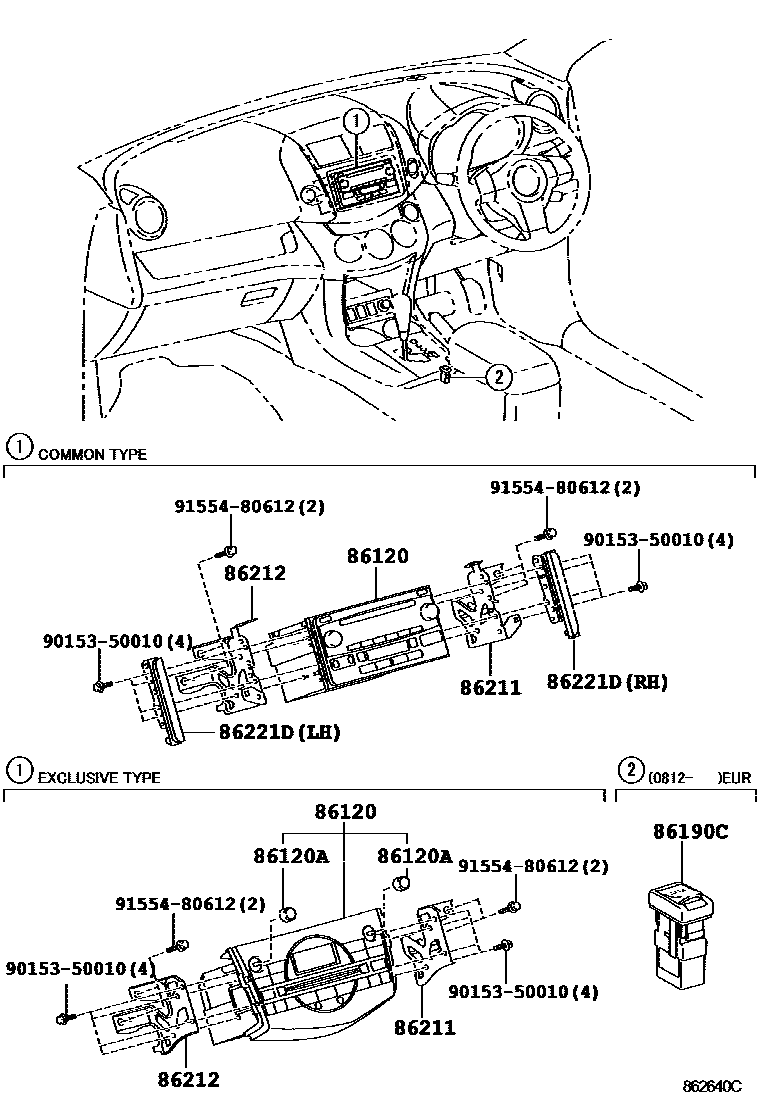

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-28590iACA33,38..ARL201104-201212

FUJITSU TEN,ID=22814,NEW ZEALAND SPEC

sub86120-28591

main86120-28590iACA33,38..ARL201104-201212

FUJITSU TEN,ID=22814,SINGAPORE SPEC

sub86120-28591

main86120-28590iACA33,38..ARL201104-201212

FUJITSU TEN,ID=22814,AUSTRALIA SPEC

sub86120-28591

main86120-28590iACA33,38..ARL201104-201212

FUJITSU TEN,ID=22814

sub86120-28591

main86120-28590iACA33,38..ARL,GCC201104-201212

FUJITSU TEN,ID=22814,AUDIO-CD,MULTI-PANEL

sub86120-28591

main86120-28590iACA33,38..ARL,GCC201104-201212

FUJITSU TEN,ID=22814,TRINIDAD SPEC

sub86120-28591

main86120-28590iACA33,38..ARL,GCC201104-201212

FUJITSU TEN,ID=22814,BERMUDA SPEC

sub86120-28591

main86120-28590iACA33,38..ARL,GCC201104-201212

FUJITSU TEN,ID=22814,JAMAICA SPEC

sub86120-28591

main86120-28590iACA33,38..ARL,GCC201104-201212

FUJITSU TEN,ID=22814,AUDIO-RADIO LESS

sub86120-28591

main86120-28590iACA33,38..ARL,GCC201104-201212

FUJITSU TEN,ID=22814,BRUNEI SPEC

sub86120-28591

main86120-42140iACA30,ALA30..X..(DCR,HTWC)200511-200805

MATSUSHITA, ID=58826,AUDIO-RADIO LESS

sub86120-42141

main86120-42140iACA30,ALA30..X..(DCR,HTWC)200511-200805

MATSUSHITA, ID=58826,WITH(FRONT WHEEL SPLASH SHIELD)

sub86120-42141

main86120-42140iACA30,ALA30..X..(DCR,HTWC)200511-200805

MATSUSHITA, ID=58826

sub86120-42141

main86120-42141iACA30,ALA30..X..(DCR,HTWC)200806-200812

MATSUSHITA, ID=58826,WITH(FRONT WHEEL SPLASH SHIELD)

main86120-42141iACA30,ALA30..X..(DCR,HTWC)200806-200812

MATSUSHITA, ID=58826,AUDIO-RADIO LESS

main86120-42141iACA30,ALA30..X200806-200812

MATSUSHITA, ID=58826

main86120-42220iACA30,31,ALA30..G200511-200805

MATSUSHITA, ID=58827

sub86120-42221

main86120-42220iACA30,ALA30..G200511-200805

MATSUSHITA, ID=58827,AUDIO-RADIO LESS

sub86120-42221

main86120-42221iACA30,ALA30..G200806-200812

MATSUSHITA, ID=58827,AUDIO-RADIO LESS

main86120-42221iACA30,31,ALA30..G200806-200812

MATSUSHITA, ID=58827

main86120-42230iACA33..G..GCC200511-200812

MATSUSHITA, ID=57821,AUDIO-AM/FM,CASSETTE,CD6CH

main86120-42270iACA30,ALA3#,ZSA3#..X200812-201212

MATSUSHITA, ID=53830,AUDIO-RADIO LESS

main86120-42270iACA30,ALA3#,ZSA3#..X200812-201212

MATSUSHITA, ID=53830

main86120-42280iALA3#,ZSA3#..G200812-201212

MATSUSHITA, ID=53831,AUDIO-RADIO LESS

main86120-42280iALA3#,ZSA3#..G200812-201212

MATSUSHITA, ID=53831

main86120-42280iACA30,ALA3#,ZSA3#..G200812-201212

MATSUSHITA, ID=53831,AUDIO-HDD-NAVIGATION,CD,BLUETOOTH,UNIQUE-PANEL

main86120-42280iACA30,ALA3#,ZSA3#..G200812-201212

MATSUSHITA, ID=53831,AUDIO-DVD-NAVIGATION,CD,BLUETOOTH,MULTI-PANEL

main86120-42280iALA3#,ZSA3#..G..(DCRE,DCRL,HTWVM)..BTYPE201002-201212

MATSUSHITA, ID=53831,EURO-AUDIO LESS PACKAGE&AUDIO-EURO-LESSPACK(DA-AFTER)

main86120-42280iALA3#,ZSA3#..G..(DCRE,DCRL,HTWVM)..BTYPE201002-201212

MATSUSHITA, ID=53831,AUDIO-EURO-LESSPACK(DA-AFTER)

main86120-42340iACA33,38..G..(GCC,GEN)200808-201212

FUJITSU TEN,ID=32817,AUDIO-6CD CHANGER,MULTI-PANEL

sub86120-42341

main86120-52560iACA33..X..ARL200511-201104

FUJITSU TEN,ID=17421,SINGAPORE SPEC

main86120-52560iACA33..X..(ARL,GCC)200511-201104

FUJITSU TEN,ID=17421

main86120-52560iACA33..X..(ARL,GCC)200511-200808

FUJITSU TEN,ID=17421,SAUDI ARABIA SPEC

main86120-52560iACA33..X..(ARL,GCC)200511-201104

FUJITSU TEN,ID=17421,AUSTRALIA SPEC

main86120-52560iACA33..X..(ARL,GCC)200511-201104

FUJITSU TEN,ID=17421,NEW ZEALAND SPEC

main86120-52560iACA33..X..(ARL,GCC)200511-201104

FUJITSU TEN,ID=17421,BRUNEI SPEC

main86120-52560iACA33..X..(ARL,GCC)200511-201104

FUJITSU TEN,ID=17421,AUDIO-RADIO LESS

main86120-52560iACA33,38..X..(ARL,GCC)200808-201104

FUJITSU TEN,ID=17421,JAMAICA SPEC

main86120-52560iACA33,38..X..(ARL,GCC)200808-201104

FUJITSU TEN,ID=17421,BERMUDA SPEC

main86120-52560iACA33,38..X..(ARL,GCC)200808-201104

FUJITSU TEN,ID=17421,TRINIDAD SPEC

main86120-52710iACA33,38..G..ARL200511-201104

PIONEER,ID=P7859,SINGAPORE SPEC

sub86120-52711

main86120-52710iACA33..4FC..G..ARL200511-201104

PIONEER,ID=P7859,AUSTRALIA SPEC

sub86120-52711

main86120-52710iACA33..4FC..G..ARL200511-201104

PIONEER,ID=P7859,NEW ZEALAND SPEC

sub86120-52711

main86120-52710iACA33..4FC..G..ARL200511-201104

PIONEER,ID=P7859,BRUNEI SPEC

sub86120-52711

main86120-52710iACA33..4FC..G..ARL200511-201104

PIONEER,ID=P7859,AUDIO-RADIO LESS

sub86120-52711

main86120-52710iACA33..4FC..G..ARL200808-201104

PIONEER,ID=P7859,AUDIO-CASSETTE,CD,MULTI-PANEL

sub86120-52711

main86120-52710iACA33..4FC..G..ARL200808-201104

PIONEER,ID=P7859,JAMAICA SPEC

sub86120-52711

main86120-52710iACA33..4FC..G..ARL200808-201104

PIONEER,ID=P7859,BERMUDA SPEC

sub86120-52711

main86120-52710iACA33..4FC..G..ARL200808-201104

PIONEER,ID=P7859,TRINIDAD SPEC

sub86120-52711

main86120-52710iACA33,38..G..(ARL,GCC)200511-201104

PIONEER,ID=P7859

sub86120-52711

main86120-52710iACA33,38..LHD..X201011-201103

PIONEER,ID=P7859,SPECIAL EDITION

sub86120-52711

main86120-52710iACA33..G..GCC200511-200812

PIONEER,ID=P7859,SAUDI ARABIA SPEC

sub86120-52711

main86120-52710iACA33,38..GEN200511-200808

PIONEER,ID=P7859,AUDIO-AM/FM,CASSETTE,CD

sub86120-52711

86120AKNOB, RADIO RECEIVER SWITCH

main90010-24125iACA30,ALA30..X..(DCR,HTWC)200511-200812

AUDIO-RADIO LESS

main90010-24125iACA30,31,ALA30200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main90010-24135iACA30,33,ALA3#,ZSA3#..EUR200812-201212

AUDIO-RADIO LESS

main90010-24135iACA30,33,ALA3#,ZSA3#..EUR200812-201212

AUDIO-HDD-NAVIGATION,CD,BLUETOOTH,UNIQUE-PANEL

main90010-24135iACA30,ALA3#,ZSA3#200812-201212

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH,MULTI-PANEL

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-42010iACA30,ALA3#,ZSA3#200812-201212

AUDIO-RADIO LESS

86211BRACKET, RADIO, NO.1

main86211-42050iACA30,ALA30200511-200812

AUDIO-RADIO LESS

main86211-42050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201112

main86211-42060iACA30,31,ALA30200511-201212

main86211-42090iACA33,38,GSA33..ARL,GCC,GEN201112-201212

AUDIO-EURO-LESSPACK(DA-AFTER)

main86211-42090iACA30,ALA3#,ZSA3#201112-201212

AUDIO-RADIO LESS

86212BRACKET, RADIO, NO.2

main86212-42050iACA30,ALA30200511-200812

AUDIO-RADIO LESS

main86212-42050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201112

main86212-42060iACA30,33,ALA3#,ZSA3#..EUR200511-201212

main86212-42090iACA33,38,GSA33..ARL,GCC,GEN201112-201212

AUDIO-EURO-LESSPACK(DA-AFTER)

main86212-42090iALA3#,ZSA3#..G..(DCRE,DCRL,HTWVM)201112-201212

AUDIO-RADIO LESS

86221DPANEL, RADIO RECEIVER

main86221-52050iACA33..4FC..G..ARL200511-200808

AUSTRALIA SPEC,LH

main86221-52050iACA33..X;ACA38,GSA33;ACA33..G..GEN200511-201212

LH

main86221-52050iACA33..X;ACA38,GSA33;ACA33..G..GEN200511-200808

SINGAPORE SPEC,LH

main86221-52050iACA33..X;ACA38,GSA33;ACA33..G..GEN200511-200808

NEW ZEALAND SPEC,LH

main86221-52050iACA33..X;ACA38,GSA33;ACA33..G..GEN200511-200808

BRUNEI SPEC,LH

main86221-52050iGSA33;ACA33,38..GEN200808-201212

AUDIO-RADIO LESS,LH

main86221-52060iACA33..G..ARL200511-201212

RH

main86221-52060iACA33..G..ARL200511-200808

AUSTRALIA SPEC,RH

main86221-52060iACA33..G..ARL200511-200808

SINGAPORE SPEC,RH

main86221-52060iACA33..G..ARL200511-200808

NEW ZEALAND SPEC,RH

main86221-52060iACA33..G..ARL200511-200808

BRUNEI SPEC,RH

main86221-52060iALA30..G;ACA30,ZSA3#;ALA35..ATYPE;ALA30..X..ATYPE;ACA33,38..G..GCC;ALA35..DCRE..BTYPE;ALA30..X..DCRE..BTYPE200808-201212

AUDIO-RADIO LESS,RH

9015350010

main90153-50010

9155480612

main91554-80612

8 parts on this diagram · 3 diagrams in section
