TIRE PRESSURE WARNING SYSTEM

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-42010iALA30..DCRL200511-200701

235/55R18H ALMINUM 7.5J

sub89760-42011

main89760-42010iALA30..DCRL200701-200805

235/55R18H ALMINUM 7.5J&WITHOUT SPARE TIRE

sub89760-42011

main89760-42011iALA30..DCRL200806-200812

235/55R18H ALMINUM 7.5J&WITHOUT SPARE TIRE

main89760-42011iALA30..6F..DCRL200812-201002

TIRE & DISK WHEEL-235/55R18H-R/F ALM 7.5J GRAY

89765ANTENNA, TIRE PRESSURE, FRONT RH

main89765-42010iALA30..DCRL200511-200701

235/55R18H ALMINUM 7.5J

main89765-42010iALA30..DCRL200701-200812

235/55R18H ALMINUM 7.5J&WITHOUT SPARE TIRE

main89765-42010iALA30..6F..DCRL200812-201002

TIRE & DISK WHEEL-235/55R18H-R/F ALM 7.5J GRAY

89768ANTENNA, TIRE PRESSURE, REAR LH

main89768-42010iALA30..DCRL200511-200701

235/55R18H ALMINUM 7.5J

main89768-42010iALA30..DCRL200701-200812

235/55R18H ALMINUM 7.5J&WITHOUT SPARE TIRE

main89768-42010iALA30..6F..DCRL200812-201002

TIRE & DISK WHEEL-235/55R18H-R/F ALM 7.5J GRAY

9011906915

main90119-06915

9017906274

main90179-06274

91631J0612

main91631-J0612

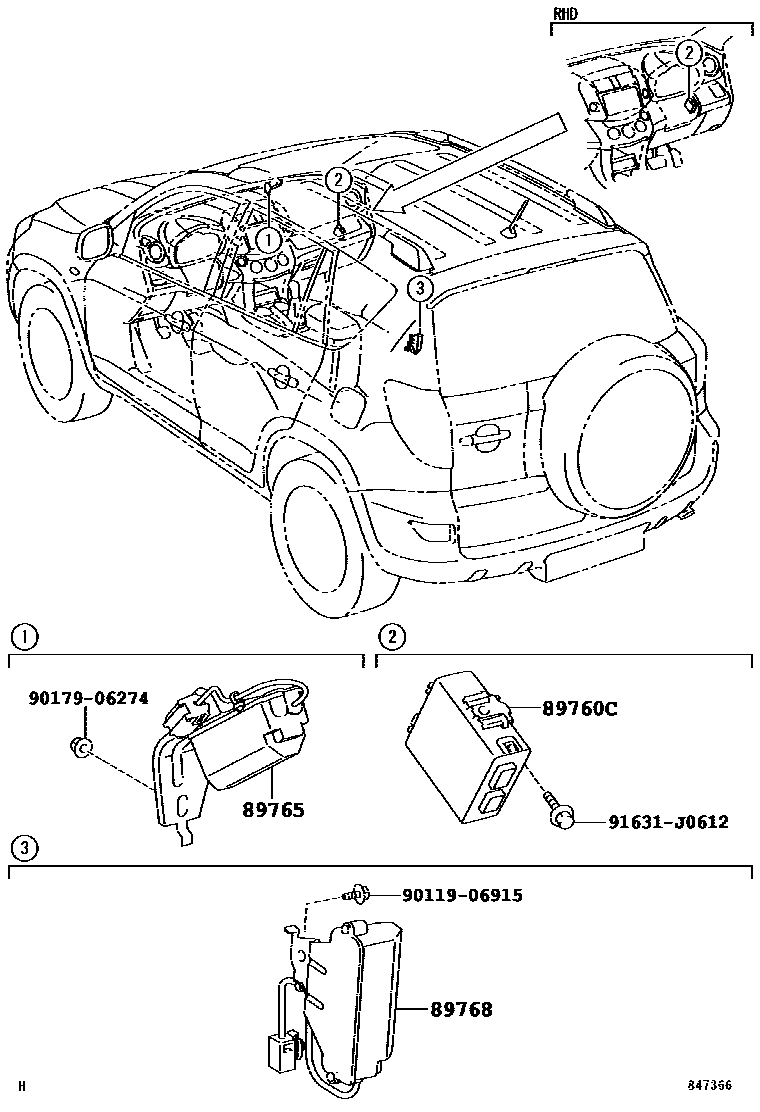

6 parts on this diagram · 1 diagram in section
