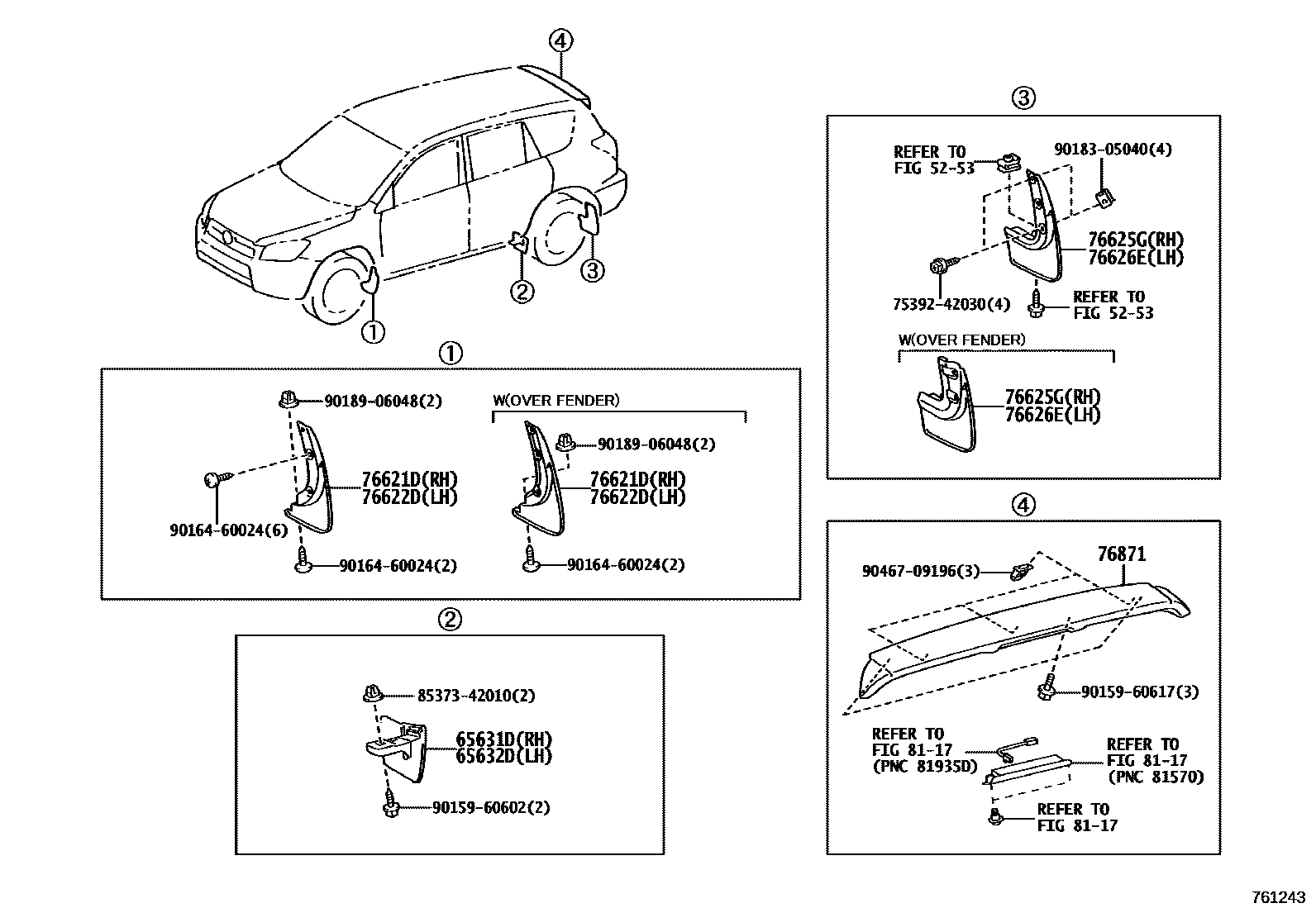

SPOILER & SIDE MUDGUARD

0001 1SPOILER & MUD GUARD 0002 1OVER FENDER

5253

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-42010iACA33..G..GCC;ACA30,31,ALA30¥1,840200511-201212

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN¥1,840200511-201212

76621DMUDGUARD, FRONT FENDER, RH

76622DMUDGUARD, FRONT FENDER, LH

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-42100iACA33,38..G..GEN¥2,570200511-201212

OVER FENDER-WITH&MUD GUARD-WITH(REAR ONLY)

main76625-42100iACA33,38,GSA33..G..ARL¥2,570200808-201212

MUD GUARD-WITH(REAR ONLY)

main76625-42120iACA38;ACA33..LHD..X;ACA33..G..GEN¥2,570200511-201212

MUD GUARD-WITH(REAR ONLY)

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-42160iACA33,GSA33..G..ARL¥2,570200511-201212

OVER FENDER-WITH&MUD GUARD-WITH(REAR ONLY)

main76626-42160iACA33,38..G..GEN¥2,570200808-201212

MUD GUARD-WITH(REAR ONLY)

main76626-42180iACA33,GSA33..X..ARL¥2,570200511-201212

MUD GUARD-WITH(REAR ONLY)

76871SPOILER, REAR

main76085-42901-A0iACA33,38,GSA33..X;ACA30,ALA30..DCR,DCRE,HTWC200701-201212

SUPER WHITE 2,040

sub76085-42905¥33,600

main76085-42901-A1iACA38;ACA33..4FC..X;ACA33..LHD..5F;ACA30,33,ALA3#,GSA33,ZSA3#..G200701-201212

WHITE PEARL CS.,070

sub76085-42905¥33,600

main76085-42901-B0iACA30,31,33,ALA30,GSA33..ARL,EUR200701-200812

DK.GRAY MC.,1E0

sub76085-42905¥33,600

main76085-42901-B1iACA30,33,38,ALA3#,GSA33,ZSA3#200701-201212

SILVER ME.,1F7

sub76085-42905¥33,600

main76085-42901-B2iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

GRAY ME.,1G3

sub76085-42905¥33,600

main76085-42901-B3iACA3#,ALA3#,GSA33,ZSA3#201002-201212

DK. STEEL MC.,1H2

sub76085-42905¥33,600

main76085-42901-C0iACA30,33,38,ALA3#,GSA33,ZSA3#200701-201212

BLACK,202

sub76085-42905¥33,600

main76085-42901-D0iACA33,38,GSA33;ACA30,31,ALA30..G200701-201212

RED M.M.,3R3

sub76085-42905¥33,600

main76085-42901-D1iACA30,33,ALA3#,ZSA3#..EUR201002-201008

DK.RED.M.M.,3Q3

sub76085-42905¥33,600

main76085-42901-E0iACA33,38,GSA33;ACA30,31,ALA30..G200701-200812

BEIGE ME.,4R4

sub76085-42905¥33,600

main76085-42901-E1iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

BRONZE M.M.,4T3

sub76085-42905¥33,600

main76085-42901-E2iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

BEIGE ME.,4T8

sub76085-42905¥33,600

main76085-42901-G0iACA30,33,38,ALA3#,GSA33,ZSA3#..ATYPE200701-201008

DK.GREEN MC.,6T3

sub76085-42905¥33,600

main76085-42901-G1iACA33,38,GSA33;ACA30,31,ALA30..G200701-200812

LT.GREEN ME.,6T6

sub76085-42905¥33,600

main76085-42901-J0iACA30,33,38,ALA30..DCR,DCRL,HTWC200701-200812

GRAYISH BLUE ME.,8R3 ,8S6

sub76085-42905¥33,600

main76085-42901-J0iACA30,33,38,ALA30..DCR,DCRL,HTWC200701-201212

GRAYISH BLUE ME.,8R3

sub76085-42905¥33,600

main76085-42901-J1iACA3#,ALA30,GSA33200701-200812

DK.BLUE MC.,8S6

sub76085-42905¥33,600

main76085-42901-K0iACA30,ALA3#,ZSA3#..G200812-201002

DK.VIOLET M.M.,9AF

sub76085-42905¥33,600

main76871-42060-A0iACA33,38..X;ACA30,ALA30..DCR,HTWC200511-200701

SUPER WHITE 2,040

sub76085-42901¥67,100

main76871-42060-A1iACA33,38..G200511-200701

WHITE PEARL CS.,070

sub76085-42901¥67,100

main76871-42060-B0iACA30,33,ALA30..ARL,EUR200511-200701

DK.GRAY MC.,1E0

sub76085-42901¥67,100

main76871-42060-B1iACA3#,ALA30200511-200701

SILVER ME.,1F7

sub76085-42901¥67,100

main76871-42060-C0iACA3#,ALA30200511-200701

BLACK,202

sub76085-42901¥67,100

main76871-42060-D0iACA33,38;ACA30,ALA30..G200511-200701

RED M.M.,3R3

sub76085-42901¥67,100

main76871-42060-E0iACA33,38;ACA30,ALA30..G200511-200701

BEIGE ME.,4R4

sub76085-42901¥67,100

main76871-42060-G0iACA33,38;ACA30,ALA30..G200511-200701

DK.GREEN MC.,6T3

sub76085-42901¥67,100

main76871-42060-G1iACA33,38;ACA30,ALA30..G200511-200701

LT.GREEN ME.,6T6

sub76085-42901¥67,100

main76871-42060-J0iACA3#,ALA30200511-200701

GRAYISH BLUE ME.,8R3

sub76085-42901¥67,100

main76871-42060-J1iACA3#,ALA30200511-200701

DK.BLUE MC.,8S6

sub76085-42901¥67,100

8117

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030¥280

8537342010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-42010¥180

9015960602

main90159-60602¥60

9015960617

main90159-60617¥90

9016460024

main90164-60024¥120

9018305040

main90183-05040¥80

9018906048

main90189-06048¥140

9046709196

main90467-09196¥110

17 parts on this diagram · 2 diagrams in section
