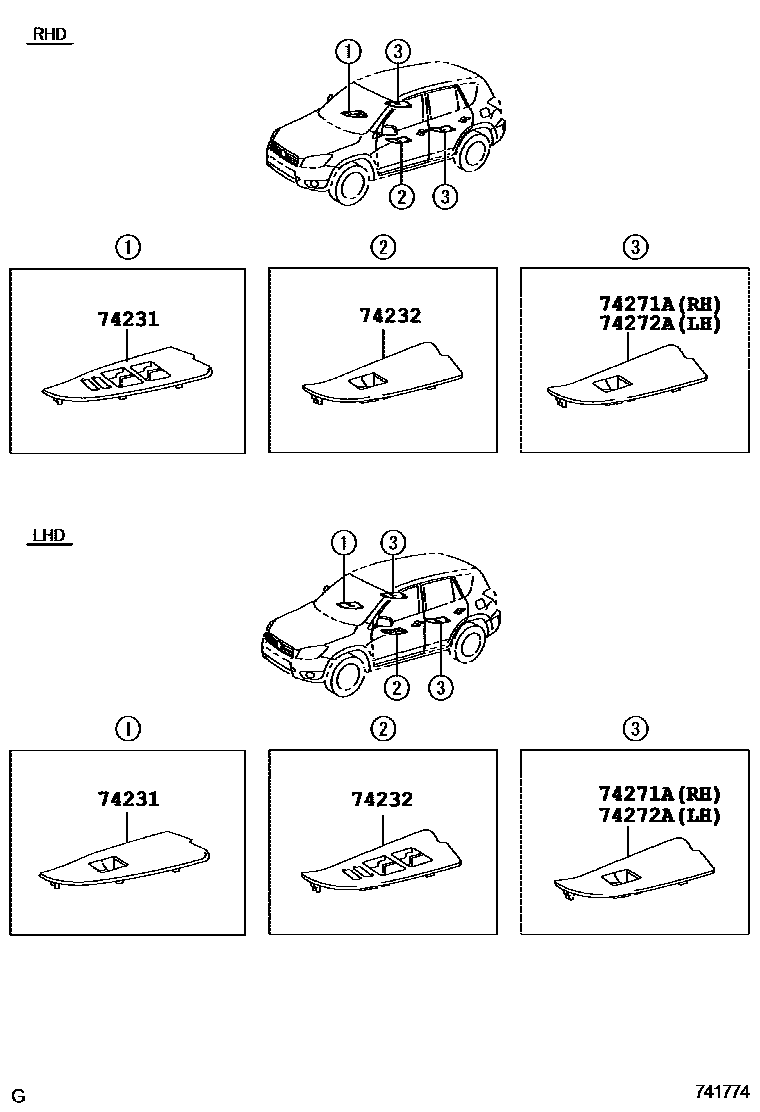

ARMREST & VISOR

0001 1ARMREST(SWITCH BASE) 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-42080-B0iACA30,ALA3#,ZSA3#..RHD..G200812-201212

DK.GRAY,TRIM1#,4#

main74231-42090-B0iACA30,ALA30..LHD..X200511-200812

DK.GRAY,TRIM1#,4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-42060-B0iGSA33;ACA30,ALA30..RHD..X200511-200812

DK.GRAY,TRIM1#,4#

main74232-42070-B0iACA30,ALA30..LHD..X200511-200812

DK.GRAY,TRIM1#,4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-42010-B0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

DK.GRAY,TRIM1#,4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-42010-B0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

DK.GRAY,TRIM1#,4#

4 parts on this diagram · 2 diagrams in section
