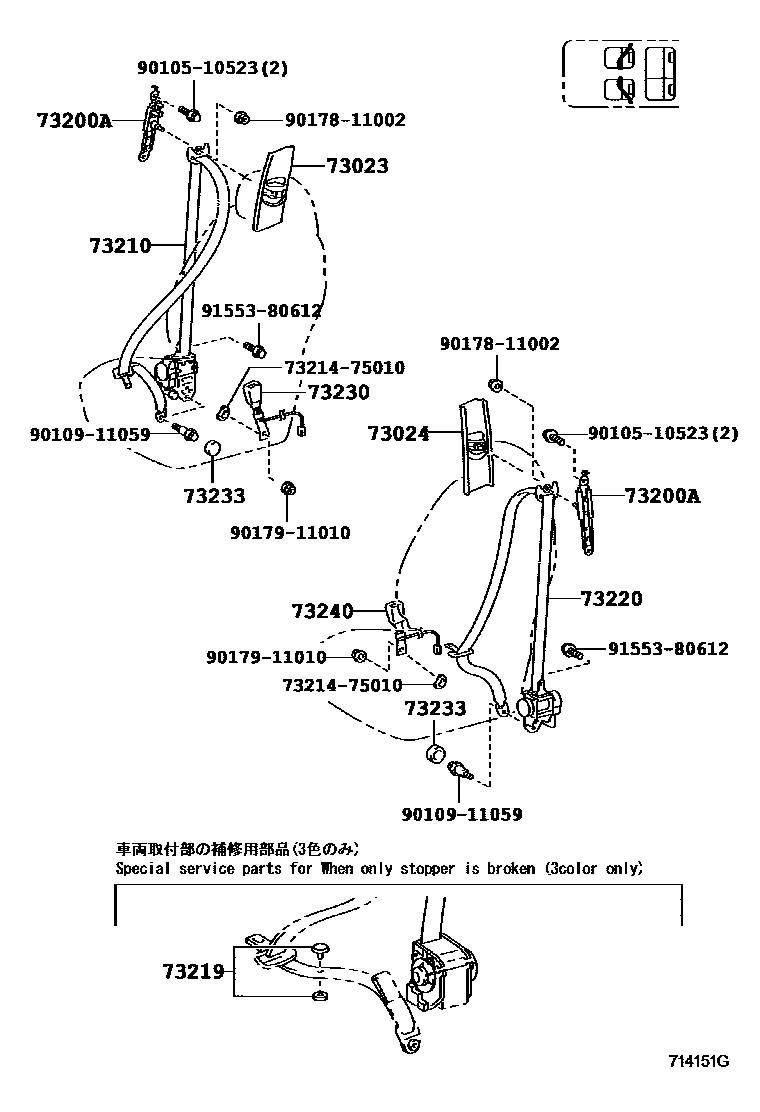

SEAT BELT

0001 1FRONT SEAT 0002 1REAR SEAT 0003 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53010-A1iACA33,38;ACA30,31,ALA30..G200511-200812

IVORY,TRIM4#

sub73023-53011

sub73023-53020

main73023-53010-B1iACA3#,ALA30,GSA33200511-201212

GRAY,TRIM1#

sub73023-53011

sub73023-53020

main73023-53010-E1iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

sub73023-53011

sub73023-53020

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53010-A1iACA33,38;ACA30,31,ALA30..G200511-200812

IVORY,TRIM4#

sub73024-53011

sub73024-53020

main73024-53010-B1iACA3#,ALA30,GSA33200511-201212

GRAY,TRIM1#

sub73024-53011

sub73024-53020

main73024-53010-E1iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

sub73024-53011

sub73024-53020

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-42320-B2iACA33,38..4FC..GEN200511-201008

DK.GRAY,TRIM1#

sub73210-42331

main73210-42320-B2iACA33,38..4FC..GEN200808-201008

DK.GRAY,TRIM13

sub73210-42331

main73210-42320-B3iACA33,38..GCC;ACA33,38..5F..GEN200511-201008

GRAY,TRIM1#

sub73210-42331

main73210-42320-B3iACA33,38..4FC..GEN200808-201008

GRAY,TRIM10

sub73210-42331

main73210-42320-E1iACA33,38..LHD;ACA30,31,ALA30..G200511-200812

FAWN,TRIM4#

sub73210-42331

main73210-42320-E2iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201008

SAND BEIGE,TRIM4#

sub73210-42331

main73210-42330-B2iACA33,38..GEN201008-201206

DK.GRAY,TRIM1#

sub73210-42331

main73210-42330-B2iACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR201008-201206

DK.GRAY,TRIM13

sub73210-42331

main73210-42330-B3iACA33,38..GEN201008-201206

GRAY,TRIM10

sub73210-42331

main73210-42330-B3iACA33,38..GEN201008-201206

GRAY,TRIM1#

sub73210-42331

main73210-42330-E0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G201008-201206

SAND BEIGE/IVORY,TRIM4#

sub73210-42331

main73210-42331-B2iACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR201207-201212

DK.GRAY,TRIM13

main73210-42331-B2iACA33,38..GEN201207-201212

DK.GRAY,TRIM1#

main73210-42331-B3iACA33,38..GEN201207-201212

GRAY,TRIM1#

main73210-42331-B3iACA33,38..GEN201207-201212

GRAY,TRIM10

main73210-42331-E0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G201207-201212

SAND BEIGE/IVORY,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

BLACK

main73219-33020iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

GRAY

main73219-33030iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-42140-B2iACA33,38..4FC..GEN200511-201008

DK.GRAY,TRIM1#

sub73220-42301

main73220-42140-B2iACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR200808-201008

DK.GRAY,TRIM13

sub73220-42301

main73220-42140-B3iACA33,38..4FC..GEN200511-201008

GRAY,TRIM1#

sub73220-42301

main73220-42140-B3iACA33,38..4FC..GEN200808-201008

GRAY,TRIM10

sub73220-42301

main73220-42140-E1iACA33,38..LHD;ACA30,31,ALA30..G200511-200812

FAWN,TRIM4#

sub73220-42301

main73220-42140-E2iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201008

SAND BEIGE,TRIM4#

sub73220-42301

main73220-42300-B2iACA33,38..GEN201008-201206

DK.GRAY,TRIM1#

sub73220-42301

main73220-42300-B2iACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR201008-201206

DK.GRAY,TRIM13

sub73220-42301

main73220-42300-B3iACA33,38..GEN201008-201206

GRAY,TRIM10

sub73220-42301

main73220-42300-B3iACA33,38..GEN201008-201206

GRAY,TRIM1#

sub73220-42301

main73220-42300-E0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G201008-201206

SAND BEIGE/IVORY,TRIM4#

sub73220-42301

main73220-42301-B2iACA33,38..GEN201207-201212

DK.GRAY,TRIM1#

main73220-42301-B2iACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR201207-201212

DK.GRAY,TRIM13

main73220-42301-B3iACA33,38..GCC201207-201212

GRAY,TRIM1#

main73220-42301-B3iACA33,38..GEN201207-201212

GRAY,TRIM10

main73220-42301-E0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G201207-201212

SAND BEIGE/IVORY,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-42100-B0iACA30,33,38,ALA3#,GSA33,ZSA3#..RHD200511-201212

DK.GRAY,TRIM1#

sub73230-42100

main73230-42100-E0iACA30,ALA30..RHD..G..(DCR,DCRE,HTWC)200511-200812

FAWN,TRIM4#

sub73230-42100

main73230-42100-E2iALA35,ZSA3#..RHD..G;ALA30..RHD..G..BTYPE;ACA30,ALA30..RHD..G..(DCR,DCRE,HTWC)..ATYPE200812-201212

SAND BEIGE,TRIM4#

sub73230-42100

main73230-42140-B0iACA33,38..GEN200808-201212

DK.GRAY,TRIM13

sub73230-42140

main73230-42140-B0iACA30,33,ALA3#,ZSA3#..LHD..EUR200511-201212

DK.GRAY,TRIM1#

sub73230-42140

main73230-42140-B2iACA33,38..GEN200511-201212

GRAY,TRIM1#

sub73230-42140

main73230-42140-B2iACA33,38..GEN200808-201212

GRAY,TRIM10

sub73230-42140

main73230-42140-E0iACA31,33,38..LHD;ACA30,ALA30..LHD..G..(DCR,DCRE,HTWC)200511-200812

FAWN,TRIM4#

sub73230-42140

main73230-42140-E0iALA30..LHD..DCRL200511-200812

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

sub73230-42140

main73230-42140-E2iACA33,38..LHD;ALA35,ZSA3#..LHD..G;ALA30..LHD..G..BTYPE;ACA30,ALA30..LHD..G..(DCR,DCRE,HTWC)..ATYPE200808-201212

SAND BEIGE,TRIM4#

sub73230-42140

73233COVER, LAP BELT OUTER ANCHOR

main73233-42030iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-42100-B0iACA30,ALA30..LHD200511-201212

DK.GRAY,TRIM1#

sub73230-42100

main73230-42100-B0iACA33,38..GEN200808-201212

DK.GRAY,TRIM13

sub73230-42100

main73230-42100-B2iACA33,38..GCC200808-201212

GRAY,TRIM10

sub73230-42100

main73230-42100-B2iACA33,38..LHD200511-201212

GRAY,TRIM1#

sub73230-42100

main73230-42100-E0iACA33,38..LHD;ACA30,ALA30..LHD..G..(DCR,DCRE,HTWC)200511-200812

FAWN,TRIM4#

sub73230-42100

main73230-42100-E2iACA33,38..GCC,GEN;ALA35,ZSA3#..LHD..G;ALA30..LHD..G..BTYPE;ACA30,ALA30..LHD..G..(DCR,DCRE,HTWC)..ATYPE200808-201212

SAND BEIGE,TRIM4#

sub73230-42100

main73230-42120-B2iACA33..EUR200812-201212

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

sub73230-42120

main73230-42120-B2iACA31200701-201212

DK.GRAY,TRIM1#

sub73230-42120

main73230-42120-E0iACA31200701-200812

FAWN,TRIM4#

sub73230-42120

main73230-42120-E2iACA33..EUR200812-201212

SAND BEIGE,TRIM4#

sub73230-42120

main73230-42140-B0iACA30,33,ALA30,GSA33..RHD200511-201212

DK.GRAY,TRIM1#

sub73230-42140

main73230-42140-E0iACA30,ALA30..RHD..G..(DCR,DCRE,HTWC)200511-200812

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

sub73230-42140

main73230-42140-E0iACA30,ALA30..RHD..G..(DCR,DCRE,HTWC)200511-200812

FAWN,TRIM4#

sub73230-42140

main73230-42140-E2iALA35,ZSA3#..RHD..G;ALA30..RHD..G..BTYPE;ACA30,ALA30..RHD..G..(DCR,DCRE,HTWC)..ATYPE200812-201212

SAND BEIGE,TRIM4#

sub73230-42140

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

15 parts on this diagram · 3 diagrams in section
