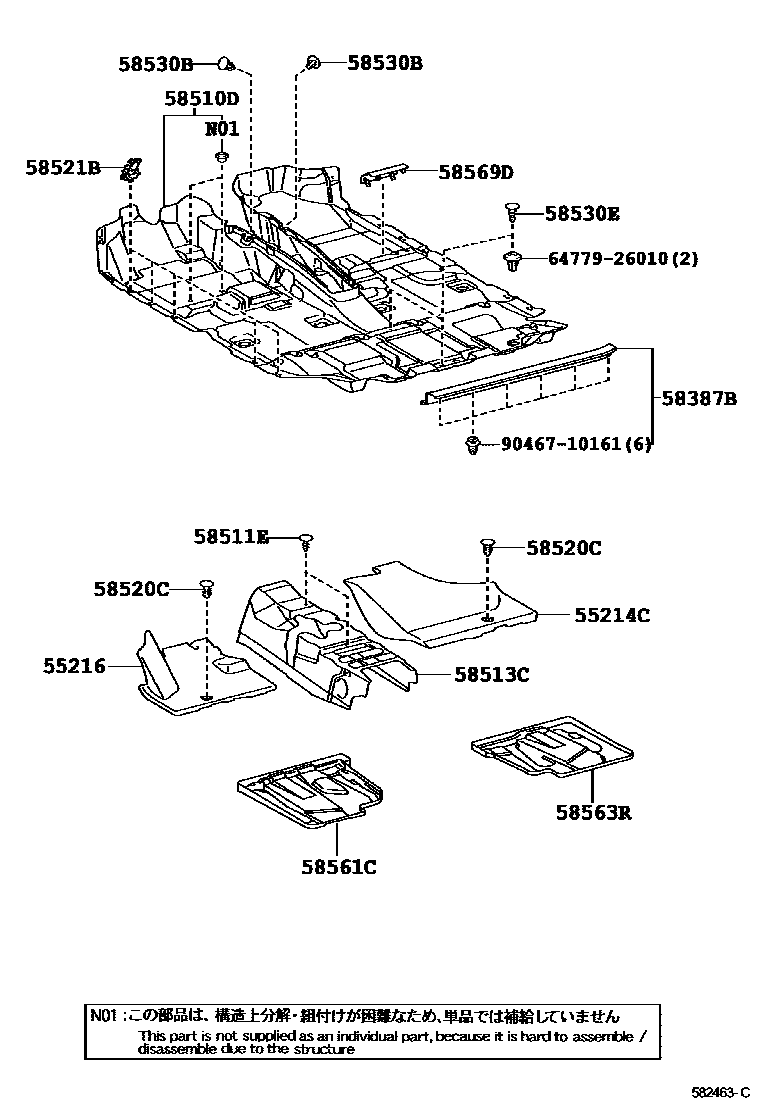

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-42040iACA30,ALA30..RHD200511-201212

main55214-42050iACA38;ACA33..LHD..X;ACA33..G..GEN200511-201212

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-42050iACA30,33,38,ALA30,GSA33,ZSA30..RHD..ATM200511-201212

main55216-42060iACA33..5F..ARL200511-201212

main55216-42070iACA38;ACA33..LHD..X;ACA33..G..GEN200511-201212

58387BPLATE, REAR FLOOR FINISH

main58387-42030-B0iGSA33200708-201212

DK.GRAY,TRIM1#

main58387-42030-B0iACA33,38200511-201212

DK.GRAY,TRIM1#,4#

main58387-42050-B0iACA30,ALA3#,ZSA3#..G200511-201212

DK.GRAY,TRIM1#,4#

main58387-42050-B0iACA30,ALA30..X200511-201212

DK.GRAY,TRIM1#

58510DCARPET ASSY, FLOOR, FRONT

main58510-42780-B0iACA30..RHD..4FC200511-200812

DK.GRAY,TRIM1#

sub58510-42780

main58510-42780-B1iACA30,ALA30,ZSA30..RHD..ATM200812-201212

DK.GRAY,TRIM1#

sub58510-42780

main58510-42780-E0iACA30..RHD..4FC..G200511-200812

FAWN,TRIM4#

sub58510-42780

main58510-42780-E2iACA30,ALA30,ZSA30..RHD..ATM..G200812-201212

FAWN,TRIM4#

sub58510-42780

main58510-42790-B0iACA30,ALA30..RHD..MTM200511-200812

DK.GRAY,TRIM1#

sub58510-42790

main58510-42790-B1iACA30,ALA3#,ZSA3#..RHD..MTM200812-201212

DK.GRAY,TRIM1#

sub58510-42790

main58510-42790-E0iACA30,ALA30..RHD..MTM..G200511-200812

FAWN,TRIM4#

sub58510-42790

main58510-42790-E2iACA30,ALA3#,ZSA3#..RHD..MTM..G200812-201212

FAWN,TRIM4#

sub58510-42790

main58510-42800-B1iACA33,GSA33..ATM..ARL200511-200808

DK.GRAY,TRIM1#

sub58510-42800

main58510-42800-B2iACA33,38,GSA33..ATM..ARL200808-201212

DK.GRAY,TRIM1#

sub58510-42800

main58510-42810-B1iACA33..5F..ARL200511-200808

DK.GRAY,TRIM1#

sub58510-42810

main58510-42810-B2iACA33,38..5F..ARL200808-201212

DK.GRAY,TRIM1#

sub58510-42810

main58510-42820-B0iACA30,31,ALA30..LHD200511-200812

DK.GRAY,TRIM1#

sub58510-42820

main58510-42820-B1iACA30,ALA3#,ZSA3#..LHD200812-201212

DK.GRAY,TRIM1#

sub58510-42820

main58510-42820-E0iACA30,31,ALA30..LHD..G200511-200812

FAWN,TRIM4#

sub58510-42820

main58510-42820-E2iACA30,ALA3#,ZSA3#..LHD..G200812-201212

FAWN,TRIM4#

sub58510-42820

main58510-42850-B0iACA33,38..LHD200511-200812

GRAY,TRIM1#

sub58510-42850

main58510-42850-B2iACA33,38..GEN200812-201212

DK.GRAY,TRIM1#

sub58510-42850

main58510-42850-B2iACA33..EUR200812-201212

DK.GRAY,TRIM13

sub58510-42850

main58510-42850-B3iACA33,38..GEN200812-201212

GRAY,TRIM10

sub58510-42850

main58510-42850-B3iACA33,38..GEN200808-201212

GRAY,TRIM1#

sub58510-42850

main58510-42850-E0iACA33,38..LHD200511-200808

FAWN,TRIM4#

sub58510-42850

main58510-42850-E2iACA33,38..LHD200808-201212

FAWN,TRIM4#

sub58510-42850

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-C0iACA3#,ALA30,GSA33200511-201212

BLACK

sub90467-05164

58513CMAT, FLOOR, FRONT CENTER

main58513-42010iALA35..ATYPE;ALA35..DCR..BTYPE;ALA30,ZSA3#..LHD..BTYPE;ALA35..LHD..DCRE..BTYPE;ALA30..RHD..X..DCR..BTYPE;ALA30,ZSA3#..(DCRE,DCRL,HTWVM)..ATYPE;ACA30,33,38,ALA30..LH200511-201212

sub58513-42011

58520CCLIP(FOR FRONT FLOOR CARPET)

main63399-26050-B2iACA3#,ALA30,GSA33200511-201212

GRAY

58521BHOOK, FLOOR CARPET

main58521-42040iACA3#,ALA30,GSA33200511-201212

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main64726-26010-B1iACA33,38..GEN200511-201212

DK.GRAY,TRIM13

main64726-26010-B1iACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR200511-201212

DK.GRAY,TRIM1#

main64726-26010-B2iACA33,38..GCC200511-201212

GRAY,TRIM1#

main64726-26010-B2iACA33..ARL200511-201212

GRAY,TRIM10

main64726-26010-E0iACA33,38;ACA30,31,ALA30..G200511-200812

FAWN,TRIM4#

main64726-26010-E1iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-42030iACA30,33,38,ALA3#,GSA33,ZSA3#..RHD200511-201212

sub58561-42031

main58561-42040iACA38;ACA33..LHD..X;ACA33..G..GEN200511-201212

sub58561-42041

58563RSILENCER, FRONT FLOOR, NO.3

main58563-42040iACA33,GSA33..ARL200511-201212

sub58563-42041

main58563-42050iACA38;ACA33..LHD..X;ACA33..G..GEN200511-201212

sub58563-42051

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-42020-B0iACA33,38..GEN200511-201212

DK.GRAY,TRIM13

sub58569-42020

main58569-42020-B0iACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR200511-201212

DK.GRAY,TRIM1#

sub58569-42020

main58569-42020-B1iACA33,38..GCC200511-201212

GRAY,TRIM10

sub58569-42020

main58569-42020-B1iACA33,38..LHD200511-201212

GRAY,TRIM1#

sub58569-42020

main58569-42020-E0iACA33,38;ACA30,31,ALA30..G200511-200812

FAWN,TRIM4#

sub58569-42020

main58569-42020-E1iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

sub58569-42020

6477926010TRAY, SPARE WHEEL COVER

main64779-26010

9046710161

main90467-10161

15 parts on this diagram · 4 diagrams in section
