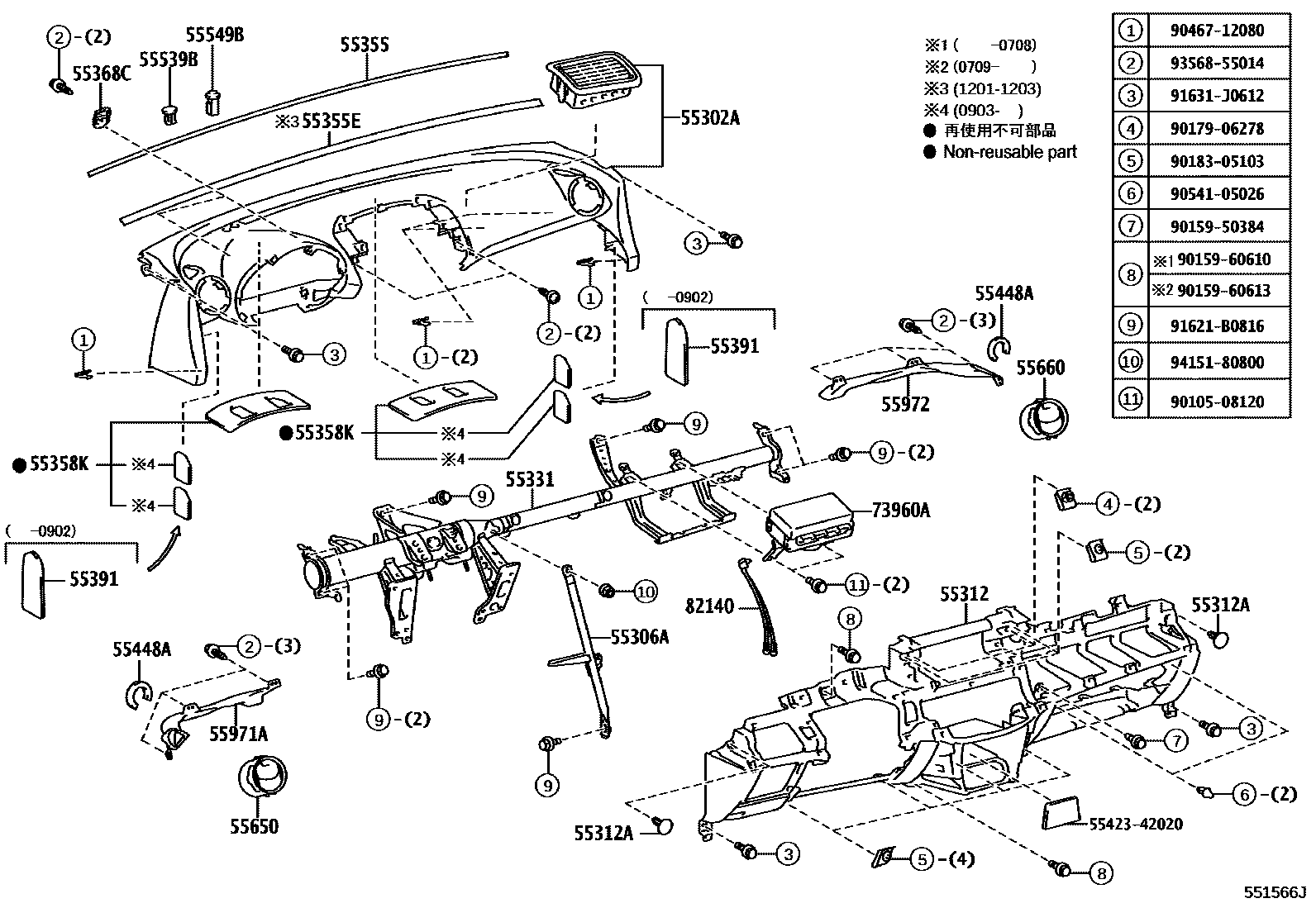

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-42901-B0iACA31,33,38..LHD;ACA30,ALA30..LHD..G200511-201212

DK.GRAY,TRIM1#,4#

sub55302-42908

main55302-42901-B0iACA31,33,38..LHD;ACA30,ALA30..LHD..G200511-201212

DK.GRAY,TRIM1#

sub55302-42908

main55302-42902-B0iACA33,GSA33..ARL;ACA30,ALA30..RHD..X200511-201212

DK.GRAY,TRIM1#

main55302-42902-B0iACA30,ALA3#,ZSA3#..RHD..G200511-201212

DK.GRAY,TRIM1#,4#

main55302-42903iALA3#..LHD..DCR..BTYPE201201-201203

sub55302-42901

main55302-42903-B0iACA33,38..LHD;ALA30..LHD..G..ATYPE;ACA30,ALA3#,ZSA3#..LHD..G..(DCRE,DCRL,HTWC,HTWVM)201201-201203

DK.GRAY,TRIM1#,4#

sub55302-42901

main55302-42903-B0iALA30..LHD..X..ATYPE;ACA30,ALA3#,ZSA3#..LHD..X..(DCRE,HTWC,HTWVM)201201-201203

DK.GRAY,TRIM1#

sub55302-42901

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-42080iACA30,33,ALA3#,ZSA3#..LHD..EUR200511-201212

main55306-42090iACA33..G..GCC200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main55306-42090iACA33..G..GCC200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main55306-42090iACA33,38..GCC,GEN200511-201212

main55306-42100iACA33,38..X..ARL¥2,620200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main55306-42100iACA30,ALA30..RHD¥2,620200511-201212

main55306-42110iACA33,GSA33..ARL¥2,260200511-201212

55312PANEL, INSTRUMENT, LOWER

main55312-42010-B0iACA33,38..GEN200808-201212

DK.GRAY,TRIM13

sub55312-42011

main55312-42010-B1iACA33,38..GEN200511-201212

GRAY,TRIM1#

sub55312-42011

main55312-42010-B1iACA33,38..GEN200808-201212

GRAY,TRIM10

sub55312-42011

main55312-42010-E0iACA33,38..LHD200511-200808

FAWN,TRIM4#

sub55312-42011

main55312-42010-E1iACA33,38..GCC,GEN200808-201212

SAND BEIGE,TRIM4#

sub55312-42011

main55312-42020-B0iACA33,38,GSA33..ARL200511-201212

DK.GRAY,TRIM1#

main55312-42020-E0iACA33..ARL200708-200808

FAWN,TRIM4#

main55312-42030-B0iACA30,31,ALA30..LHD200511-201212

DK.GRAY,TRIM1#

main55312-42030-E0iACA30,31,ALA30..LHD..G200511-200812

FAWN,TRIM4#

main55312-42030-E1iACA30,33,ALA3#,ZSA3#..LHD..G..EUR200812-201212

SAND BEIGE,TRIM4#

main55312-42040-B0iACA30,ALA30..RHD200511-201212

DK.GRAY,TRIM1#

main55312-42040-E0iACA30,ALA30..RHD..G200511-200812

FAWN,TRIM4#

main55312-42040-E1iACA30,ALA3#,ZSA3#..RHD..G200812-201212

SAND BEIGE,TRIM4#

55312ACLIP, INSTRUMENT PANEL

main90467-05161-B0iACA33,38;ACA30,ALA30..G..(DCR,DCRL,HTWC)200511-200812

DK.GRAY,TRIM1#,4#

sub90467-05161¥90

main90467-05161-B0iACA31,ALA30,GSA33..DCRE,HTWC200701-201212

DK.GRAY

sub90467-05161¥90

main90467-05161-B0iACA30,ALA30..X..(DCR,HTWC)200511-200812

DK.GRAY,TRIM1#

sub90467-05161¥90

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-42210iACA30,31,ALA30..LHD200511-200707

sub55330-42211

main55330-42211iACA30,31,ALA30..LHD200708-201212

main55330-42220iACA30,ALA30..LHD..G200511-200707

WITHOUT(CURTAIN & SIDE AIR BAG)

sub55330-42221

main55330-42220iACA33,38..LHD200511-200707

WITH(FRONT WHEEL SPLASH SHIELD)

sub55330-42221

main55330-42221iACA38;ACA33..LHD..X;ACA33..G..GEN200708-201212

main55330-42221iACA30,ALA30..LHD..G200708-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main55330-42221iACA30,ALA30..LHD..G200708-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main55330-42230iACA30,ALA30..RHD¥21,900200511-200707

sub55330-42231¥21,900

main55330-42231iACA30,ALA3#,ZSA3#..RHD;ACA33,38,GSA33..G..ARL¥21,900200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main55330-42231iACA30,ALA30..RHD¥21,900200708-201212

main55330-42240iACA30,ALA30..RHD..G¥21,900200511-200707

WITH(FRONT WHEEL SPLASH SHIELD)

sub55330-42241¥21,900

main55330-42240iACA33..ARL¥21,900200511-200707

WITHOUT(CURTAIN & SIDE AIR BAG)

sub55330-42241¥21,900

main55330-42241iACA33,38..X..ARL¥21,900200708-201212

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-42020iACA30,33,38,ALA3#,GSA33,ZSA3#¥900200511-201212

55355ECUSHION, INSTRUMENT PANEL

main55355-42040iACA3#,ALA3#,ZSA3#..LHD201201-201203

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-42050iACA33..G..GCC;ACA30,31,ALA30¥610200511-200902

sub55358-42051¥600

main55358-42051iALA3#,ZSA3#..LHD..BTYPE;ACA3#,ALA30..LHD..(DCR,HTWC)..ATYPE¥600200903-201212

main55358-42052iACA3#,ALA3#,ZSA3#..LHD201201-201203

sub55358-42051¥600

55368CBRACKET, METER MOUNTING

main55368-42010iACA30,33,38,ALA3#,GSA33,ZSA3#¥300200511-201212

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN¥300200511-200903

55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1

main55448-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN¥150200511-201212

55539COVER, SPARE SWITCH HOLE

main55539-52060-B0iACA33,38..GEN200511-201212

DK.GRAY,TRIM1#

sub55539-52060¥300

main55539-52060-B0iACA33,38..GEN200511-201212

DK.GRAY,TRIM1#,4#

sub55539-52060¥300

main55539-52060-B0iZSA30..X;ZSA30..6F..G;ALA30..RHD..6FC..ATYPE;ALA30,ZSA30..LHD..ATM..G;ACA30,33,38,ALA3#,GSA33,ZSA35..(4FC,5F,5FC,6F)..(ARL,EUR)200808-201212

DK.GRAY,TRIM13

sub55539-52060¥300

main55539-52060-B1iACA33,38..GCC200511-201212

GRAY,TRIM1#

sub55539-52060¥300

main55539-52060-B1iACA33,38..GCC200808-201212

GRAY,TRIM10

sub55539-52060¥300

main55539-52060-E1iACA33,38..LHD;ACA30,31,ALA30..G200511-200812

FAWN,TRIM4#

sub55539-52060¥300

main55539-52060-E3iZSA30..LHD..CVFC..G;ACA33,38,ALA30..LHD..(4FC,5F,6FC);ACA30,ALA3#,ZSA3#..(4FC,5F,6F)..G200808-201212

SAND BEIGE,TRIM4#

sub55539-52060¥300

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-42040-B0iACA33,38..X..ARL200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1#

main55539-42040-B0iACA33,38..LHD..X200511-201212

DK.GRAY,TRIM1#,4#

main55539-42040-B0iACA33,38..LHD..X200511-201212

DK.GRAY,TRIM1#

main55539-42040-B0iACA30,ALA30..X200511-200812

AIR CONDITIONER-MANUAL,DK.GRAY,TRIM1#

main55539-42040-B0iACA30,ALA30..X200511-200812

AIR CONDITIONER-MANUAL,DK.GRAY,TRIM1#,4#

main55539-42040-B0iACA30,ALA30..X200511-200812

AIR CONDITIONER-WITHOUT,DK.GRAY,TRIM1#

main55539-42040-B0iACA30,ALA30..X200511-200812

AIR CONDITIONER-WITHOUT,DK.GRAY,TRIM1#,4#

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-42020iACA33,38,GSA33¥220200511-201212

main55549-42020iACA30,31,ALA30¥220200511-200812

WITH(SMART KEY & CRUISE CONTROL)

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-42040-B0iACA33,38..LHD;ACA30,31,ALA30..G200511-200708

DK.GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42040-B0iACA33..ARL;ACA30,ALA30..X200511-200708

DK.GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42040-B1iACA33,38..LHD;ACA30,31,ALA30..G200708-200812

GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42040-B1iACA30,ALA30..X;ACA33,GSA33..ARL200708-200812

GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42050-B0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201003

GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42050-B0iACA33,GSA33..ARL;ACA30,ALA3#,ZSA3#..X200808-201003

GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42051iALA35..LHD..DCR;ALA30..LHD..X..DCR..BTYPE¥4,050201201-201203

main55650-42051-B0iALA35..LHD..G..DCR201003-201212

GRAY,TRIM1#,4#

main55650-42051-B0iALA35..LHD..G..DCR201003-201212

GRAY,TRIM1#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-42040-B0iACA33,38..LHD;ACA30,31,ALA30..G200511-200708

DK.GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42040-B0iACA33,38..LHD;ACA30,31,ALA30..G200511-200708

DK.GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42040-B1iACA33,38..LHD;ACA30,31,ALA30..G200708-200812

GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42040-B1iACA33,38..LHD;ACA30,31,ALA30..G200708-200812

GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42050-B0iACA33,GSA33..ARL;ACA30,ALA3#,ZSA3#..X200808-201003

GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42050-B0iACA33,GSA33..ARL;ACA30,ALA3#,ZSA3#..X200808-201003

GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42051iALA35..LHD..DCR;ALA30..LHD..X..DCR..BTYPE¥4,050201201-201203

main55650-42051-B0iALA35..LHD..G..DCR201003-201212

GRAY,TRIM1#,4#

main55650-42051-B0iALA35..LHD..G..DCR201003-201212

GRAY,TRIM1#

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-42030iACA33,38..LHD200511-201212

main55971-42040iACA33,GSA33..ARL¥1,940200511-201212

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-42030iACA30,31,ALA30..LHD200511-201212

main55972-42040iACA30,ALA30..RHD¥2,030200511-201212

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-42010iACA33,38,GSA33¥120,000200511-201212

82140WIRE ASSY, INSTRUMENT PANEL

main82140-47010iACA33,38,GSA33¥950200511-201212

5542342020PANEL, STEREO PLAYER FINISH

main55423-42020¥300

9010508120

main90105-08120¥90

9015950384

main90159-50384¥60

9015960610

main90159-60610¥70

9015960613

main90159-60613¥60

9017906278

main90179-06278¥100

9018305103

main90183-05103¥90

9046712080

main90467-12080¥60

9054105026

main90541-05026¥100

91621B0816

main91621-B0816¥90

91631J0612

main91631-J0612¥110

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

33 parts on this diagram · 8 diagrams in section
