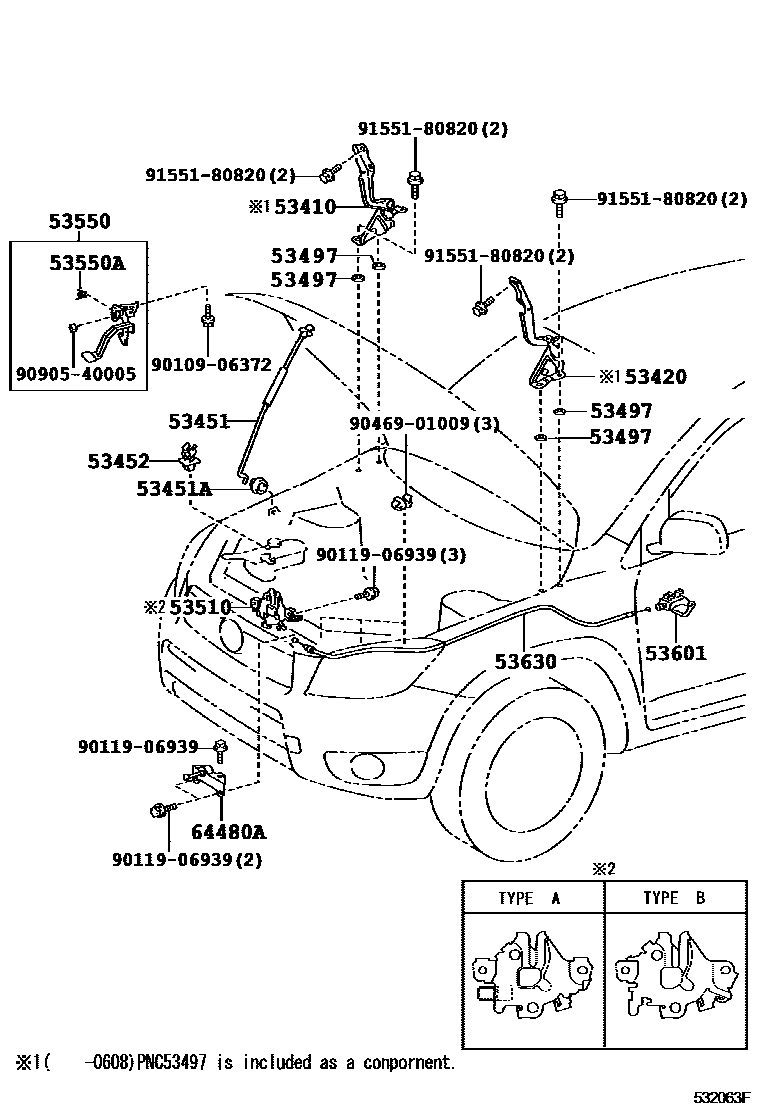

HOOD LOCK & HINGE

0001 1 0002 1 0003 1 0004 1

53410HINGE ASSY, HOOD, RH

main53410-42040iACA3#,ALA30200511-200609

sub53410-42060

main53410-42060iACA33..G..GCC;ACA30,31,ALA30200609-201212

main53410-42090iALA3#,ZSA3#..BTYPE201002-201212

53420HINGE ASSY, HOOD, LH

main53420-42040iACA3#,ALA30200511-200609

sub53420-42060

main53420-42060iACA33..G..GCC;ACA30,31,ALA30200609-201212

main53420-42090iALA3#,ZSA3#..BTYPE201002-201212

53451ROD, HOOD SUPPORT

main53440-42030iACA3#,ALA30200511-200605

sub53440-42040

sub53452-42020

sub53454-42010

main53440-42040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200605-201212

main53440-42050iALA3#,ZSA3#..BTYPE201002-201212

53451AGROMMET(FOR HOOD SUPPORT ROD)

main53454-42010iACA33..G..GCC;ACA30,31,ALA30200605-201212

main90480-15025iACA3#,ALA30200511-200605

53452HOLDER, HOOD STAY

main53452-42010iACA3#,ALA30200511-200605

main53452-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200605-201212

53497PAD, HOOD HINGE, NO.1

main53497-20070iACA33..G..GCC;ACA30,31,ALA30200609-201212

T=2.0

main53497-42010iACA33..G..GCC;ACA30,31,ALA30200511-201212

T=0.5

53510LOCK ASSY, HOOD

main53510-42070iACA3#,ALA30200511-200708

TYPE A:REFER ILLUST.

sub53510-42090

main53510-42090iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200708-201212

TYPE B:REFER ILLUST.

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-42020iACA30,33,38,ALA3#,GSA33,ZSA3#..ATYPE200511-201212

main53550-42030iALA3#,ZSA3#..BTYPE201002-201010

sub53550-42031

main53550-42031iALA3#,ZSA3#..BTYPE201011-201212

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18102iACA33..G..GCC;ACA30,31,ALA30200511-201011

main90508-18120iACA3#,ALA30,GSA33..ATYPE201012-201212

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR200511-201212

DK.GRAY,TRIM1#

sub53601-52010

main53601-52010-B3iACA33,38..GEN200808-201212

DK.GRAY,TRIM13

sub53601-52010

main53601-52010-B9iACA33,38..LHD200511-201212

GRAY,TRIM1#

sub53601-52010

main53601-52010-B9iACA33,38..GCC200808-201212

GRAY,TRIM10

sub53601-52010

main53601-52010-E0iACA33,38;ACA30,31,ALA30..G200511-200812

FAWN,TRIM4#

sub53601-52010

main53601-52010-E6iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-42090iACA30,33,38,ALA3#,GSA33,ZSA3#..RHD200511-201212

main53630-42100iACA30,33,38,ALA3#,ZSA3#..LHD200511-201212

64480ASTRIKER ASSY, ENGINE HOOD LOCK

main64480-42010iACA33..G..GCC;ACA30,31,ALA30200511-201212

9010906372

main90109-06372

9011906939

main90119-06939

9046901009

main90469-01009

9090540005

main90905-40005

9155180820

main91551-80820

17 parts on this diagram · 4 diagrams in section
