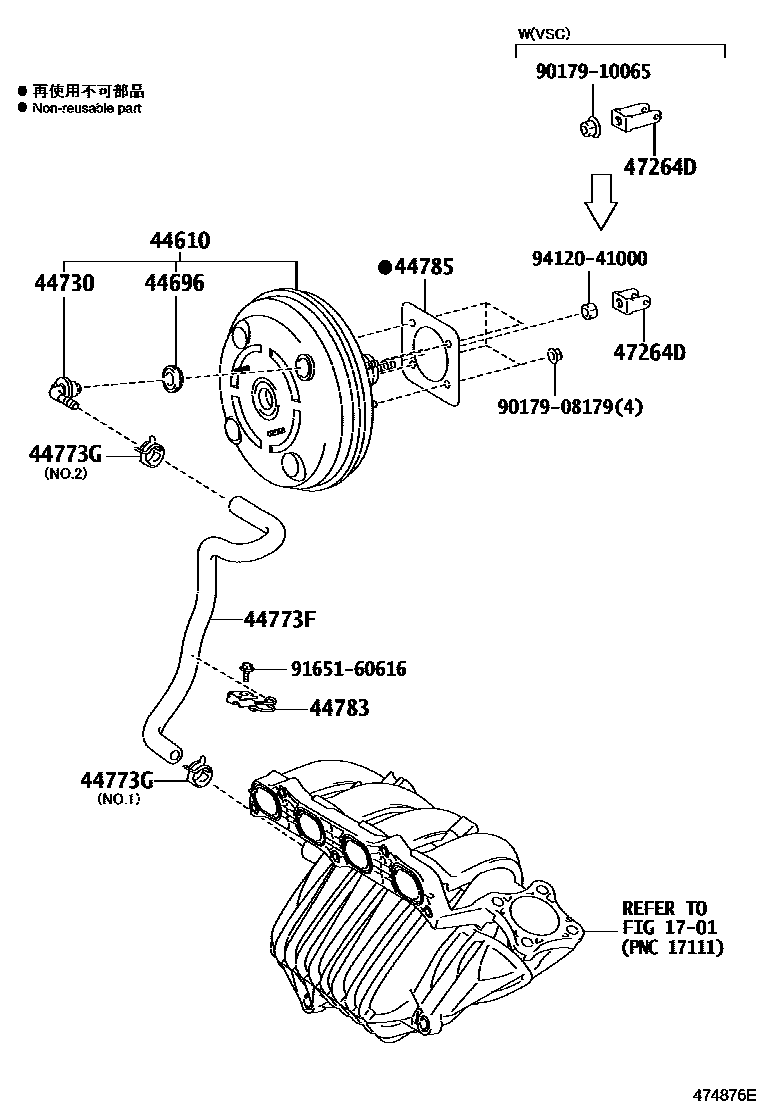

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1701

44610BOOSTER ASSY, BRAKE

main44610-42250iACA33..X..ARL¥50,500200511-200606

WITHOUT(VSC)

sub44610-42251¥50,400

main44610-42251iACA30..RHD..X¥50,400200607-200803

WITHOUT(VSC)

sub44610-42252¥50,400

main44610-42252iACA33,38..X..ARL¥50,400200803-201007

sub44610-42253¥50,400

main44610-42253iACA30..RHD..X¥50,400201008-201212

VSC-WITHOUT

main44610-42260iACA30..LHD..X200511-200606

WITHOUT(VSC)

sub44610-42261

main44610-42261iACA30..LHD..X200607-200803

WITHOUT(VSC)

sub44610-42262

main44610-42262iACA30..LHD..X200803-200812

WITHOUT(VSC)

sub44610-42263

main44610-42262iACA33,38..GCC,GEN200803-201007

sub44610-42263

main44610-42263iACA30..LHD..X201008-201212

VSC-WITHOUT

main44610-42310iACA33..G..ARL;ACA30,GSA33..RHD¥50,400200511-200803

sub44610-42311¥50,300

main44610-42311iACA30..RHD¥50,300200803-200812

main44610-42311iACA30,GSA33..RHD;ACA33,38..G..ARL¥50,300200808-201212

VSC-WITH

main44610-42320iACA30,31..LHD200511-200803

WITH(VSC)

sub44610-42321

main44610-42321iACA30,33..LHD..EUR200812-201212

main44610-42321iACA33..G..GCC200803-200812

WITH(VSC)

main44610-42330iALA30..RHD200511-200803

sub44610-42331

main44610-42331iALA30..RHD200803-201212

main44610-42340iALA30..LHD200511-200803

sub44610-42341¥50,300

main44610-42341iALA3#,ZSA3#..LHD¥50,300200803-201212

44696GROMMET, CHECK VALVE

main90480-24439iACA30,33,38,ALA3#,GSA33,ZSA3#¥390200511-201212

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN¥1,720200511-201212

44773FHOSE, UNION TO CHECK VALVE

main44773-42131iALA3#..RHD200511-201212

main44773-42140iACA33..ARL¥2,610200511-201212

main44773-42170iALA3#..LHD200511-201212

main44773-42180iZSA3#..RHD200812-201212

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iACA30,ALA30..RHD¥230200601-201212

NO.2

main96133-41500iACA33..ARL¥140200601-201212

NO.1

main96133-41500iACA30,33,ALA30..RHD¥140200511-200601

NO.1 & NO.2

main96133-41500iALA3#..LHD¥140200511-201212

44783CLAMP, VACUUM HOSE

main44783-44010iACA33..X..GCC;ACA33,38..ARL,GEN¥260200511-201212

44785GASKET, BRAKE BOOSTER

main44785-12040iACA30..RHD;ACA33..G..GCC;ACA30,31..LHD..4FC¥200200702-200812

WITHOUT(VSC)

main44785-12040iACA30,33,38,ALA3#,GSA33,ZSA3#¥200200702-201212

main44785-42010iALA30;ACA30..LHD..5F¥320200511-200702

WITHOUT(VSC)

sub44785-12040¥200

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iACA33..G..GCC¥320200511-200812

WITH(VSC)

main47264-30060iACA33,38..G..(ARL,EUR);ACA30,ALA3#,GSA33,ZSA3#¥320200808-201212

VSC-WITH

main47264-30060iGSA33;ACA33..G..ARL¥320200511-200808

main47264-63010iACA33,38..X;ACA33,38..G..(GCC,GEN)¥250200511-201212

main47264-63010iACA33..G..GCC¥250200511-200812

WITHOUT(VSC)

9017908179

main90179-08179¥200

9017910065

main90179-10065¥90

9165160616

main91651-60616¥100

9412041000

main94120-41000¥80

13 parts on this diagram · 7 diagrams in section
