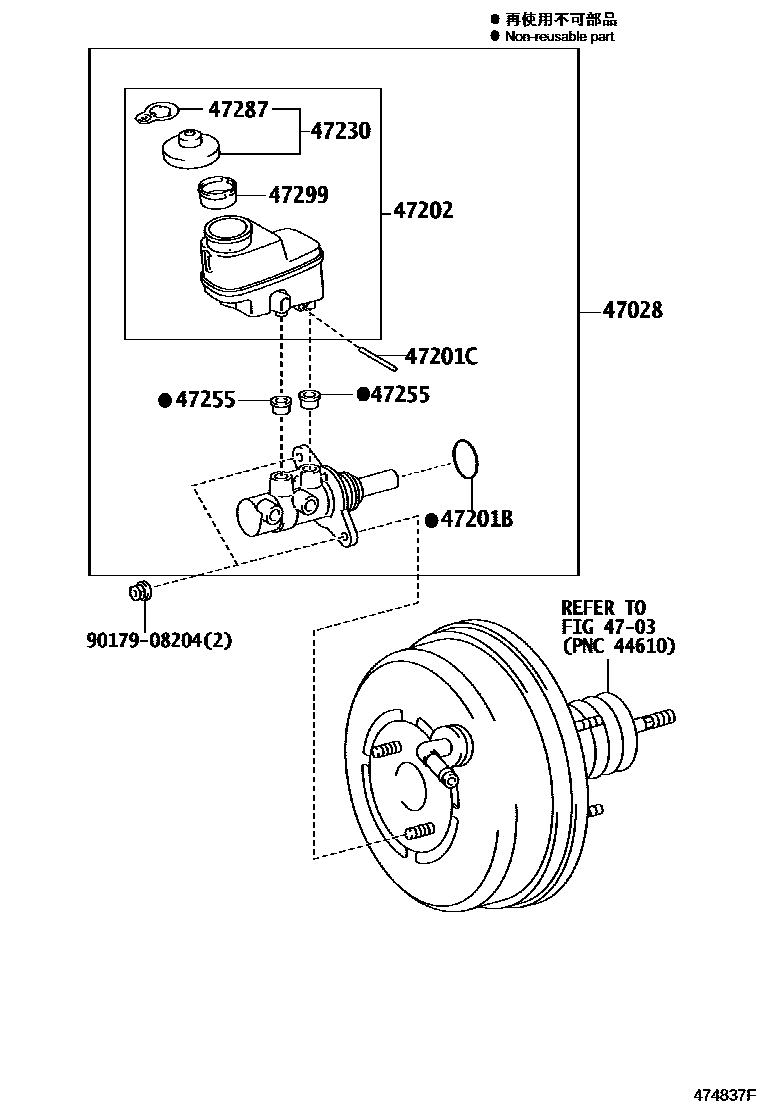

BRAKE MASTER CYLINDER

0001 1 0002 1

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47201-42320iACA33,38..4FC..X..ARL200511-201212

main47201-42330iACA33..5F..X..ARL200511-201212

sub47028-42020

main47201-42340iACA30..LHD..4FC..X200511-200812

WITHOUT(VSC)

sub47028-42030

main47201-42340iACA38..4FC;ACA33..G..GEN;ACA33..LHD..4FC..X200511-201212

sub47028-42030

main47201-42350iACA33,38..LHD..5F200511-201212

sub47028-42040

main47201-42360iGSA33;ACA33..4FC..G..ARL200511-200812

sub47201-42361

main47201-42360iACA33,38..4FC..G..ARL;ACA30,ALA30,GSA33,ZSA30..RHD..ATM200808-201202

VSC-WITH

sub47201-42361

main47201-42361iACA33,38..4FC..G..ARL;ACA30,ALA30,GSA33,ZSA30..RHD..ATM201203-201204

VSC-WITH

sub47201-42362

main47201-42362iACA33,38..4FC..G..ARL;ACA30,ALA30,GSA33,ZSA30..RHD..ATM201205-201212

VSC-WITH

main47201-42370iACA33,38..5F..X..ARL200808-201202

VSC-WITH

sub47201-42371

main47201-42370iACA33..5F..G200511-200812

sub47201-42371

main47201-42371iACA33,38..5F..G;ACA30,ALA3#,ZSA3#..RHD..MTM201203-201204

VSC-WITH

sub47201-42372

main47201-42372iACA33,38..5F..G;ACA30,ALA3#,ZSA3#..RHD..MTM201205-201212

VSC-WITH

main47201-42380iACA30,31..LHD..4FC200511-200812

WITH(VSC)

sub47201-42381

main47201-42380iACA30,33,ALA30,ZSA30..LHD..ATM..EUR200812-201202

sub47201-42381

main47201-42381iACA30,33,ALA30,ZSA30..LHD..ATM..EUR201203-201204

VSC-WITH

sub47201-42382

main47201-42382iACA30,33,ALA30,ZSA30..LHD..ATM..EUR201205-201212

VSC-WITH

main47201-42390iACA30,ALA3#,ZSA3#..LHD..MTM200511-201202

sub47201-42391

main47201-42391iACA30,ALA3#,ZSA3#..LHD..MTM201203-201204

sub47201-42392

main47201-42392iACA30,ALA3#,ZSA3#..LHD..MTM201205-201212

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iACA33..G..GCC;ACA30,31,ALA30200511-201212

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-42100iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

main47220-42110iACA30,ALA30..MTM200511-201212

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
