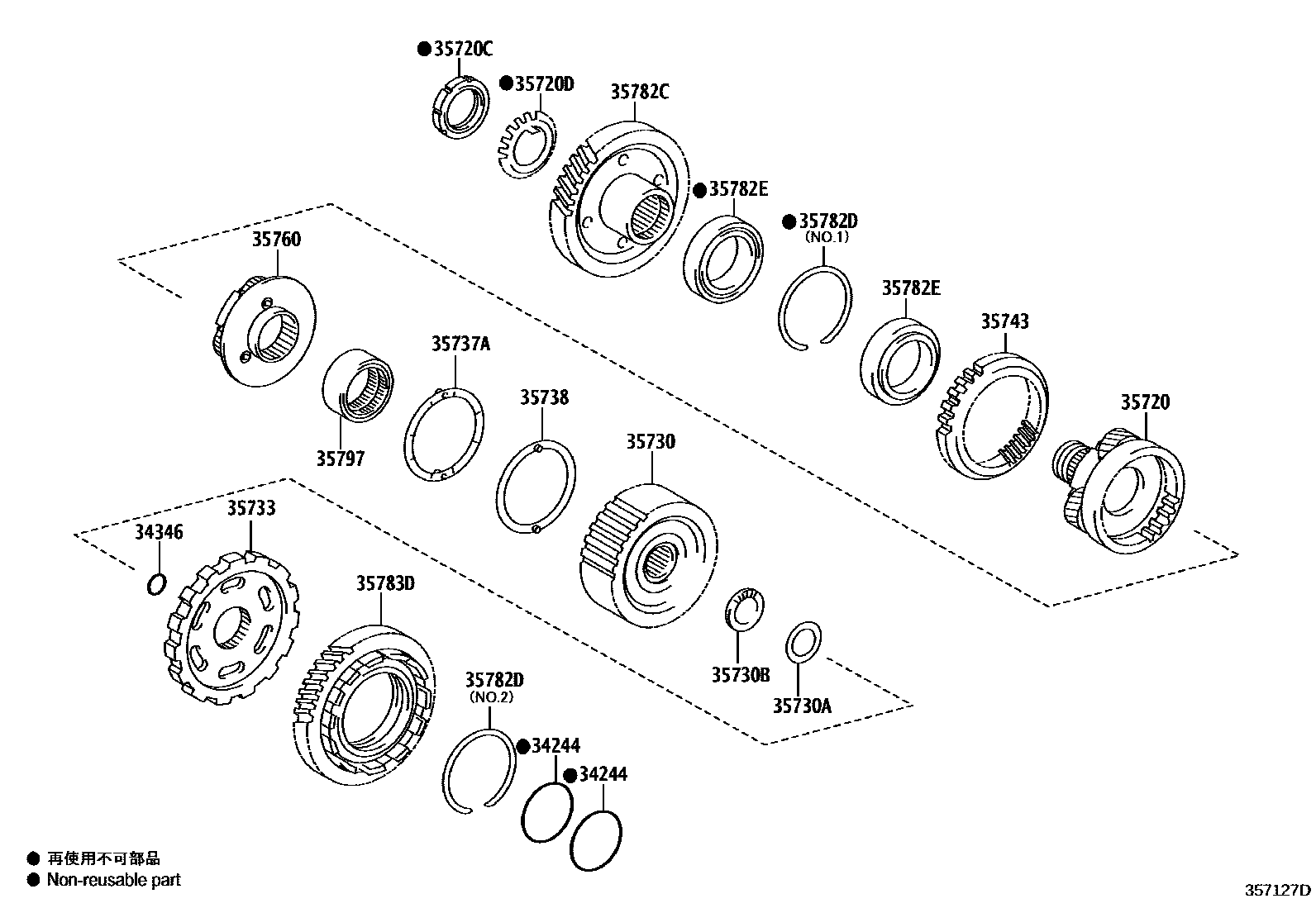

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U140F,U241E 0002 1U151F 0003 1U660F

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21011iACA30,31..4FC;ACA33..G..GCC200612-201212

main34346-28010iACA3#..4FC200511-200612

sub34346-21011

35720GEAR ASSY, FRONT PLANETARY

main35720-28070iGSA33200708-201212

main35720-28080iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

main35720-33061iALA30..6FC200903-200909

sub35720-33062

main35720-33062iALA30..6FC200909-201212

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

35730GEAR ASSY, REAR PLANETARY SUN

main35730-28020iACA3#..4FC200511-201212

main35730-33011iGSA33200708-201212

main35730-33021iALA30..6FC200903-201212

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35788-33010iGSA33200708-201212

main35789-21010iACA30,33,38..4FC200511-201212

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-28015iALA30..6FC200903-201212

main90374-31007iGSA33200708-201212

NO.1

main90374-33003iACA30,31..4FC;ACA33..G..GCC200511-201212

main90374-55002iGSA33200708-201212

NO.2,T=3.4

main90374-55003iGSA33200708-201212

NO.2,T=3.7

35733GEAR, PARKING LOCK

main35733-21010iACA31,33..G..(EUR,GCC)200511-201212

main35733-32030iACA38..4FC200511-201212

main35733-48010iACA30..4FC200511-201212

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-28010iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

main35737-42010iGSA33200708-201212

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-28020iACA30,33,38..4FC200511-201212

main35738-33030iGSA33200708-201212

35743GEAR, FRONT PLANETARY RING

main35743-28010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

35760GEAR ASSY, REAR PLANETARY

main35760-28010iACA30,31..4FC;ACA33..G..GCC200511-201212

main35760-42010iGSA33200708-201212

35782CGEAR, COUNTER DRIVE

main35782-28010iACA30,31..4FC;ACA33..G..GCC200511-201212

main35782-28020iACA38..4FC200511-201212

main35782-33020iGSA33200708-201212

main35782-33030iALA30..6FC200903-200908

sub35782-33031

main35782-33031iALA30..6FC200908-201212

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-84001iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

NO.1

main90520-87004iGSA33200708-201212

NO.1

main90520-89004iACA30,31..4FC;ACA33..G..GCC200511-201212

NO.2

main90520-99110iALA30..6FC200903-201212

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-59001iGSA33200708-201212

main90366-60009iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

main90369-72001iALA30..6FC200903-201212

sub90369-72002

35783DGEAR, COUNTER DRIVEN

main35783-28010iACA30,31..4FC;ACA33..G..GCC200511-201212

main35783-28020iACA38..4FC200511-201212

main35783-33030iGSA33200708-201212

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212
