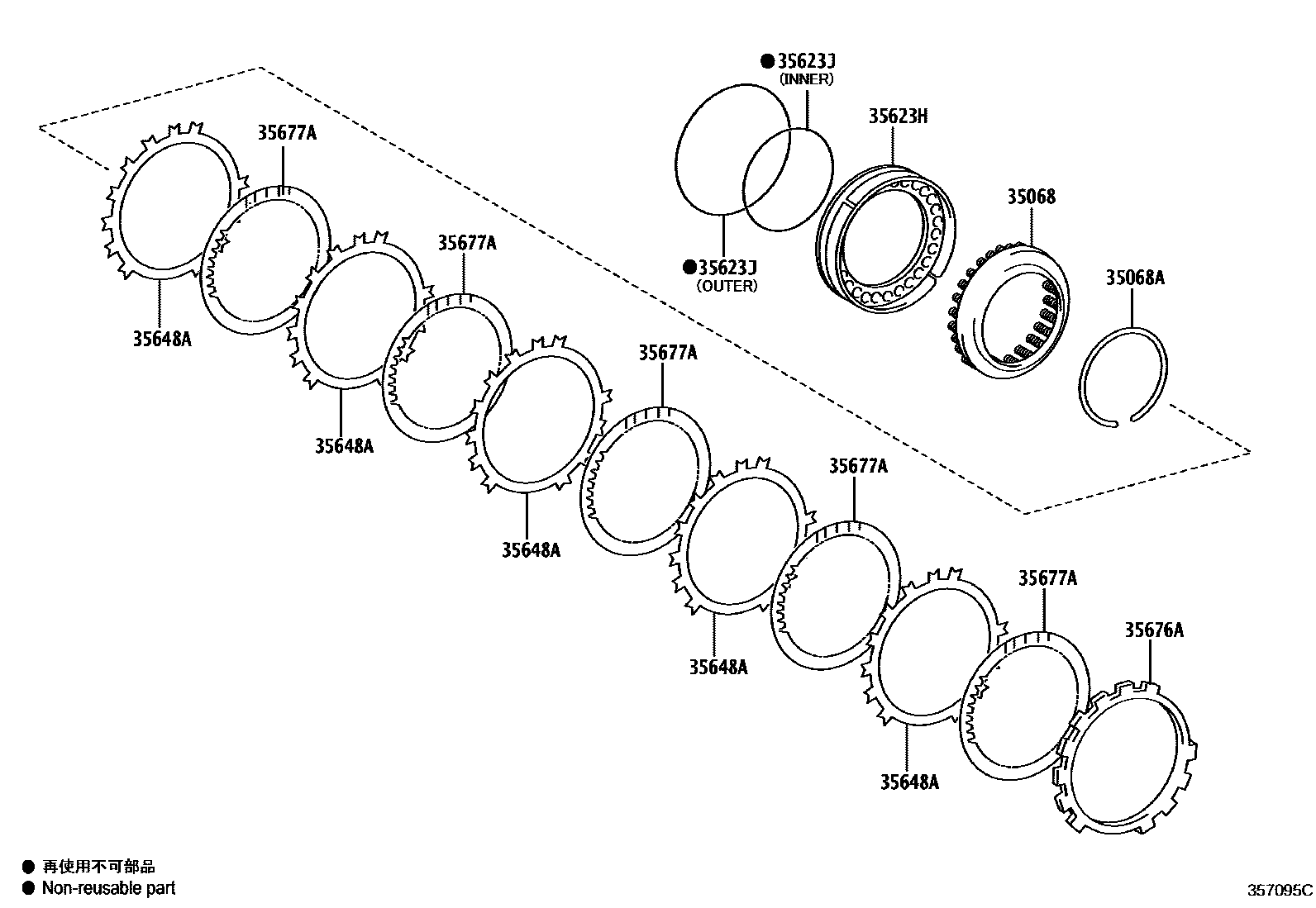

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U140F,U241E 0002 1U151F 0003 1U660F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21011iACA30,33,38..4FC¥2,490200511-201212

main35068-33021iGSA33¥2,910200708-201212

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)¥260200511-201212

35623PISTON, BRAKE, NO.3

main35623-33060iALA30..6FC¥7,100200903-201212

sub35623-48030¥4,520

35623HPISTON, 1ST & REVERSE BRAKE

main35623-28020iACA30,33,38..4FC¥3,140200511-201212

main35623-33030iGSA33¥4,250200708-201212

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iACA30,33,38,GSA33..ATM¥200200511-201212

INNER

main90301-99098iACA30,31..4FC;ACA33..G..GCC¥320200511-201212

OUTER

sub90301-99134¥270

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21011iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥890200511-201212

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iACA30,33,38,GSA33..ATM¥2,500200511-201212

T=1.8,MARK 1

main35678-21020iACA30,33,38,GSA33..ATM¥2,500200511-201212

T=1.9,MARK 2

main35678-21030iACA30,33,38,GSA33..ATM¥2,570200511-201212

T=2.0,MARK 3

main35678-21040iACA3#,GSA33..ATM¥2,570200511-201212

T=2.1,MARK 4

main35678-21050iACA3#,GSA33..ATM¥2,670200511-201212

T=2.2,MARK 5

main35678-21060iACA3#,GSA33..ATM¥2,670200511-201212

T=2.3,MARK 6

main35678-21070iACA30,33,38,GSA33..ATM¥2,740200511-201212

T=2.4,MARK 7

main35678-21080iACA3#,GSA33..ATM¥2,820200511-201212

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-28010iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥750200511-201212

8 parts on this diagram · 3 diagrams in section
