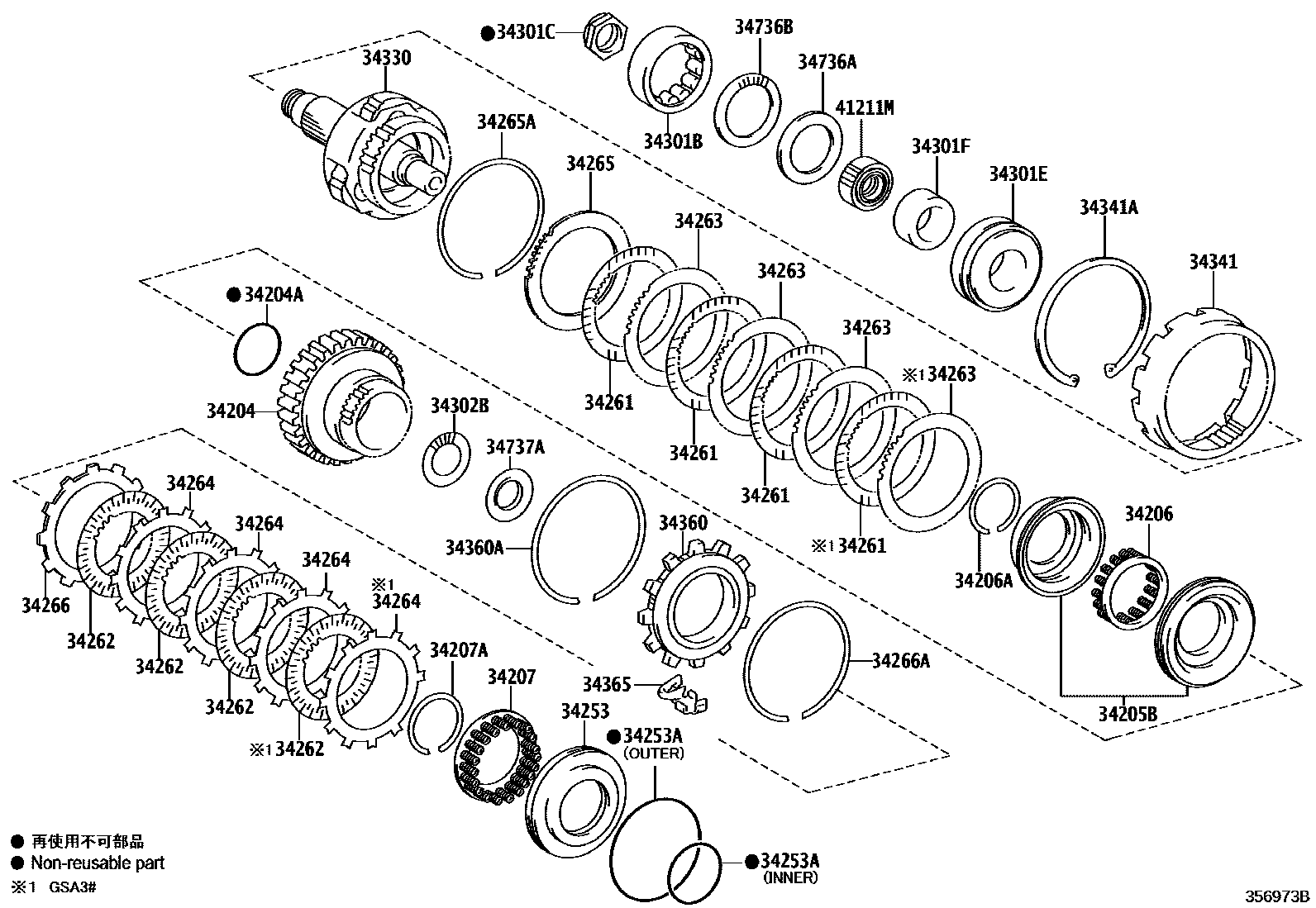

OVERDRIVE GEAR (ATM)

0001 1U140F,U241E,U151F 0002 1U660F

34204DRUM SUB-ASSY, UNDERDRIVE CLUTCH

main34204-28011iGSA33¥38,700200708-201212

main34204-28020iACA38..4FC¥26,400200511-201212

main34204-28030iACA30,33..4FC¥38,700200511-200608

main34204-28031iACA30,33..4FC¥38,700200608-201212

34204ARING, O (FOR UNDERDRIVE CLUTCH DRUM)

main90301-44004iACA38..4FC¥190200511-201212

main90301-49007iACA30,33,GSA33..ATM¥280200511-201212

34205BPISTON SET, UNDERDRIVE CLUTCH

main34205-28010iACA30,31..4FC;ACA33..G..GCC¥5,100200511-201212

sub34205-21010¥4,350

main34205-28020iACA38..4FC¥4,190200511-201212

34206SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN

main34206-21010iGSA33;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥870200511-201212

main34206-32010iACA38..4FC¥720200511-201212

34206ARING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)

main90520-46011iACA38..4FC¥170200511-201212

main90520-50009iACA30,31..4FC;ACA33..G..GCC¥220200511-201212

34207SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN

main34207-21010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)¥640200511-201212

34207ARING, SNAP (FOR UNDERDRIVE BRAKE RETURN SPRING)

main90520-59004iACA30,33,38,GSA33..ATM¥120200511-201212

34253PISTON, UNDERDRIVE BRAKE

main34253-28010iACA38,GSA33..ATM¥1,720200511-201212

main34253-28020iACA30,33..4FC¥2,860200511-201212

34253ARING, O (FOR UNDERDRIVE BRAKE PISTON)

main90301-62007iACA30,33,38,GSA33..ATM¥270200511-201212

INNER

main90301-99084iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)¥200200511-201212

OUTER

34261DISC, UNDERDRIVE CLUTCH, NO.1

main34261-28010iACA30,33..4FC¥2,130200511-200608

sub34261-28030¥2,130

main34261-28020iACA38..4FC¥1,690200511-200608

sub34261-28040¥1,410

main34261-28030iGSA33¥2,130200608-201212

main34261-28040iACA38..4FC¥1,410200608-201212

34262DISC, UNDERDRIVE CLUTCH, NO.2

main34262-28010iACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥2,730200511-201212

main34262-28020iACA38..4FC¥1,920200511-201212

main34262-33010iGSA33¥2,810200708-201212

34263PLATE, UNDERDRIVE CLUTCH, NO.1

main34263-28010iACA30,33..4FC¥1,430200511-201212

main34263-28020iACA38..4FC¥940200511-201212

34264PLATE, UNDERDRIVE CLUTCH, NO.2

main34264-28010iGSA33¥1,140200511-201212

main34264-28020iACA38..4FC¥860200511-201212

34265FLANGE, UNDERDRIVE CLUTCH, NO.1

main34265-21020iACA30,31..4FC;ACA33..G..GCC¥2,300200511-201212

T=3.0 MARK 1

main34265-21030iGSA33;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥2,400200511-201212

T=3.2 MARK 2

main34265-21040iACA30,33,GSA33..ATM¥2,560200511-201212

T=3.4 MARK 3

main34265-21050iACA30,33,GSA33..ATM¥2,710200608-201212

T=3.6 MARK 6

main34265-21060iGSA33¥2,300200708-201212

T=2.8 MARK 0

main34265-28070iACA30,31..4FC;ACA33..G..GCC¥2,300200608-201212

T=2.9 MARK 7

main34265-28080iGSA33;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥2,620200608-201212

T=3.5 MARK 8

main34265-32010iACA38..4FC¥1,910200511-201212

T=3.0 MARK A

main34265-32020iACA38..4FC¥1,910200511-201212

T=3.2 MARK B

main34265-32030iACA38..4FC¥1,910200511-201212

T=3.4 MARK C

main34265-33010iACA30,31..4FC;ACA33..G..GCC¥2,340200511-201212

T=3.1 MARK 4

main34265-33020iACA30,33,GSA33..ATM¥2,470200511-201212

T=3.3 MARK 5

main34265-33030iACA38..4FC¥1,910200605-201212

T=3.1 MARK G

main34265-33040iACA38..4FC¥1,910200605-201212

T=3.3 MARK H

34265ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)

main90520-99029iGSA33;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥310200511-201212

main90520-99041iACA38..4FC¥260200511-201212

34266FLANGE, UNDERDRIVE CLUTCH, NO.2

main34266-21010iGSA33;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥2,300200511-201212

T=3.0

main34266-21020iACA30,33,GSA33..ATM¥2,300200511-201212

T=3.2

main34266-21030iACA30,31..4FC;ACA33..G..GCC¥2,400200511-201212

T=3.4

main34266-32010iACA38..4FC¥1,910200511-201212

T=3.0

main34266-32020iACA38..4FC¥1,910200511-201212

T=3.2

main34266-32030iACA38..4FC¥1,910200511-201212

T=3.4

34266ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)

main90520-99032iACA30,33,GSA33..ATM¥310200511-201212

main90520-99041iACA38..4FC¥260200511-201212

34301BBEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)

main90365-48001iACA38..4FC¥2,550200511-201212

main90365-53001iGSA33;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥4,000200511-201212

34301CNUT (FOR UNDERDRIVE INPUT SHAFT)

main90179-32002iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)¥160200511-201212

34301EBEARING, TAPERED ROLLER (FOR UNDERDRIVE)

main90363-43002iACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥4,100200702-201212

main90366-43002iACA30,31,33..4FC¥3,500200511-200702

main90369-43011iACA38..4FC¥6,900200511-200611

sub90369-43013¥6,900

main90369-43015iGSA33¥8,100200708-201212

main90369-43017iACA38..4FC¥7,800200611-201212

34301FRACE, CYLINDRICAL ROLLER BEARING, INNER

main34733-21010iGSA33;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥2,300200511-201212

main34733-32011iACA38..4FC¥1,470200511-201212

34302BBEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR)

main90374-40003iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)¥1,180200511-201212

34330GEAR ASSY, UNDERDRIVE PLANETARY

main34330-28010iACA30,31..4FC;ACA33..G..GCC¥92,900200511-201212

main34330-28020iACA38..4FC¥78,800200511-201212

main34330-33020iGSA33¥92,900200708-201212

main34330-33040iALA30..6FC¥29,200200903-201212

34341GEAR, UNDERDRIVE PLANETARY RING

main34341-28010iACA30,33..4FC¥16,800200511-201212

main34341-28020iACA38..4FC¥9,600200511-201212

main34341-33020iGSA33¥16,200200708-201212

main34341-33030iALA30..6FC¥2,440200903-201212

34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)

main90520-99104iALA30..6FC¥210200903-201212

main90521-99120iACA30,31,33,GSA33..ATM¥390200511-201212

main90521-99121iACA38..4FC¥260200511-201212

34360CLUTCH ASSY, UNDERDRIVE 1 WAY

main34360-28010iGSA33;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥32,200200511-201212

main34360-28020iACA38..4FC¥21,900200511-201212

34360ARING, SHAFT SNAP (FOR UNDERDRIVE 1 WAY CLUTCH)

main90520-99031iACA30,31..4FC;ACA33..G..GCC¥390200511-201212

main90520-99040iACA38..4FC¥330200511-201212

34365RETAINER, OUTER RACE

main34365-32011iACA38..4FC¥60200511-201212

main34365-48011iACA30,31..4FC;ACA33..G..GCC¥70200511-201212

34736ARACE, THRUST BEARING UNDERDRIVE, NO.2

main34736-21010iACA30,31..4FC;ACA33..G..GCC¥3,090200511-201212

T=3.5

main34736-21020iGSA33;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥3,400200511-201212

T=3.8

main34736-32010iACA38..4FC¥2,040200511-201212

T=3.5

main34736-32020iACA38..4FC¥2,220200511-201212

T=3.8

34736BBEARING, THRUST NEEDLE ROLLER

main90374-53004iACA38..4FC¥1,800200511-201212

main90374-67001iGSA33;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)¥1,200200511-201212

34737ARACE, THRUST BEARING UNDERDRIVE, NO.3

main34737-21010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)¥1,100200511-201212

41211MPINION, DIFFERENTIAL DRIVE

main41211-28090iACA38..4FC¥2,860200511-201212

main41211-28100iACA31,33..4FC¥3,430200511-201212

main41211-42010iGSA33¥10,100200708-201212

main41211-42030iACA30..4FC¥3,430200511-201212

32 parts on this diagram · 2 diagrams in section
