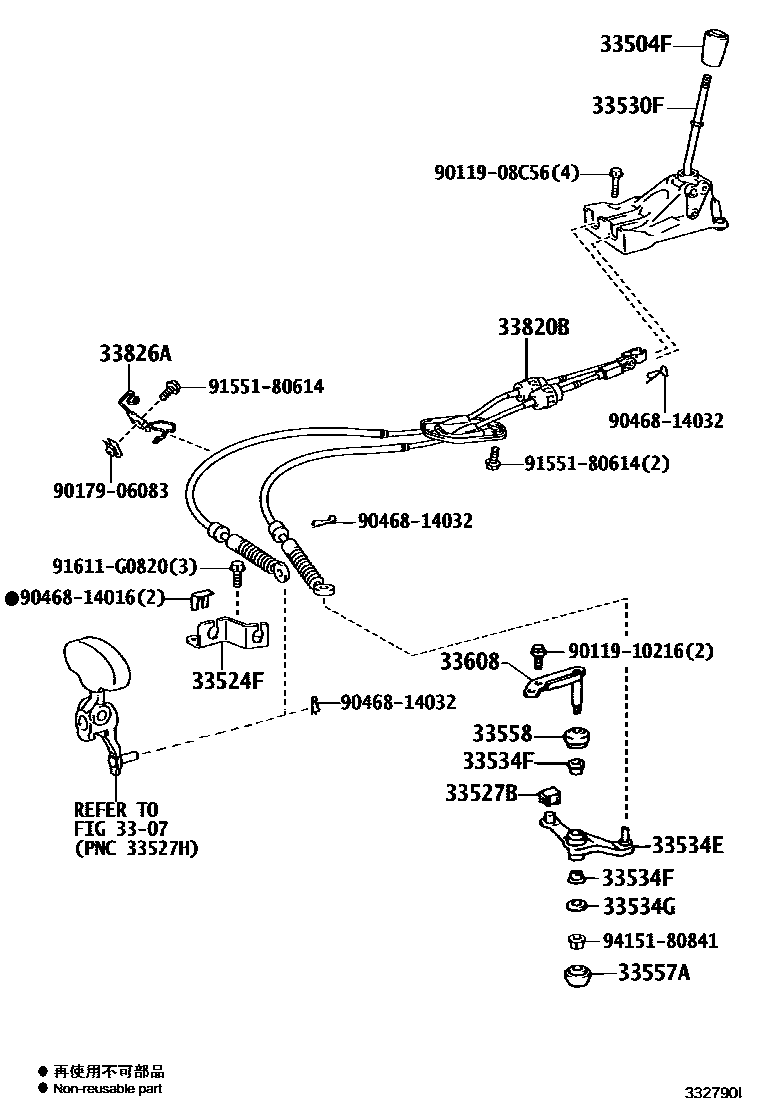

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-33050-B1iACA33,38..LHD..5F200511-201212

DK.GRAY,TRIM1#,4#

sub33504-33050

sub33504-33060

main33504-33050-B1iACA30..5F..X200511-201212

DK.GRAY,TRIM1#

sub33504-33050

sub33504-33060

main33504-42020-B0iACA30,GSA33..ATM..X200511-201212

DK.GRAY,TRIM1#

sub33504-58030

main33504-42020-B0iACA33,38..LHD..4FC..X200511-201212

DK.GRAY,TRIM1#,4#

sub33504-58030

main33504-42030-B0iACA3#..4FC..G200511-200708

DK.GRAY,TRIM1#,4#

sub33504-42030

main33504-42030-B2iACA3#..4FC..G..(EUR,GCC,GEN)200708-200812

DK.GRAY & GRAY,TRIM1#,4#

sub33504-42030

main33504-42030-B2iACA33,GSA33..ATM..G..ARL200708-200808

DK.GRAY & GRAY,TRIM1#

sub33504-42030

main33504-42030-B3iACA33,38,GSA33..ATM..G..ARL200808-201212

DK.GRAY,TRIM1#,4#

sub33504-42030

main33504-42030-B3iACA30,33,38,ALA30,ZSA30..ATM..G..(EUR,GCC,GEN)200808-201212

DK.GRAY,TRIM1#

sub33504-42030

main33504-42040-B0iALA30..X200511-200804

DK.GRAY,TRIM1#

sub33504-42041

main33504-42041-B0iALA30..X200805-201212

DK.GRAY,TRIM1#

main33504-42050-B0iALA30..G200511-200804

DK.GRAY,TRIM1#,4#

sub33504-42051

main33504-42051-B0iALA30..G200805-201212

DK.GRAY,TRIM1#,4#

main33504-42060-B0iACA30,33..5F..G200511-200802

DK.GRAY,TRIM1#,4#

sub33504-42061

main33504-42061-B0iACA30..5F..G200803-200812

DK.GRAY,TRIM1#,4#

sub33504-42090

main33504-42061-B0iACA33..5F..G200803-200808

DK.GRAY,TRIM1#

sub33504-42090

main33504-42090-B0iACA30..5F..G200812-201212

DK.GRAY,TRIM1#,4#

main33504-42090-B0iACA33,38..5F..G200808-201212

DK.GRAY,TRIM1#

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-28020iACA30..5F200511-201212

33527BBUSH (FOR CONTROL SHIFT LEVER)

main33557-33010iACA33,38..5F200511-201212

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-42070iALA30200511-200703

sub33530-42071

main33530-42071iALA30200704-200706

sub33530-42072

main33530-42072iALA3#,ZSA3#..6F200707-201212

main33530-42080iACA30..5F200511-201212

33534ECRANK, SELECTING BELL, NO.2

main33534-28090iACA33,38..5F200511-201212

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iACA33,38..5F200511-201212

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iACA33,38..5F200511-201212

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-20010iALA30200511-201212

NO.2

main33557-32010iACA30..5F200511-201212

main33557-33010iALA30200511-201212

NO.1

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iACA33,38..5F200511-201212

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-12031iACA33,38..5F200511-201212

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-42210iACA30,33,38..5F200511-201212

main33820-42230iALA3#..6F200511-201212

main33820-42240iACA38..4FC200511-201212

main33820-42250iACA30,33..4FC200511-201212

main33820-42270iGSA33200708-201212

main33820-42310iZSA30..CVFC200812-201203

sub33820-42400

main33820-42320iZSA3#..6F200812-201212

main33820-42330iALA30..6FC200903-201212

main33820-42400iZSA30..CVFC201204-201212

33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-44061iACA30..5F200511-201212

9011908C56

main90119-08C56

9011910216

main90119-10216

9017906083

main90179-06083

9046814016

main90468-14016

9046814032

main90468-14032

9155180614

main91551-80614

91611G0820

main91611-G0820

9415180841

main94151-80841

21 parts on this diagram · 9 diagrams in section
