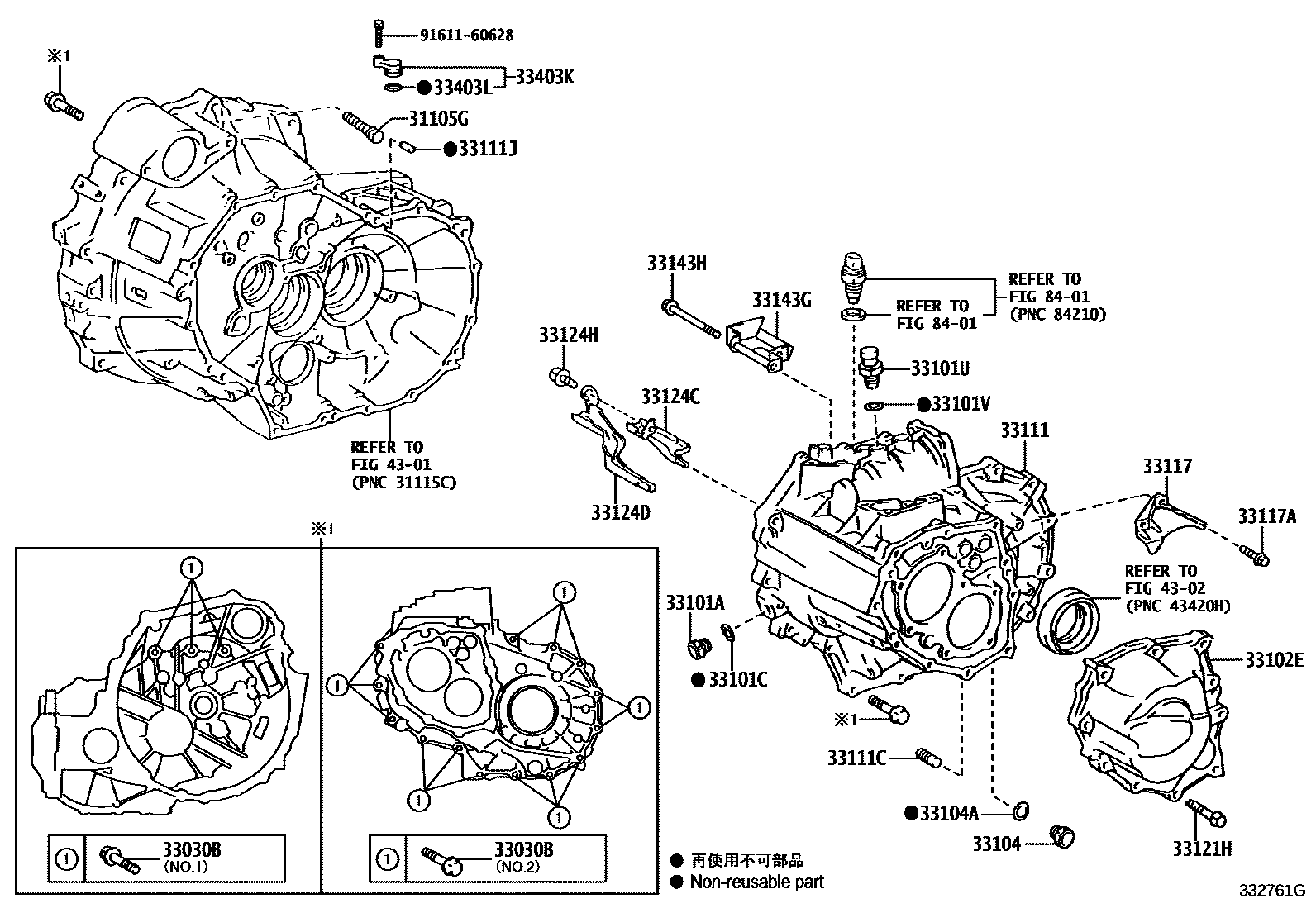

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1E352,E352F,E359F 0002 1EA64,EA64F 0003 1EB61,EB61F

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-12147iACA30..5F200511-201212

*12-1.25PX74.5-25

main90119-12042iALA30200511-201212

*12-1.25PX75-30

main90119-12252iACA33,38..5F200511-201212

*12-1.25PX60-30

main91512-61045iZSA3#..6F200812-201212

*10-1.25PX45-30

main91512-61060iACA33,38..5F200511-201212

*10-1.25PX60-30

main91512-61065iACA30,33,38,ALA3#..MTM200511-201212

*10-1.25PX65-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iALA30200511-201212

*8-1.25PX45-27.5

main90105-08086iACA3#..5F200911-201212

*8-1.25PX45-27.5,NO.2

main90105-08126iACA33,38..5F200511-200911

*8-1.25PX45-27.5,NO.1 & NO.2

main90105-08126iACA3#..5F200911-201212

*8-1.25PX45-27.5,NO.1

main91551-10840iZSA3#..6F200812-201212

*8-1.25PX40-22

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-20100iZSA3#..6F200812-201212

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iACA30,33,38,ALA3#..MTM200511-201212

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iACA33,38..5F200511-201212

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133iACA33,38..5F200511-201212

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008iACA3#..5F200511-200605

33102ECOVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-33012iACA33,38..5F200511-201212

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iACA33,38..5F200511-201212

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iACA33,38..5F200511-201212

33111CASE, MANUAL TRANSMISSION

main33101-42040iACA30,33,38..5F200511-201212

main33111-42050iALA30200511-200808

sub33111-42060

sub90341-18019

main33111-42060iALA3#..6F200808-201212

33111CPLUG(FOR TRANSMISSION CASE)

main90341-12004iALA30200511-201212

OD=18

main90341-18033iZSA3#..6F200812-201212

OD=24

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iACA33,38..5F200511-201212

L=23,OD=8

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33107-20010iACA30..5F200511-201212

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main91641-H0820iACA33,38..5F200511-201212

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273iACA30..5F200511-201212

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20040iALA30200511-201212

main33124-28050iACA33,38..5F200511-201212

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-28060iACA33,38..5F200511-201212

main33124-42010iALA30200511-201212

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830iACA30..5F200511-201212

main91611-B0616iALA30200511-201212

33143GBAFFLE, TRANSMISSION OIL

main33143-42010iACA33,38..5F200511-201212

33143HBOLT(FOR TRANSMISSION OIL BAFFLE)

main90119-08439iACA30,33,38..5F200511-201212

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iACA33,38..5F200511-201212

33403LRING, O

main96711-24018iACA33,38..5F200511-201212

4301

4302

8401

9161160628

main91611-60628

27 parts on this diagram · 3 diagrams in section
