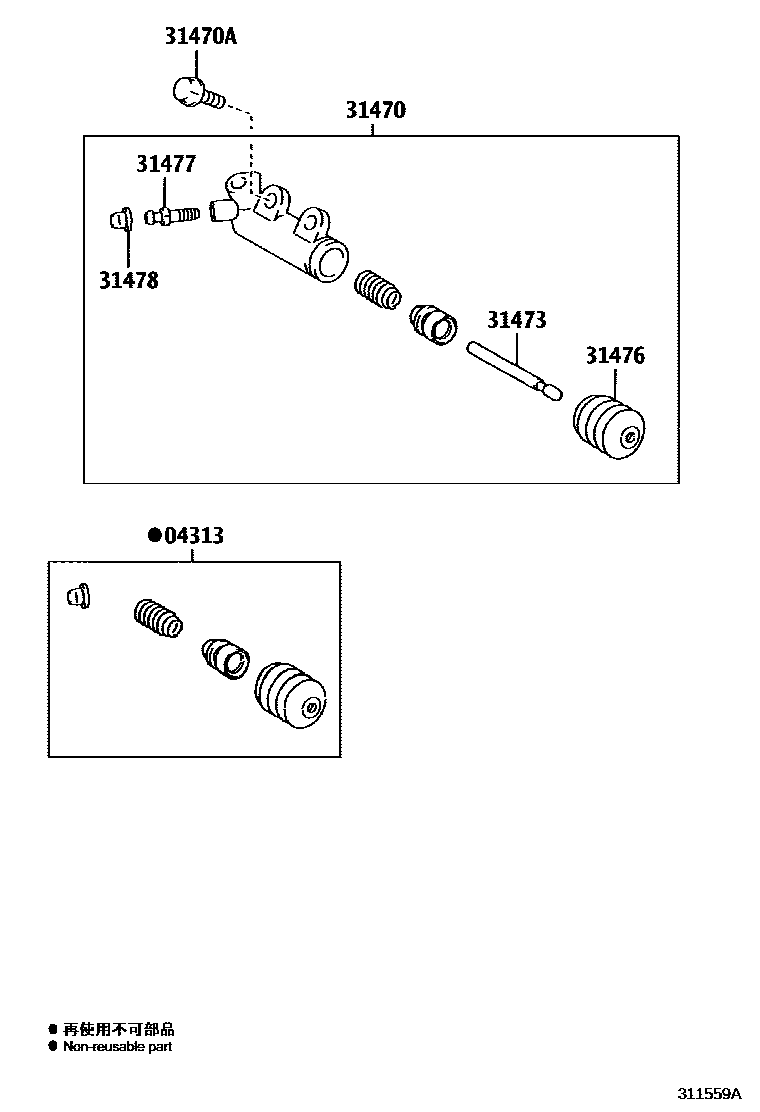

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-52020iACA30,ALA30..MTM200511-201212

main04313-53010iACA33,38..5F200511-201212

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-32023iALA30200511-201212

main31470-42031iACA30..5F200511-201212

main31470-42040iACA33,38..5F200511-201212

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iACA33,38..5F200511-201212

*8-1.25PX25-20.1

main91611-60822iACA30,ALA3#..MTM200511-201212

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iALA30200511-201212

main31473-22030iACA30..5F200511-201212

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iACA30,ALA30..MTM200511-201212

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iACA33,38..5F200511-201212

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iACA33,38..5F200511-201212

7 parts on this diagram · 3 diagrams in section
