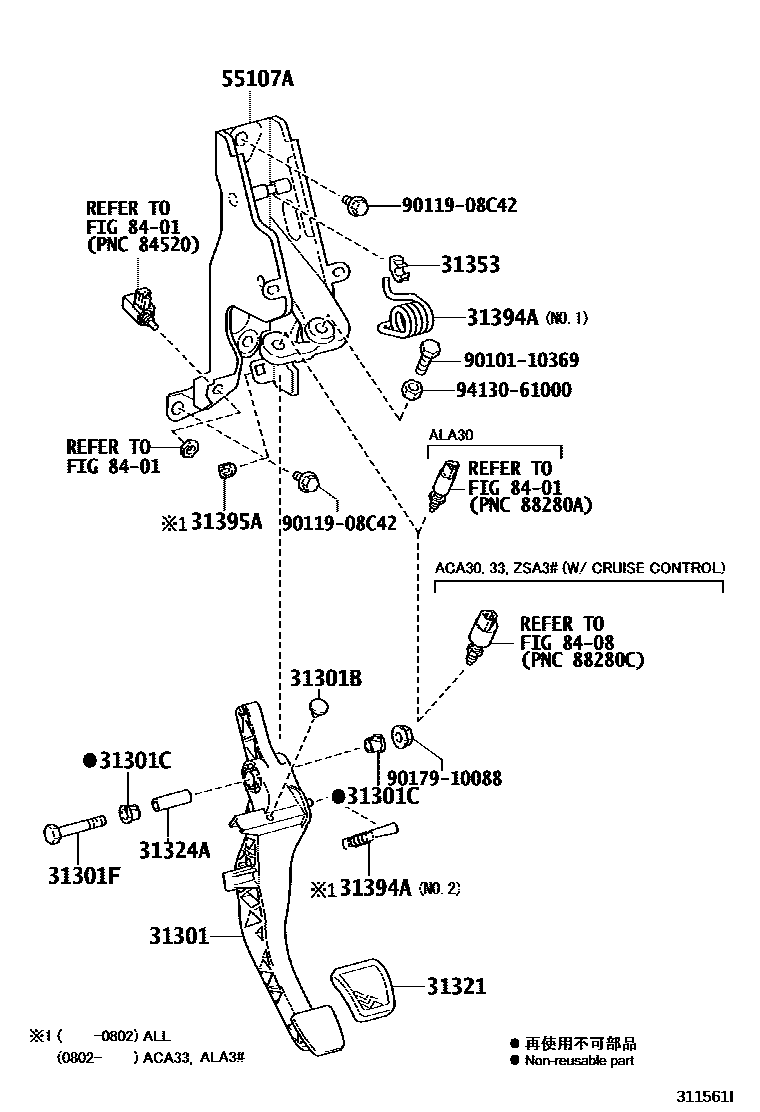

CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
CRUISE CONTROL-WITH(ELECTRIC,WITH/VSC)
CRUISE CONTROL-WITH(ELECTRIC,WITH/VSC)&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31321PAD, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31353HOLDER, CLUTCH PEDAL SPRING
31394ASPRING, PEDAL W/HOOK
NO.1
NO.1
NO.1
NO.1
NO.2
NO.2
31395AHOOK, PEDAL SPRING, NO.1
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
8401
8408
9010110369
main90101-10369
9011908C42
main90119-08C42
9017910088
main90179-10088
9413061000
main94130-61000
16 parts on this diagram · 12 diagrams in section
