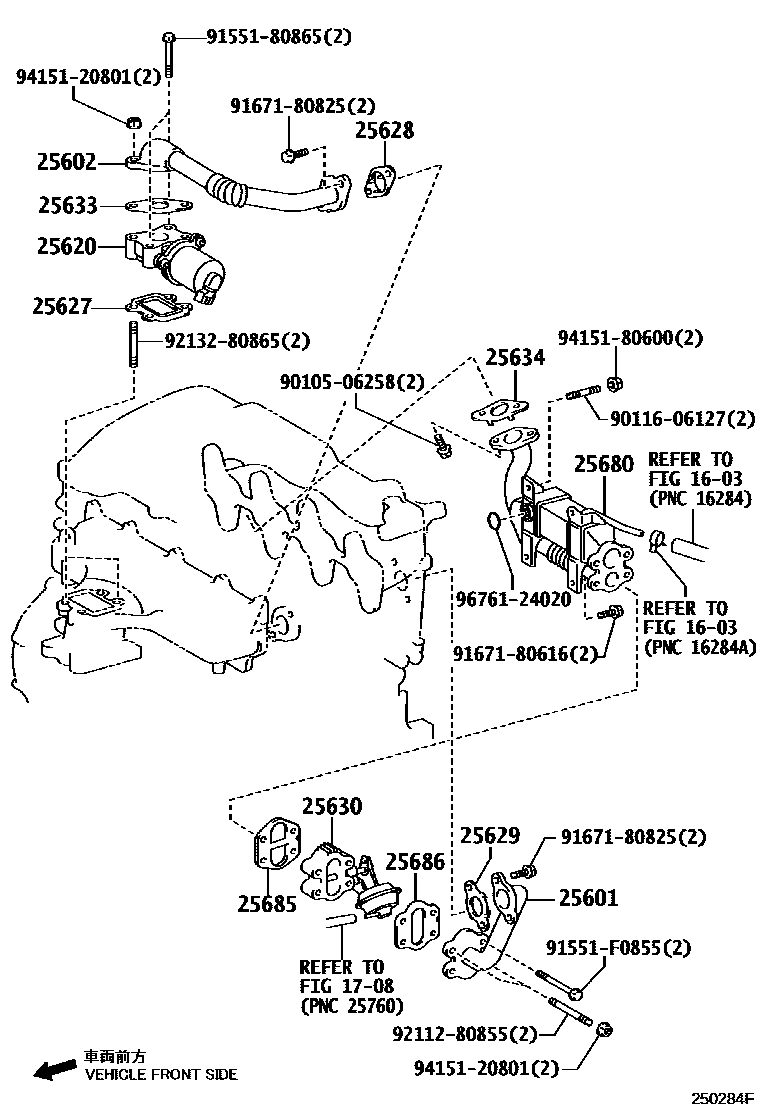

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0003 1 0004 1 0005 1

1603

1708

25601PIPE SUB-ASSY, EGR, NO.1

main25611-26020i2AD#..ALA30..DCRE,DCRL200511-200812

main25611-26030i2AD#..ALA3#200812-201212

25602PIPE SUB-ASSY, EGR, NO.2

main25612-0R010i2ADFTV..ALA30200511-200602

sub25612-26030

main25612-0R020i2ADFHV..ALA30200511-200602

sub25612-26030

main25612-0R031i2AD#..ALA3#200812-201212

(L)

main25612-26030i2AD#..ALA30200602-200812

main25612-26040i2AD#..ALA3#200812-201212

(J)

25620VALVE ASSY, EGR

main25620-0R020i2ADFTV..ALA30..DCRE200701-200702

(L)

sub25620-26110

main25620-0R021i2ADFTV..ALA30..DCRE200702-200812

(L)

sub25620-0R022

main25620-26090i2AD#..ALA30200511-200612

sub25620-26091

main25620-26091i2AD#..ALA30..DCR,DCRL200612-200812

sub25620-26092

main25620-26110i2ADFTV..ALA30..DCRE200701-200702

(J)

sub25620-26111

main25620-26111i2ADFTV..ALA30..DCRE200702-200812

(J)

sub25620-26112

25627GASKET, EGR VALVE

main25627-0R020i2AD#..ALA3#200812-201009

(L)

main25627-26020i2AD#..ALA30200511-200812

main25627-26030i2AD#..ALA3#200812-201009

(J)

main25627-26030i2AD#..ALA3#201009-201212

25628GASKET, EGR INLET

main25628-26010i2AD#..ALA30200511-200807

sub25628-26020

main25628-26020i2AD#..ALA30200807-201212

25629GASKET, EGR VALVE ADAPTER

main25629-0R010i2AD#..ALA3#200812-201212

(L)

main25629-26010i2AD#..ALA30200511-200812

main25629-26010i2AD#..ALA3#200812-201212

(J)

25630VALVE ASSY, EGR, NO.2

main25630-26010i2AD#..ALA30..DCRE,DCRL200511-200812

sub25630-26020

main25630-26020i2AD#..ALA3#200812-201212

25633GASKET, EGR VALVE

main25633-0R020i2AD#..ALA3#200812-201009

(L)

main25633-26010i2AD#..ALA30200511-200812

main25633-26020i2AD#..ALA3#201009-201212

main25633-26020i2AD#..ALA3#200812-201009

(J)

25634GASKET, EGR PIPE

main25634-0R010i2AD#..ALA30200511-201212

25680COOLER ASSY, EGR

main25680-0R010i2ADFTV..ALA30200511-200701

sub25680-0R011

sub16284-26040

main25680-0R020i2ADFHV..ALA30200511-200701

sub25680-0R021

sub16284-26040

main25680-26020i2AD#..ALA30..DCRE,DCRL200701-200805

sub25680-26021

sub16284-26040

main25680-26021i2AD#..ALA30..DCRE,DCRL200805-200812

main25680-26040i2ADFTV..ALA30..DCR200701-200805

sub25680-26041

sub16284-26040

main25680-26041i2ADFTV..ALA30..DCR200805-200812

25685GASKET, EGR COOLER, NO.1

main25685-0R010i2AD#..ALA30..DCRE,DCRL200511-201003

sub25685-0R011

main25685-0R011i2AD#..ALA3#201003-201212

25686GASKET, EGR COOLER, NO.2

main25686-0R010i2AD#..ALA30..DCRE,DCRL200511-201212

9010506258

main90105-06258

9011606127

main90116-06127

9155180865

main91551-80865

91551F0855

main91551-F0855

9167180616

main91671-80616

9167180825

main91671-80825

9211280855

main92112-80855

9213280865

main92132-80865

9415120801

main94151-20801

9415180600

main94151-80600

9676124020

main96761-24020

25 parts on this diagram · 4 diagrams in section
