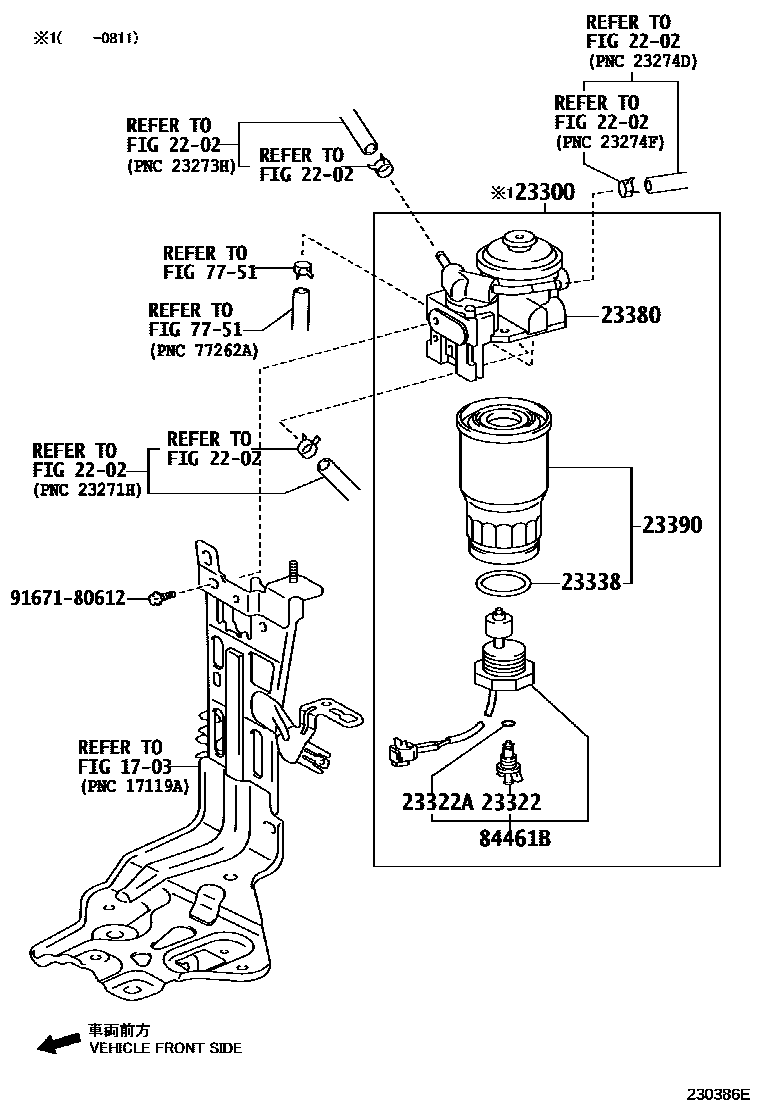

FUEL FILTER

0001 1 0002 1

1703

2202

23300FILTER ASSY, FUEL

main23300-26110i2AD#..ALA30200511-200811

sub23390-33020

sub23380-26110

sub84461-26090

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i2AD#..ALA30200511-201212

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2AD#..ALA30200511-201212

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2AD#..ALA30200511-201212

23380CAP ASSY, FUEL FILTER

main23380-26110i2AD#..ALA30200511-200811

sub23380-26111

main23380-26111i2AD#..ALA30200811-201109

main23380-26112i2AD#..ALA3#201109-201210

sub23380-26113

main23380-26113i2AD#..ALA3#201210-201212

23390ELEMENT ASSY, FUEL FILTER

main23390-33020i2AD#..ALA30200511-200811

sub23390-33060

main23390-33030i2AD#..ALA3#201109-201212

main23390-33060i2AD#..ALA3#200811-201109

7751

84461BSWITCH, LEVEL WARNING

main84461-26090iALA30200511-201205

sub84461-26091

main84461-26091iALA3#201206-201209

sub84461-26093

main84461-26092iALA3#201209-201212

sub84461-26093

9167180612

main91671-80612

11 parts on this diagram · 2 diagrams in section
