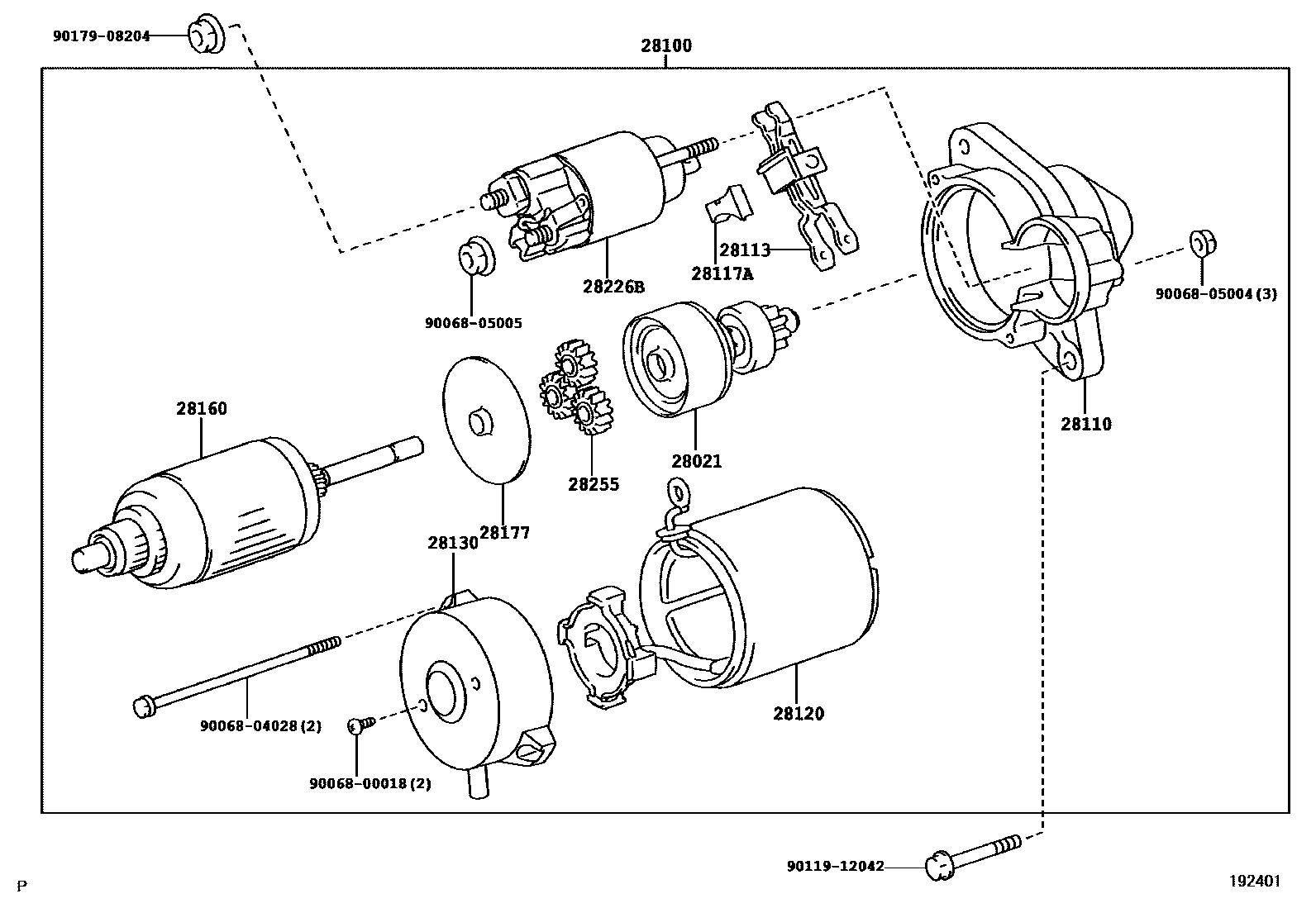

STARTER

0001 112V 2.0KW 0002 112V 1.3KW,1.6KW,1.7KW 0004 112V 2.0KW 0005 112V 1.3KW,1.6KW,1.7KW 0008 112V 1.7KW 0009 112V 1.0KW 0010 112V 1.3KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0G040i2AD#..ALA30200511-200612

main28021-0R010i2AD#..ALA3#200612-201212

main28021-70020i3ZRFAE..ZSA3#201102-201212

28100STARTER ASSY

main28100-0G040i2AD#..ALA30200511-200612

12V 2.0KW

sub28100-0R010

main28100-0R010i2AD#..ALA3#200612-201212

12V 2.0KW

sub28100-0R030

main28100-20020i2AZFE,2GRFE..ACA31,GSA33200701-200807

12V 1.7KW

sub28100-20021

main28100-20021i2GRFE..GSA33;2AZFE..ACA33..EUR201107-201212

12V 1.7KW

sub28100-20022

main28100-28041i2AZFE..ACA33,38200511-200807

12V 1.6KW

sub28100-28042

main28100-28052i1AZFE..ACA30200511-200812

12V 1.3KW

sub28100-28053

main28100-28060i2AZFE..ACA33..G..GCC200808-200904

12V 1.6KW

sub28100-28062

main28100-28061i2AZFE..ACA33,38..ARL,GCC,GEN200905-200910

12V 1.6KW

sub28100-28062

main28100-28062i2AZFE..ACA33,38..ARL,GCC,GEN200911-201212

12V 1.6KW

main28100-28070i2AZFE..ACA31200808-200812

12V 1.7KW,CHINA SPEC

sub28100-28072

main28100-28070i2AZFE..ACA31200808-200904

12V 1.7KW

sub28100-28072

main28100-28070i2AZFE..ACA31200808-200812

12V 1.7KW,BEIJING SPEC

sub28100-28072

main28100-28071i2GRFE..GSA33;2AZFE..ACA33..EUR200905-200910

12V 1.7KW

sub28100-28072

main28100-28072i2GRFE..GSA33;2AZFE..ACA33..EUR200911-201106

12V 1.7KW

main28100-28080i1AZFE..ACA30200812-200904

12V 1.3KW

sub28100-28081

main28100-28081i1AZFE..ACA30200905-200910

12V 1.3KW

sub28100-28082

main28100-28082i1AZFE..ACA30200911-201212

12V 1.3KW

sub28100-28083

main28100-37030i3ZRFAE..ZSA3#200812-200906

12V 1.0KW

sub28100-37031

main28100-37031i3ZRFAE..ZSA3#200907-201212

12V 1.0KW

sub28100-37032

28110HOUSING ASSY, STARTER DRIVE

main28110-0G040i2AD#..ALA30200511-200612

main28110-0R010i2AD#..ALA30200612-201212

28113LEVER, STARTER PINION DRIVE

main28113-0G020i2AD#..ALA30200511-200612

28117ASEAL, RUBBER

main28117-0G020i2AD#..ALA30200511-200612

main28117-28060i2GRFE..GSA33;2AZFE..ACA33..EUR200808-201212

28120YOKE ASSY, STARTER

main28120-0G020i2AD#..ALA30200511-200612

main28120-28040i2AZFE,2GRFE..ACA31,33,38,GSA33200511-200808

sub28120-28060

main28120-28050i1AZFE..ACA30200511-200808

sub28120-28080

main28120-28060i2AZFE,2GRFE..ACA33,38,GSA33200808-201212

main28120-28080i1AZFE..ACA30200808-201212

main28120-38020i2AD#..ALA3#200612-201212

main28120-40130i3ZRFAE..ZSA3#200907-201212

main28120-70050i3ZRFAE..ZSA3#200812-200907

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0G040i2AD#..ALA30200511-200612

main28130-0R010i2AD#..ALA3#200612-201212

main28130-20020i2AZFE..ACA31200701-201212

main28130-28040i1AZFE..ACA30;2AZFE..ACA33..G..GCC200511-201212

28160ARMATURE ASSY, STARTER

main28160-0G020i2AD#..ALA30200511-201212

main28160-28040i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212

main28160-70050i3ZRFAE..ZSA3#200812-201212

28177PLATE(FOR STARTER ARMATURE)

main28177-0G020i2AD#..ALA30200511-201212

main28177-28040i2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN200511-201212

28226BSTARTER KIT, REPAIR SERVICE

main28226-0G020i2AD#..ALA30200511-200612

main28226-28051i2AZFE,2GRFE..ACA31,33,38,GSA33200511-201212

main28226-28060i2AZFE..ACA31,33..G..(EUR,GCC)200808-201212

28255GEAR, PLANET

main28255-0G040i2AD#..ALA30200511-201212

main28255-20020i2AZFE..ACA31200701-201212

main28255-28040i1AZFE..ACA30;2AZFE..ACA33..G..GCC200511-201212

9006800018

main90068-00018

9006804028

main90068-04028

9006805004

main90068-05004

9006805005

main90068-05005

9011912042

main90119-12042

9017908204

main90179-08204

17 parts on this diagram · 7 diagrams in section
