EXHAUST PIPE

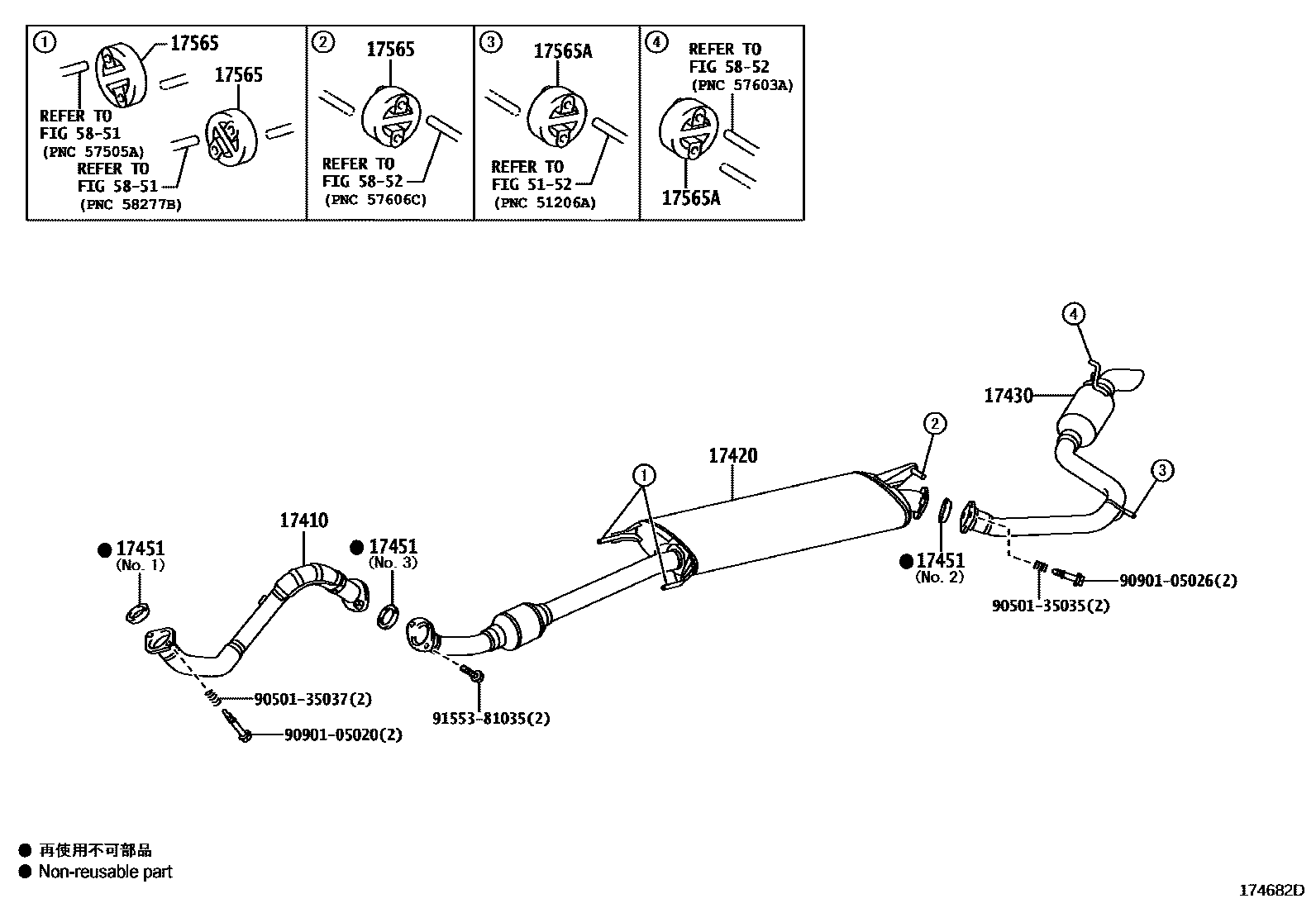

Parts diagram
17410PIPE ASSY, EXHAUST, FRONT
main17410-26400i200511-200812
*114=TOYOTA/AC4/Y
sub17410-26401
main17410-26410i200511-200812
*114=TOYOTA/AC2AC3/Y
sub17410-26411
main17410-26420i200701-200812
*114=TOYOTA/AC5/Y
sub17410-26421
main17410-26430i200812-201104
*114=TOYOTA/AF1/Y
sub17410-26431
main17410-26431i201105-201202
*114=TOYOTA/AF1/Y
sub17410-26432
main17410-26432i201203-201212
*114=TOYOTA/AF1/Y
main17410-26440i200812-201104
*114=TOYOTA/AE3/Y
sub17410-26441
main17410-26441i201105-201202
*114=TOYOTA/AE3/Y
sub17410-26442
main17410-26442i201203-201212
*114=TOYOTA/AE3/Y
main17410-26450i200812-201104
*114=TOYOTA/AF2/Y
sub17410-26451
main17410-26451i201105-201202
*114=TOYOTA/AF2/Y
sub17410-26452
main17410-26452i201203-201212
*114=TOYOTA/AF2/Y
main17410-26460i200903-201104
*114=TOYOTA/AF2/Y
sub17410-26461
main17410-26461i201105-201202
*114=TOYOTA/AF2/Y
sub17410-26462
main17410-26462i201203-201212
*114=TOYOTA/AF2/Y
main17410-28580i200511-200601
sub17410-28581
main17410-28581i200602-200903
sub17410-28582
main17410-28582i200904-201202
sub17410-28583
main17410-28583i201203-201212
main17410-31610i200708-201202
sub17410-31611
main17410-31611i201203-201212
main17410-37320i200812-201202
*114=TOYOTA/GK8/Y
sub17410-37321
main17410-37321i201203-201212
*114=TOYOTA/GK8/Y
17420PIPE ASSY, EXHAUST, CENTER
main17403-31050i200708-201202
sub17403-31051
main17403-31051i201203-201212
main17420-28620i200511-200712
sub17420-28710
main17420-28710i200511-201105
*114=TOYOTA/GB3/Y
sub17420-28711
main17420-28711i201106-201202
*114=TOYOTA/GB3/Y
sub17420-28712
main17420-28712i201203-201212
*114=TOYOTA/GB3/Y
main17420-28890i200712-201105
sub17420-28891
main17420-28891i201106-201202
sub17420-28892
main17420-28892i201203-201212
main17420-37040i200812-201104
*114=TOYOTA/GM7/Y
sub17420-37041
main17420-37041i201105-201202
*114=TOYOTA/GM7/Y
sub17420-37042
main17420-37042i201203-201212
*114=TOYOTA/GM7/Y
17430PIPE ASSY, EXHAUST, TAIL
main17430-26740i200511-200805
sub17430-26741
main17430-26741i200806-200907
sub17430-26743
main17430-26743i200908-201202
sub17430-26744
main17430-26744i201203-201212
main17430-28760i200511-200804
sub17430-28761
main17430-28761i200805-200901
sub17430-28762
main17430-28762i200902-200906
sub17430-37371
main17430-28770i200511-200801
sub17430-28771
main17430-28771i200802-200907
sub17430-28773
main17430-28773i200908-201202
sub17430-28774
main17430-28774i201203-201212
sub17430-28775
main17430-28A10i200712-200801
sub17430-28A11
main17430-28A11i200802-200907
sub17430-28A13
main17430-28A13i200908-201212
sub17430-28A14
main17430-31510i200708-200801
sub17430-31511
main17430-31511i200802-200907
sub17430-31513
main17430-31513i200908-201202
sub17430-31514
main17430-31514i201203-201212
main17430-37370i200812-200907
sub17430-37371
main17430-37371i200908-201202
sub17430-37372
main17430-37372i201203-201212
sub17430-37373
17451GASKET, EXHAUST PIPE
main17451-28040i200511-201212
NO.1
sub17451-28041
main17451-28050i200511-200709
NO.1
sub17451-28070
main17451-28070i200710-201212
NO.1
sub17451-28040
main17451-31010i200511-200806
NO.2
sub17451-31011
main17451-31011i200807-201102
NO.2
sub17451-31012
main17451-31012i201103-201212
NO.2
main90917-06078i200511-201212
NO.3
main90917-06089i200708-201212
NO.1
17565SUPPORT, EXHAUST PIPE, NO.5
main17565-22040i200908-201212
NO.1
main17565-22040i200511-201212
main17565-28010i200908-201212
NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-22030i200511-201212
main17565-22030i200908-201212
NO.1
main17565-31040i200908-201212
NO.2
5152
5851
5852
9050135035
main90501-35035
9050135037
main90501-35037
9090105020
main90901-05020
9090105026
main90901-05026
9155381035
main91553-81035

14 parts on this diagram · 5 diagrams in section
