WATER PUMP

0001 1 0003 1 0004 1 0005 1 0006 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i1AZFE,2AZFE..ACA3#200511-200701

sub16100-28041

main16100-28041i1AZFE,2AZFE..ACA30,33,38200701-201212

main16100-29495i2AD#..ALA3#200511-201212

sub16100-29496

main16100-39455i2GRFE..GSA33200708-200903

sub16100-39456

main16100-39456i2GRFE..GSA33200903-201212

main16100-39465i3ZRFAE..ZSA3#200812-200906

sub16100-39466

sub91551-80825

main16100-39466i3ZRFAE..ZSA3#200906-201212

16173PULLEY, WATER PUMP

main16173-28020i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212

main16173-31010i2GRFE..GSA33200708-201212

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28020i2AZFE..ACA33,38200511-200610

OTICS

sub16601-28021

main16601-28021i2AZFE..ACA31,33,38200610-200804

OTICS

sub16620-0H020

main16601-28041i1AZFE..ACA30200707-200801

INA

sub16601-28050

main16601-28050i1AZFE..ACA30200801-200812

INA

main16601-28050i1AZFE..ACA30200812-201212

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i2AZFE..ACA33,38200804-201212

sub16620-0H021

main16620-0R010i2AD#..ALA30200511-201212

main16620-0W110i1AZFE..ACA30200605-200608

sub16620-28070

main16620-28011i1AZFE..ACA30200511-200605

sub16620-0W110

main16620-28040i2AZFE..ACA33,38200511-200610

sub16620-28041

main16620-28041i2AZFE..ACA31,33,38200610-200804

sub16620-0H020

main16620-28070i1AZFE..ACA30200608-200703

sub16620-28012

main16620-28071i1AZFE..ACA30200707-200801

sub16620-28090

main16620-28090i1AZFE..ACA30200703-201212

main16620-31040i2GRFE..GSA33200708-201212

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

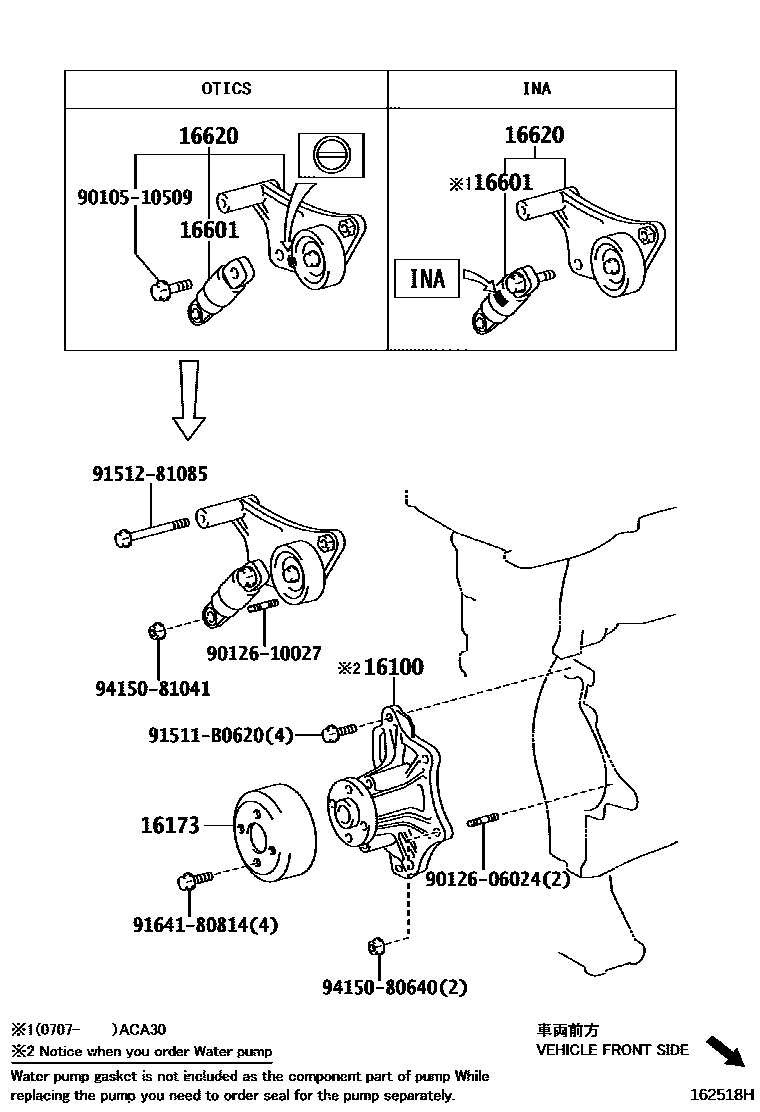

12 parts on this diagram · 5 diagrams in section
