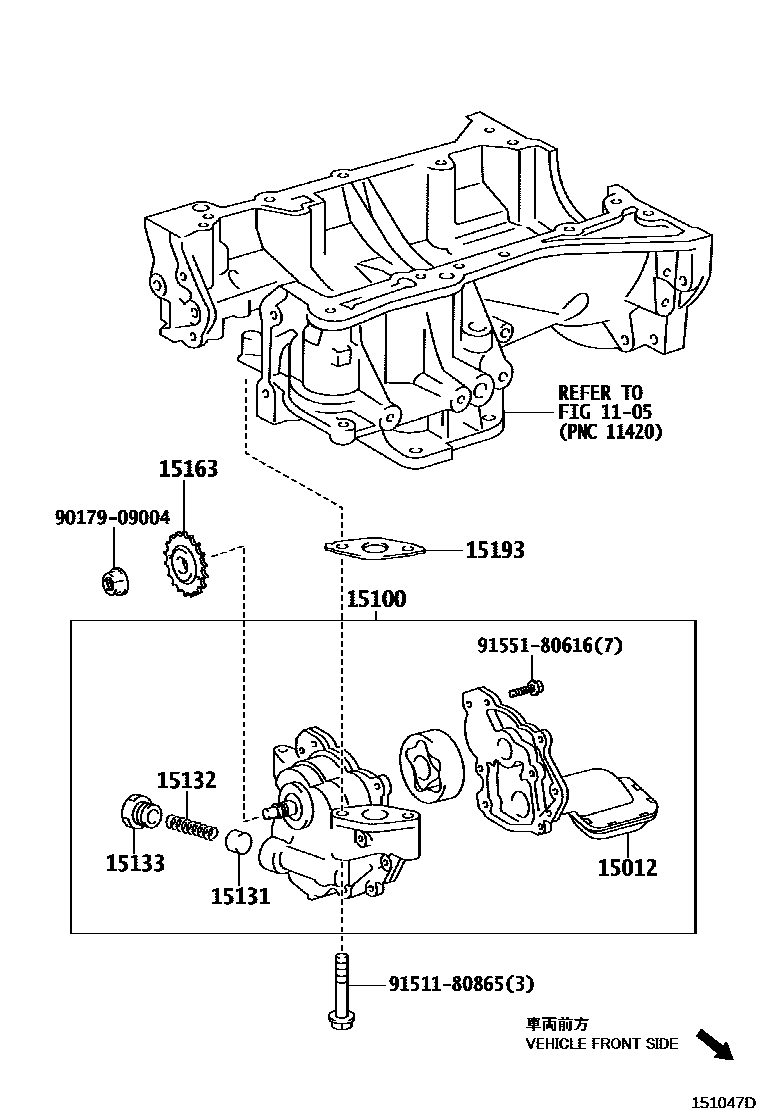

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1105

15012COVER SUB-ASSY, OIL PUMP

main15012-28030i1AZFE..ACA30¥5,100200511-201212

15100PUMP ASSY, OIL

main15100-28020i2AZFE..ACA33,38¥16,800200511-201212

main15100-28030i1AZFE..ACA30¥18,700200511-201212

main15100-37020i3ZRFAE..ZSA3#¥18,700200812-201212

sub15100-37021¥11,800

15131VALVE, OIL PUMP RELIEF

main15131-0A040i2AD#..ALA3#¥360200807-201212

main15131-17010i2GRFE..GSA33¥360200708-201212

main15131-46040i2AZFE..ACA31,33,38¥310200511-201212

15132SPRING, OIL PUMP RELIEF VALVE

main15132-26030i2AD#..ALA3#200807-201212

main15132-46020i2AZFE..ACA31,33,38¥210200511-201212

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i2GRFE..GSA33¥260200511-201212

main15133-33040i2AD#..ALA30¥260200807-201212

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i1AZFE..ACA30¥390200511-201212

15193GASKET, OIL PUMP

main15193-28010i2AZFE..ACA31,33,38¥700200511-201212

main15193-31020i2GRFE..GSA33¥220200708-201212

9017909004

main90179-09004¥90

9151180865

main91511-80865¥130

9155180616

main91551-80616¥60

11 parts on this diagram · 5 diagrams in section
