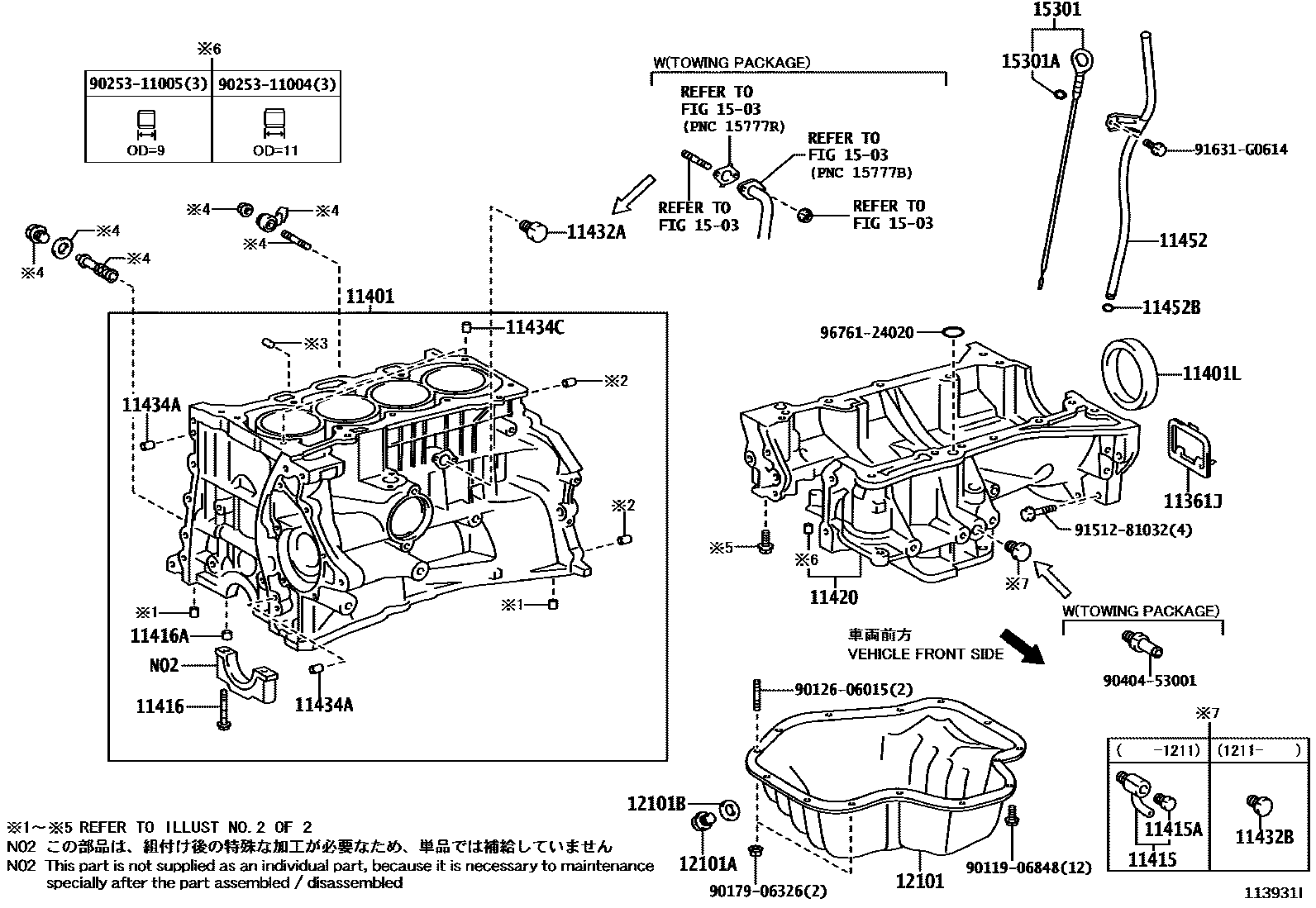

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i3ZRFAE..ZSA3#200812-201212

main11361-28010i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

main11361-31060i2GRFE..GSA33200708-201212

11401BLOCK SUB-ASSY, CYLINDER

main11401-80718i2GRFE..GSA33200708-200804

sub11401-80774

main11401-80774i2GRFE..GSA33200805-201210

sub11401-80825

main11401-80800i2GRFE..GSA33201210-201212

sub11401-80814

main11410-29315i1AZFE..ACA30200511-200608

sub11410-29316

main11410-29316i1AZFE..ACA30200608-201212

main11410-29345i2AZFE..ACA33,38200511-201212

sub11410-29346

main11410-29345i2AZFE..ACA31,33,38200801-200812

*195

sub11410-29346

main11410-29355i2AD#..ALA30200511-200801

sub11410-29395

main11410-29395i2AD#..ALA30200801-200808

sub11410-29405

sub11410-29415

main11410-29415i2AD#..ALA3#200808-201204

sub11410-29416

main11410-29416i2AD#..ALA3#201204-201212

sub11410-09416

main11410-39035i3ZRFAE..ZSA3#200812-201212

sub11410-39036

11401LSEAL, ENGINE REAR OIL

main90311-76002i3ZRFAE..ZSA3#200812-201212

main90311-89003i1AZFE,2AZFE..ACA3#200511-201204

sub90311-89007

main90311-89007i1AZFE,2AZFE..ACA3#201204-201212

sub90311-89010

main90311-90009i2AD#..ALA30200807-200809

main90311-90009i2AD#..ALA30200809-201212

(J)

main90311-W0006i2AD#..ALA30200511-200807

sub90311-W0010

main90311-W0010i2AD#..ALA3#200809-201212

(L)

sub90311-W0020

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-52001i2GRFE..GSA33201208-201212

LH,TYPE A:REF.ILL.

main90910-09075i2AD#..ALA30200511-200704

sub90910-09129

main90910-09120i1AZFE,2AZFE..ACA30,33,38..EUR,GCC,GEN200511-201211

main90910-09120i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812

WITH(TOWING PACKAGE),*195

main90910-09129i2GRFE..GSA33200704-201208

main90910-09129i2GRFE..GSA33201208-201212

RH

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i2AZFE..ACA38;2AZFE..ACA33..LHD..X;2AZFE..ACA33..G..GEN200511-201212

main90910-09087i2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30200511-200812

WITH(TOWING PACKAGE),*195

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02124i1AZFE,2AZFE..ACA30,33,38200511-201212

sub90910-02206

main90910-02154i2GRFE..GSA33200708-201212

main90910-02157i2AD#..ALA3#200511-201212

main90910-02163i3ZRFAE..ZSA3#200812-201212

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i1AZFE,2AZFE..ACA30,33,38200511-201212

main90253-13017i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200603-200811

(J)

main90253-A0008i2AZFE..ACA31,33..G..(EUR,GCC)200609-200811

(L)

sub90253-13017

11420CRANKCASE ASSY, STIFFENING

main11420-0H050i2AZFE..ACA31,33,38200606-201010

(L)

sub11420-0H051

main11420-0H051i2AZFE..ACA33,38201010-201212

(L)

main11420-28020i2AZFE..ACA31,33,38200606-201010

(J)

sub11420-28021

main11420-28020i2AZFE..ACA33,38200511-200606

sub11420-28021

main11420-28021i2AZFE..ACA33,38201010-201212

(J)

main11420-37020i3ZRFAE..ZSA3#200812-201212

main11421-28020i1AZFE..ACA30200511-201212

main11421-28031i1AZFE..ACA30200610-200901

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i3ZRFAE..ZSA3#201002-201212

NO.2

main90345-52001i2AZFE..ACA38;2AZFE..ACA33..LHD..X;2AZFE..ACA33..G..GEN200511-201212

main90345-52001i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812

WITH(TOWING PACKAGE),*195

main90345-53006i3ZRFAE..ZSA3#200812-201212

NO.1

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53006i1AZFE..ACA30..5F201211-201212

WITH(TOWING PACKAGE)

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i3ZRFAE..ZSA3#200708-201212

L=12,OD=4.0

main90250-08120i2AD#..ALA30200511-201212

L=18,OD=8,NO.1

main90250-08120i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

L=18,OD=8

main90250-10030i2AD#..ALA3#200511-201212

L=36,OD=10,NO.2

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097i3ZRFAE..ZSA3#200812-201212

L=12,OD=4.0

main90250-08074i2AD#..ALA3#200511-201212

L=15,OD=8

main90250-08120i2GRFE..GSA33200708-201212

L=18,OD=8

main90253-14003i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212

L=12,OD=14

11452GUIDE, OIL LEVEL GAGE

main11452-26020i2AD#..ALA30200511-200812

main11452-26030i2AD#..ALA3#200812-201111

main11452-26060i2AD#..ALA3#201111-201212

main11452-28040i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212

main11452-31060i2GRFE..GSA33200708-201212

main11452-37020i3ZRFAE..ZSA3#200812-201212

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFE..GSA33200708-201212

main96721-19010i2AD#..ALA3#..BTYPE;1AZFE,2AZFE..ACA30,33,38200511-201212

main96741-19010i2AD#..ALA3#200511-200909

12101PAN SUB-ASSY, OIL

main12101-28050i1AZFE..ACA30200511-201212

main12101-28060i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

main12101-31121i2GRFE..GSA33200708-201212

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1AZFE,2AZFE,2AD#..ACA30,33,38,ALA3#200511-201212

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-26020i2AD#..ALA30200511-200812

main15301-26070i2AD#..ALA3#200812-201212

main15301-28020i1AZFE..ACA30200511-201212

main15301-28030i2AZFE..ACA31,33..G..(EUR,GCC)200511-201212

sub15301-28031

main15301-31090i2GRFE..GSA33200708-201212

main15301-37020i3ZRFAE..ZSA3#200812-201206

main15301-37040i3ZRFAE..ZSA3#201206-201212

sub15301-37020

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2AZFE..ACA31,33..G..(EUR,GCC)200511-200812

9011906848

main90119-06848

9012606015

main90126-06015

9017906326

main90179-06326

9025311004

main90253-11004

9025311005

main90253-11005

9040453001

main90404-53001

9151281032

main91512-81032

91631G0614

main91631-G0614

9676124020

main96761-24020

29 parts on this diagram · 10 diagrams in section
