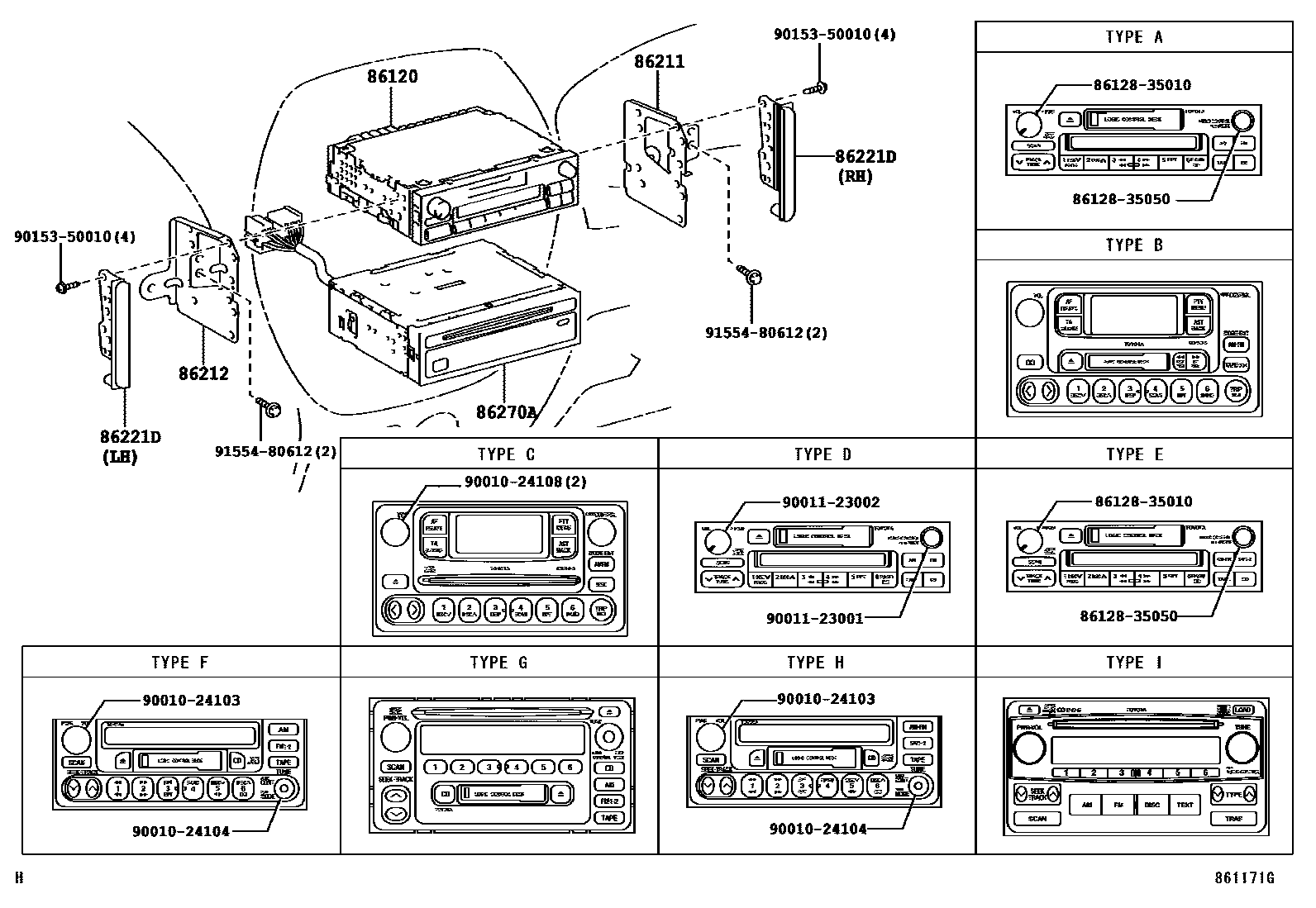

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1NOISE FILTER

86120RECEIVER ASSY, RADIO

main86120-2B610iACA2#..GCC,GEN200008-200108

FUJITSU TEN,ID=17411,TYPE D:REFER TO ILLUSTRATION

main86120-2B620iACA2#..GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR200005-200108

MATSUSHITA,ID=57410,TYPE A:REFER TO ILLUSTRATION

main86120-33440iACA2#..GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR200108-200307

MATSUSHITA,ID=57413,TYPE F:REFER TO ILLUSTRATION & AM/FM (AM=10KHZ STEP)

main86120-33450iACA21..GEN;ACA20,21,CLA2#,ZCA2#..LHD..EUR200108-200307

FUJITSU TEN,ID=17808,TYPE G:REFER TO ILLUSTRATION & AM/FM (AM=10KHZ STEP)

main86120-33460iACA2#..GCC,GEN200108-200307

MATSUSHITA,ID=57412,TYPE F:REFER TO ILLUSTRATION & AM/FM (AM=9KHZ STEP)

main86120-33470iACA20,21..GCC,GEN200108-200307

FUJITSU TEN,ID=17809,TYPE G:REFER TO ILLUSTRATION & AM/FM (AM=9KHZ STEP)

main86120-42050iACA20,21,CLA2#,ZCA2#..EUR200005-200412

FUJITSU TEN,ID=18302,TYPE B:REFER TO ILLUSTRATION

main86120-42051iACA20,21,CLA2#,ZCA2#..EUR200412

FUJITSU TEN,ID=18306

main86120-42060iACA2#,ZCA2#..EUR200005-200105

MATSUSHITA, ID=58801,TYPE C:REFER TO ILLUSTRATION

sub86120-42061

main86120-42061iACA2#,CLA2#,ZCA2#..EUR200105-200307

MATSUSHITA,ID=58806,TYPE C:REFER TO ILLUSTRATION

main86120-42070iACA20,21..GCC,GEN200108-200307

MATSUSHITA,ID=57414,TYPE H:REFER TO ILLUSTRATION

main86120-42130iACA20,21,CLA2#,ZCA2#..EUR200307

MATSUSHITA, ID=58812,TYPE C:REFER TO ILLUSTRATION

main86120-60360iACA20,21..GCC,GEN200008-200307

MATSUSHITA, ID=57409,TYPE E:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-42030iACA2#,CLA2#,ZCA2#200005-200307

86212BRACKET, RADIO, NO.2

main86212-42030iACA2#,CLA2#,ZCA2#200005-200307

86221DPANEL, RADIO RECEIVER

main86221-52050iACA2#,CLA2#,ZCA2#200005-200307

LH

main86221-52060iACA2#,CLA2#,ZCA2#200005-200307

RH

86270ADISC PLAYER ASSY

main86270-60050iACA2#..GCC,GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

8612835010KNOB, RADIO RECEIVER

main86128-35010

8612835050KNOB, RADIO RECEIVER

main86128-35050

9001024103

main90010-24103

9001024104

main90010-24104

9001024108

main90010-24108

9001123001

main90011-23001

9001123002

main90011-23002

9015350010

main90153-50010

9155480612

main91554-80612

14 parts on this diagram · 2 diagrams in section
