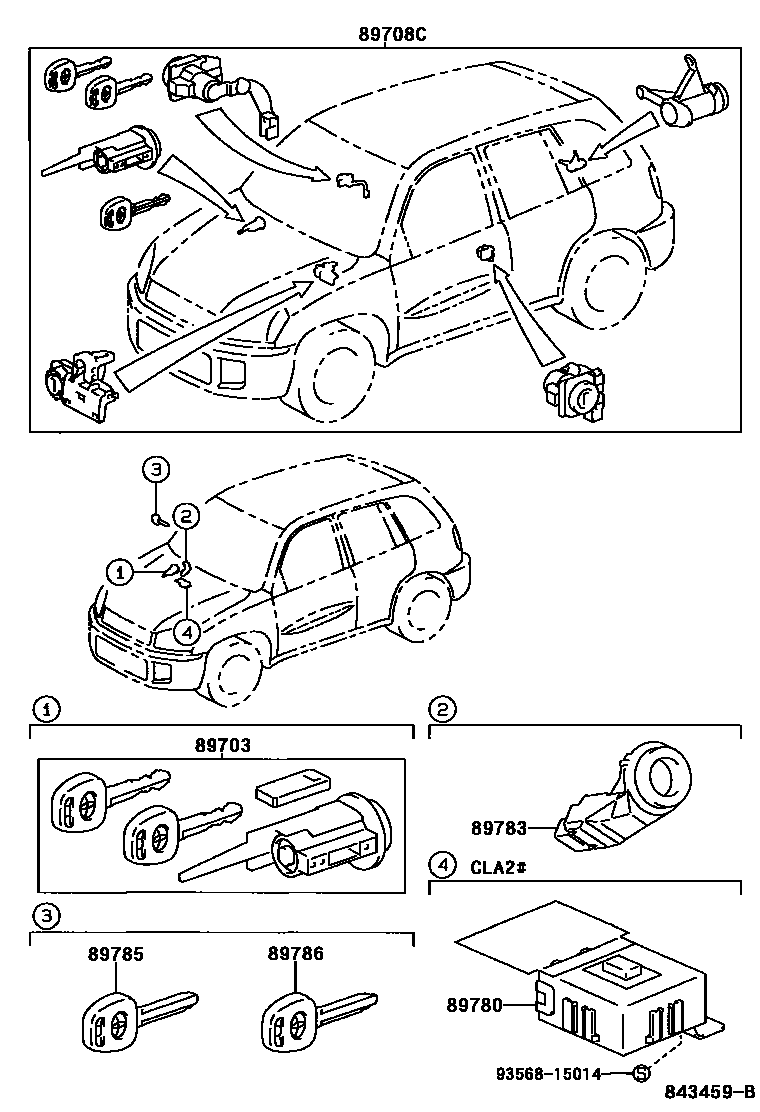

ANTI-THEFT DEVICE

0001 1W/O(KEY LESS ENTRY) 0002 1W(KEY LESS ENTRY) 0003 1W/O(KEY LESS ENTRY) 0004 1W(KEY LESS ENTRY)

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-42080iACA2#..RHD..(ARL,GEN);ACA2#,CLA2#,ZCA2#..LHD..(EUR,GCC)200005-200307

89708CCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main69005-42380iACA21,22,23..RHD..(ARL,GEN);ACA20,21,CLA2#..LHD..(EUR,GCC)200307

main89708-42010iZCA2#..LHD200005-200307

main89708-42040iACA2#..GCC;ACA2#..RHD..(ARL,GEN)200005-200307

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-42050iCLA2#..LHD200105-200307

main89780-42060iCLA2#..RHD200105-200307

main89780-42070iACA20,21,CLA2#..LHD..(EUR,GCC)200307

main89780-42080iACA2#,CLA2#..RHD..(ARL,EUR)200307

main89780-42100iACA21..RHD..GEN200307

89783AMPLIFIER, TRANSPONDER KEY

main89783-52010iACA2#..RHD;CLA2#,ZCA2#;ACA2#..LHD..(EUR,GCC)200005-200307

main89783-52040iACA21..RHD;ACA20,22,23,CLA2#;ACA21..LHD..(EUR,GCC)200307

sub89783-52041

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iACA2#..RHD..(ARL,GEN);ACA2#,CLA2#,ZCA2#..LHD..(EUR,GCC)200005-200307

main89785-60160iACA21,22,23..RHD..(ARL,GEN);ACA20,21,CLA2#..LHD..(EUR,GCC)200307

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iACA2#..RHD;CLA2#,ZCA2#;ACA2#..LHD..(EUR,GCC)200005-200307

main89786-60170iACA21..RHD;ACA20,22,23,CLA2#;ACA21..LHD..(EUR,GCC)200307

9356815014

main93568-15014

7 parts on this diagram · 4 diagrams in section
